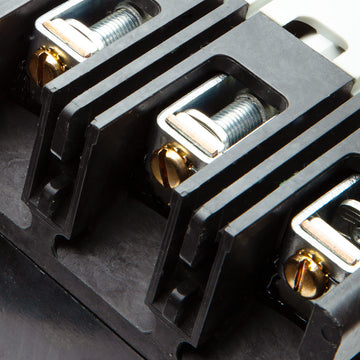

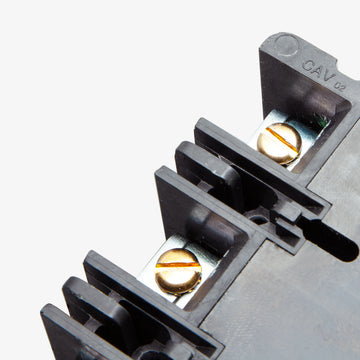

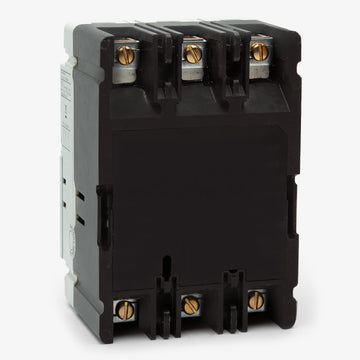

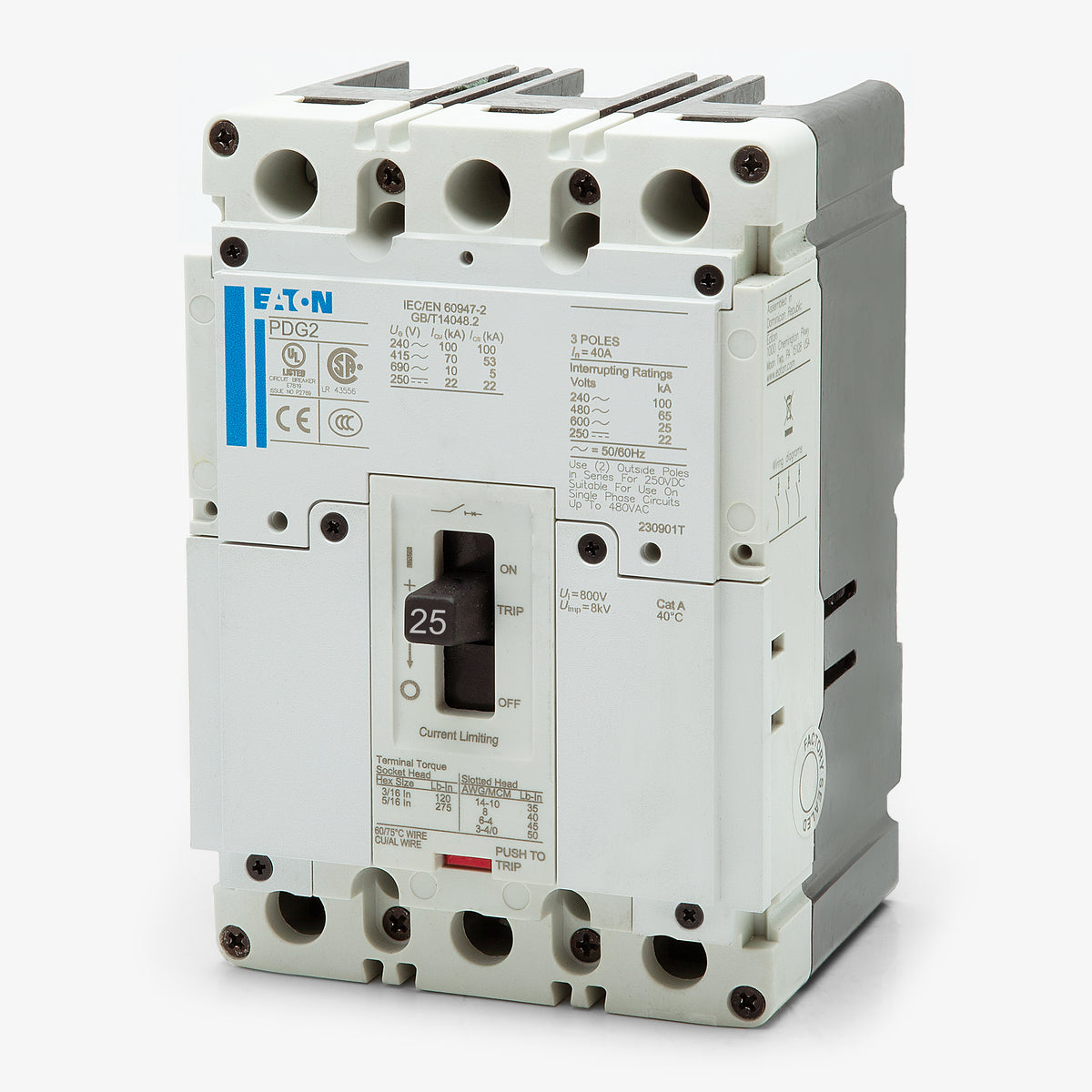

Eaton / Cutler-Hammer PDG23M0025TFFL Molded Case Circuit Breaker
- 25A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23M0025TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23M0025TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23M0025TFFL - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23M0025TFFL - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23M0025TFFL - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0030TFFL
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0020TFFL
20A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable performance for industrial applications, the Eaton PDG23M0025TFFL is a 3-pole, 25A molded case circuit breaker. As part of the Power Defense Frame 2 lineup, it handles demanding electrical loads with ease. This unit integrates seamlessly into Eaton Power Defense panelboards and switchboards. It is also an exact substitute for legacy HFD3025 breakers, making retrofits straightforward. It boasts a 65 kAIC rating at 480VAC and includes standard load-side lug terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat does the M in the catalog number PDG23M0025TFFL indicate?
It designates a medium interrupting rating, allowing the breaker to safely clear faults up to 65kAIC at 480VAC.
Which equipment enclosures are compatible with this Frame 2 circuit breaker?
It is designed specifically to mount into Eaton Power Defense panelboards, switchboards, and standard industrial enclosures.
What wire size range is supported by the standard lugs on the PDG23M0025TFFL?
The factory-installed bolt-on lugs accept conductor sizes from 14 AWG to 1/0 AWG.
How does the thermal magnetic trip unit function on this breaker?
The fixed thermal and fixed magnetic elements provide standard long-time and instantaneous (LI) overcurrent protection without requiring field adjustments.
Is this Power Defense breaker rated for direct current applications?
Yes, it is tested and rated for use in 250VDC systems with a maximum interrupting capacity of 22kAIC.
