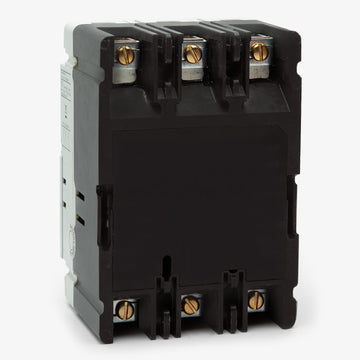

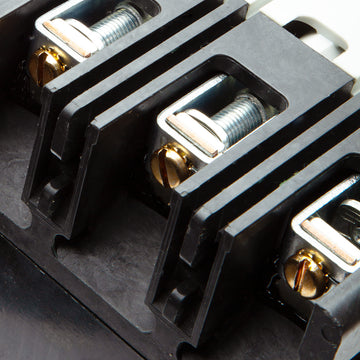

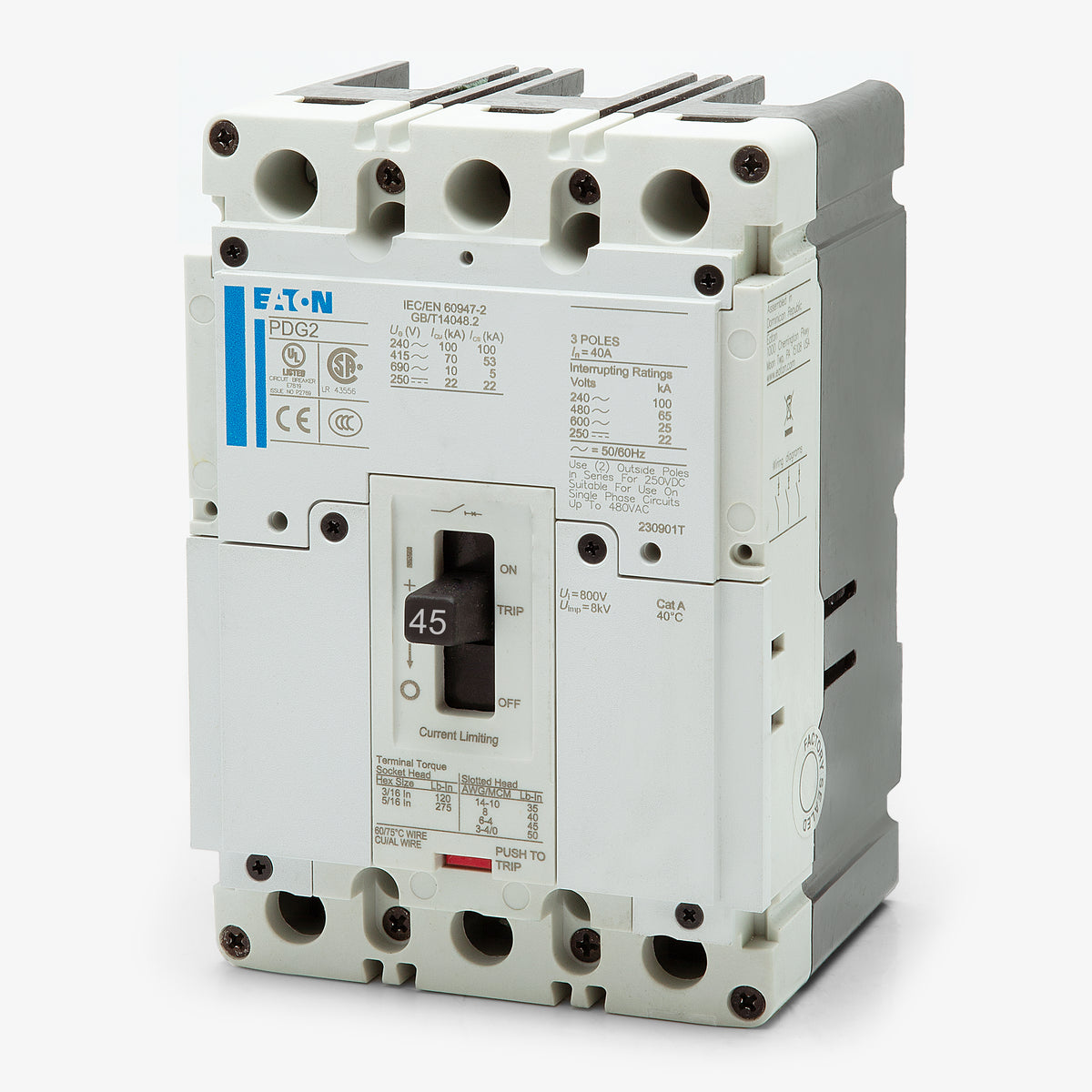

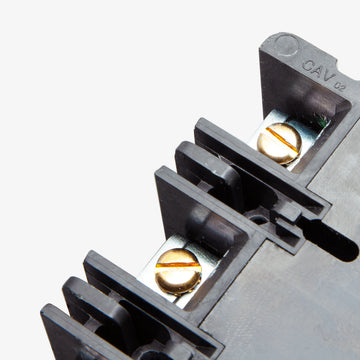

Eaton/Cutler-Hammer PDG23M0045TFFL Circuit Breaker
- 45
- 3 Pole
- Panel
Eaton/Cutler-Hammer
PDG23M0045TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23M0045TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23M0045TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23M0045TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 45 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23M0045TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 45 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0050TFFL
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFL
40A 3 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer PDG23M0045TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23M0045TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0045TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 45 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhich panelboards are compatible with the PDG23M0045TFFL circuit breaker?
This Frame 2 Power Defense breaker is designed for use in Eaton Power Defense panelboards and legacy Eaton Series C panelboards. When retrofitting into older legacy assemblies, UL requires the installation of new Pow-R-Line Xpert connector kits.
Are legacy Series C accessories compatible with this Power Defense breaker?
While Frame 2 Power Defense breakers can share terminal lugs with legacy Series C F-frame breakers, most external accessories are not interchangeable. Items like handle mechanisms and covers will not fit due to differences in the breaker faceplates.
How do I read the PDG23M0045TFFL catalog number?
PDG indicates a Power Defense Globally rated breaker. The 2 is for Frame 2, 3 is for 3-pole, M denotes the 65kAIC at 480VAC interrupting rating, 0045 is the 45 Amp rating, TFF stands for a fixed thermal and fixed magnetic trip unit, and L specifies standard lug terminals.
Is the trip unit on the PDG23M0045TFFL adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials for field calibration.
How is the PDG23M0045TFFL installed in a panelboard?
This is a bolt-on molded case circuit breaker. It requires a bolted connection directly to the panelboard bus and cannot be used in plug-on or draw-out applications.
