Eaton / Cutler-Hammer PDG23M0060B2NL Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Quantity

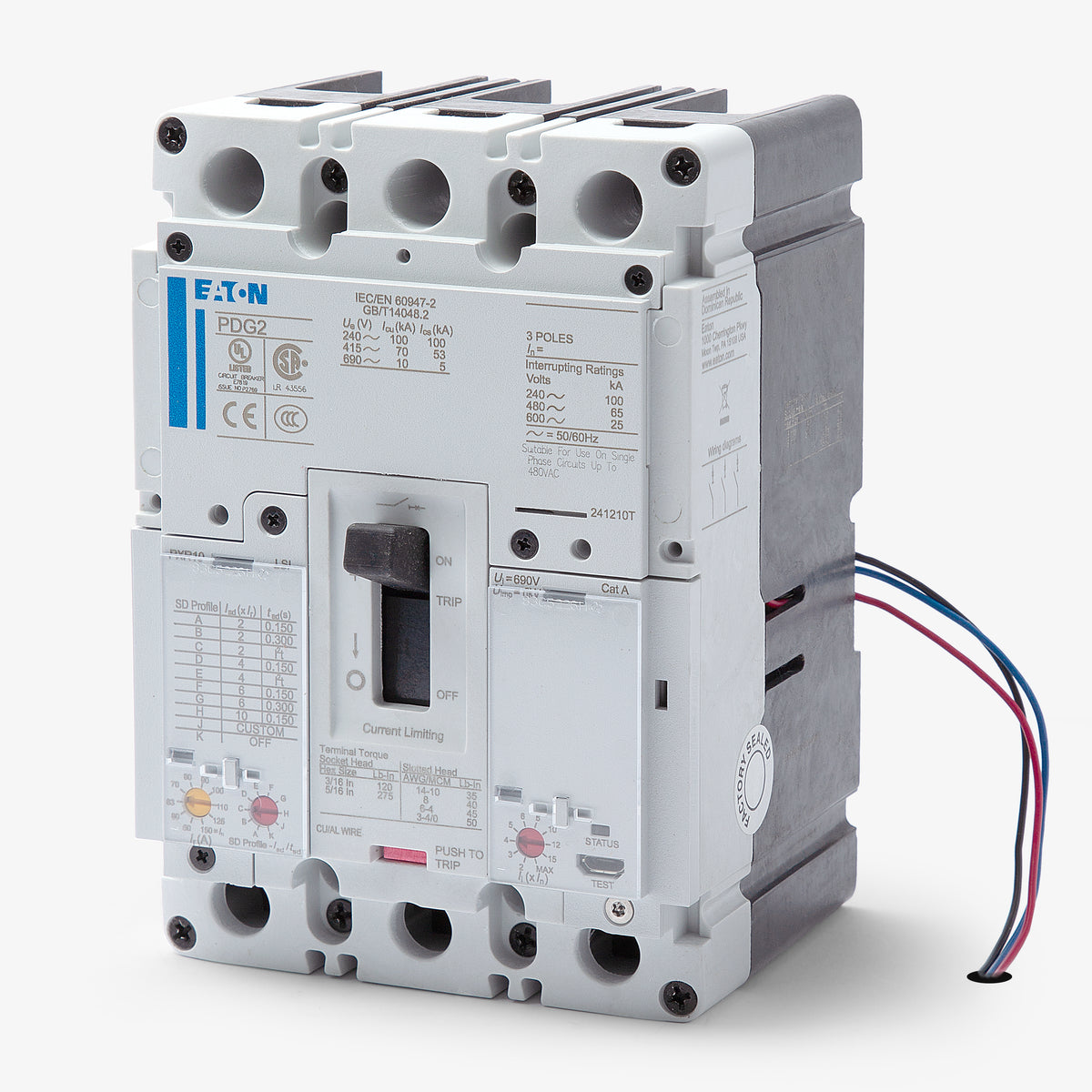

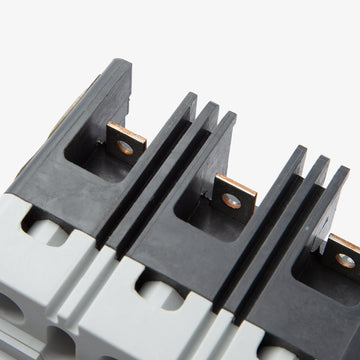

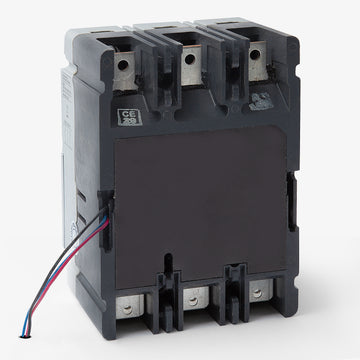

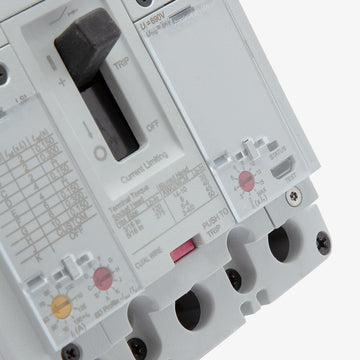

Eaton / Cutler-Hammer PDG23M0060B2NL - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the globally rated Power Defense family, this 60-amp molded case circuit breaker delivers advanced LSI protection for commercial facilities. The integrated PXR10 electronic trip unit allows precise adjustments for long-time, short-time, and instantaneous settings. Designed for panel mount configurations, it fits into Eaton switchboards and enclosures. This unit includes standard load terminals and serves as a modern substitute for discontinued HFDE3060 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 24-60A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Standard Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Global Rated, RoHS Compliant, PXR10, Breaker Health, Load Alarms |
Product FAQs
6 answersHow do you adjust the trip settings on the PDG23M0060B2NL?
The breaker is equipped with a PXR 10 electronic trip unit, which allows you to configure the LSI (Long-Time, Short-Time, and Instantaneous) settings directly on the front of the breaker to match your specific application requirements.
Does the PDG23M0060B2NL include ground fault protection?
No. The included PXR 10 LSI trip unit provides Long-Time, Short-Time, and Instantaneous protection, but it does not feature integrated ground fault monitoring or tripping.
What type of enclosures or panels accept the PDG23M0060B2NL?
This Frame 2 breaker is engineered specifically for Eaton Power Defense panelboards, switchboards, and compatible enclosures.
Does the PDG23M0060B2NL include lugs on both the line and load sides?
No, this breaker is configured with standard load-side lugs only. The line side is designed for a bolt-on connection directly to the panelboard bus.
What does the "M" in the PDG23M0060B2NL part number signify?
In the Eaton Power Defense catalog numbering system, the "M" indicates the breaker's interrupting capacity, which is rated for 65kAIC at 480VAC.
What does the "B2" in the PDG23M0060B2NL catalog number indicate?
The "B2" designates the trip unit type. For this breaker, it specifies a PXR 10 electronic trip unit with LSI (Long-Time, Short-Time, and Instantaneous) protection.
