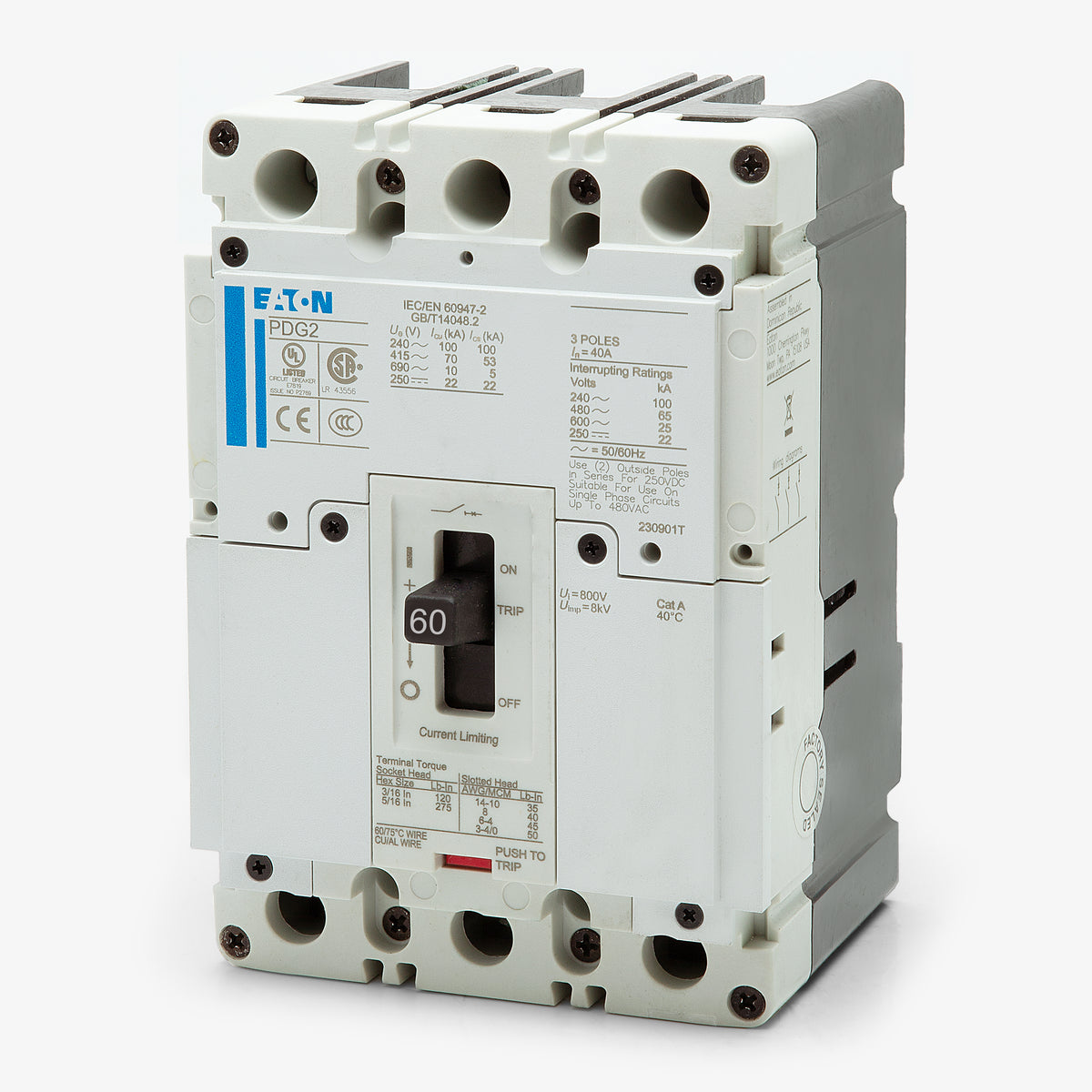

Eaton / Cutler-Hammer PDG23M0060TFFL Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23M0060TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23M0060TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23M0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23M0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Global Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23M0060TFFL - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Global Rated, RoHS Compliant |
Similar Items
Eaton/Cutler-HammerPDG23M0070TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0050TFFL
50A 3 Pole Molded Case Circuit Breaker
Description
Providing essential circuit protection, this 60A Power Defense MCCB is engineered for heavy-duty commercial use. The three-pole device utilizes proven thermal-magnetic technology to safeguard electrical infrastructure. Designed to fit Eaton panelboards, this Frame 2 breaker is an ideal upgrade path for legacy systems, replacing the HFD3060. It includes load-side lugs for secure connections. Rated for 65kAIC at 480VAC, it delivers exceptional fault tolerance and current-limiting performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Global Rated, RoHS Compliant |
Product FAQs
8 answersWhat enclosures or panelboards are compatible with the Eaton PDG23M0060TFFL?
This breaker is engineered specifically for Eaton Power Defense panelboards, industrial switchboards, and custom enclosures designed to accept Frame 2 bolt-on molded case circuit breakers.
What do the trip settings mean on this Power Defense breaker?
The PDG23M0060TFFL utilizes a thermal-magnetic trip unit with fixed thermal (long-time) and fixed magnetic (instantaneous) protection. Because both elements are pre-calibrated at the factory, they cannot be field adjusted.
What wire sizes are accepted by the terminals on the PDG23M0060TFFL?

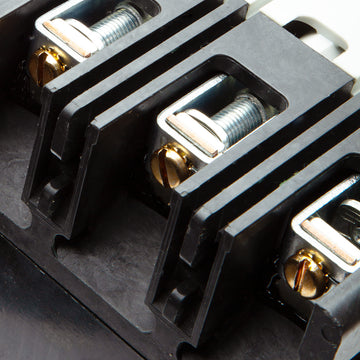

The factory-installed line and load lugs accept either aluminum or copper conductors ranging in size from 14 AWG up to 1/0 AWG.
Are the mounting lugs included with this circuit breaker?
Yes, the "L" suffix at the end of the catalog number signifies that the standard line and load wire terminals (lugs) are included and factory installed.
How does the Power Defense series compare to older Eaton lines like Series C or Series G?
The Power Defense series is Eaton's globally rated modern replacement platform for older legacy lines like Series C and Series G. Because the physical dimensions and accessory profiles differ, replacing a legacy breaker with a Power Defense model may require hardware adjustments or a retrofit kit.
How is the PDG23M0060TFFL mounted inside an electrical panel?
This unit features a bolt-on panel mount design. It secures directly to the panelboard or switchboard bus structure using standard mounting hardware for a permanent, robust mechanical and electrical connection.
Can this 3-pole breaker be utilized in a direct current (DC) system?
Yes, alongside its standard AC ratings, this molded case circuit breaker is safely rated for use in DC applications up to 250VDC, offering an interrupting capacity of 22kA.
What is the maximum short-circuit interrupting capacity for this breaker?
The interrupting rating scales depending on your system voltage. It provides 65kA of protection in 480VAC systems, up to 100kA at 240VAC, and 25kA at 600VAC.
