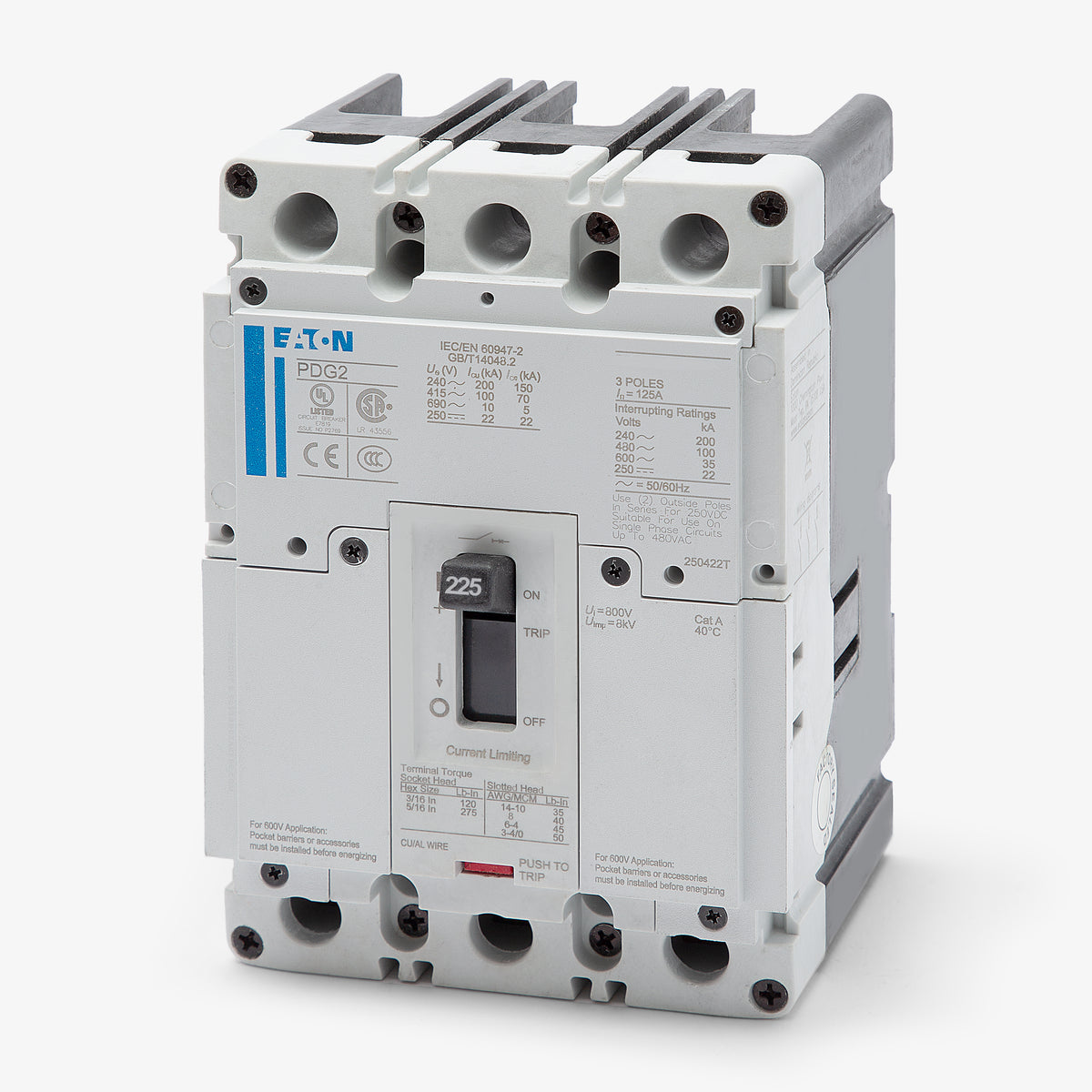

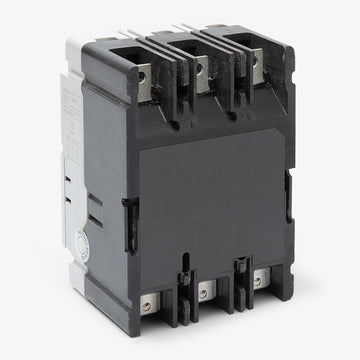

Eaton / Cutler-Hammer PDG23P0225TFFL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Panel Mount
Quantity
Eaton / Cutler-Hammer PDG23P0225TFFL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Constructed for demanding industrial environments, this 225A molded case circuit breaker delivers consistent long-time and instantaneous trip functions. It integrates perfectly with Eaton Power Defense enclosures and serves as an exact substitute for legacy FDC3225 units when paired with the appropriate Series C adapter kit. The PDG23P0225TFFL boasts a powerful 100kAIC rating at 480V. It comes equipped with standard load terminals and features a current-limiting design.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

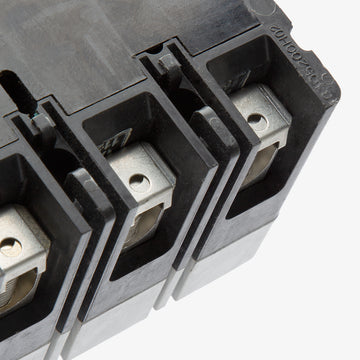

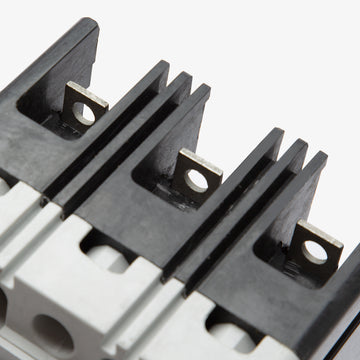

| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards and Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, High Interrupting Capacity |
Product FAQs
8 answersCan this Power Defense Frame 2 breaker replace older Series C F-Frame breakers?
Yes, Eaton Power Defense Frame 2 breakers are the modern replacements for legacy Series C F-Frame (such as FD, HFD, and FDC) and Series G EG-Frame breakers. Depending on your existing panelboard, a retrofit adapter kit may be required for proper mounting.
What does the "P" in the PDG23P0225TFFL catalog number indicate?
In Eaton Power Defense nomenclature, the "P" designates the breaker interrupting capacity tier. For this Frame 2 breaker, it signifies a high interrupting rating of 100kAIC at 480VAC.
What do the letters "TFF" signify in the part number?
The "TFF" indicates the trip unit configuration. It stands for a Thermal Magnetic trip unit with Fixed thermal and Fixed magnetic settings, meaning the overcurrent and instantaneous short circuit trip points are factory set and not field adjustable.
Which panelboards are compatible with this circuit breaker?
This breaker is designed for seamless integration into modern Eaton Pow-R-Line panelboards (such as Pow-R-Line 1a through 4), switchboards, and dedicated Power Defense enclosures.
What are the standard safety procedures for installing this breaker?
Installation must be performed by a licensed electrician. Always de-energize the panelboard, verify no voltage is present with a properly rated meter, and follow all OSHA and NFPA 70E lockout and tagout procedures before mounting or wiring the breaker.
Are terminal shields required for this breaker?
Terminal shields may be required depending on the specific enclosure and local electrical codes to maintain proper electrical clearances and prevent accidental contact. Always refer to the Eaton panelboard instructions to confirm if extended lug shields are necessary for your application.
How does the thermal magnetic trip unit operate in this breaker?
The thermal component provides delayed tripping for continuous overloads, while the magnetic component provides instantaneous tripping to clear severe short circuits. Both the long time and instantaneous trip points are fixed at the factory.
Can this breaker be used in systems outside the United States?
Yes, the Power Defense series is a globally rated platform. It carries certifications for UL, CSA, IEC, and CCC standards, making it suitable for international and multi-code projects.
