Eaton / Cutler-Hammer PDG33F0225TFAJ - 225A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU PDG33F0225TFAJ
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer PDG33F0225TFAJ - 225A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU PDG33F0225TFAJ
Select Item Condition
Earn 2784 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer PDG33F0225TFAJ - 225A 3 Pole Molded Case Circuit Breaker

New

$2784.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

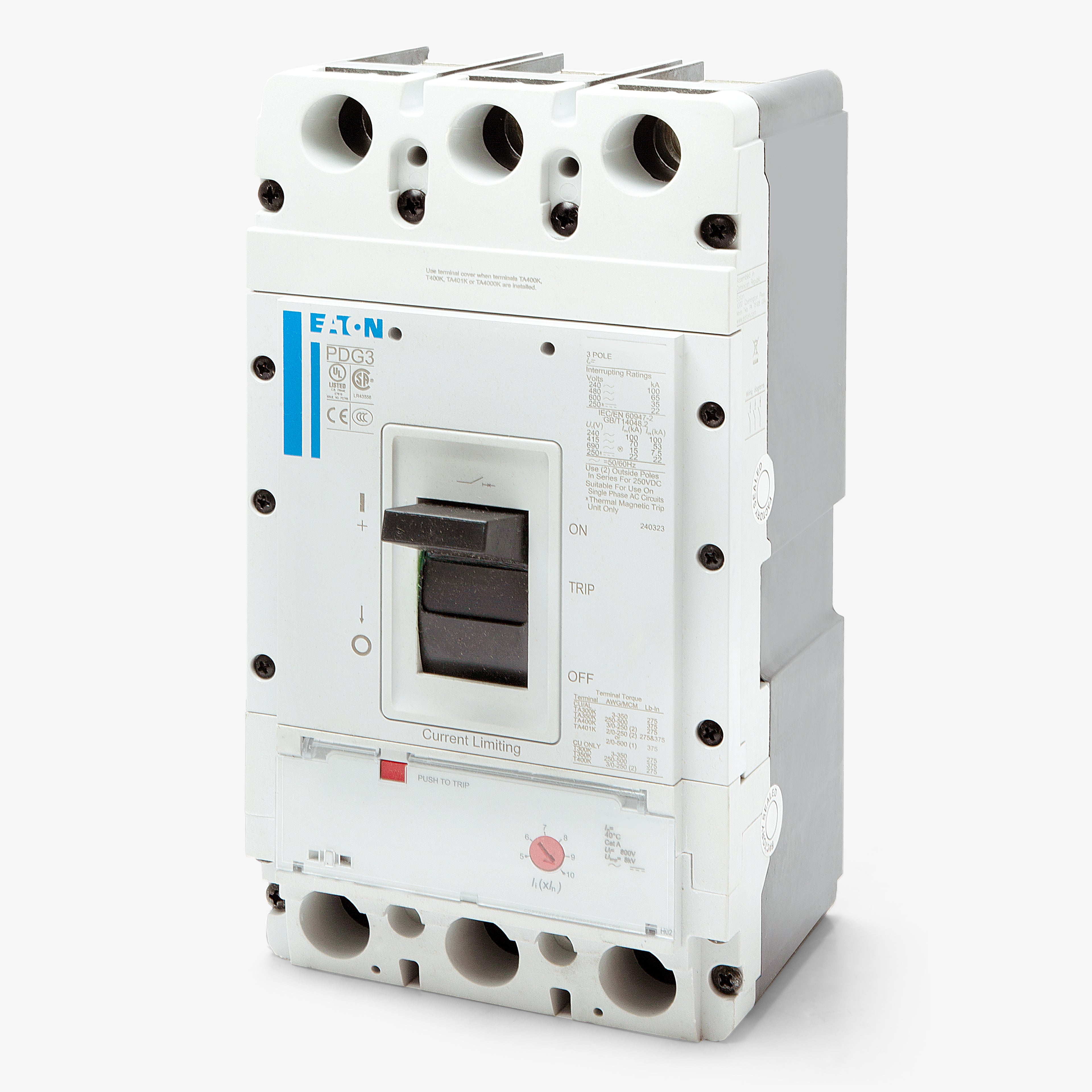

Delivering reliable LI protection, the PDG33F0225TFAJ is a 225A, 3-pole molded case circuit breaker from Eaton. It is designed to handle demanding industrial loads while maintaining strict safety standards. The breaker installs into Power Defense Frame 3 panelboards. Facility managers can use this model to functionally replace the older JGE3225FAG, keeping in mind the increased dimensions of the PDG3 series.

Specifications

Brand Eaton / Cutler-Hammer
Series PDG3
Amperage 225A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
Mounting Style Panel Mount
Terminal Type Lugs
For Use With Eaton Power Defense Frame 3 Panelboards, Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic

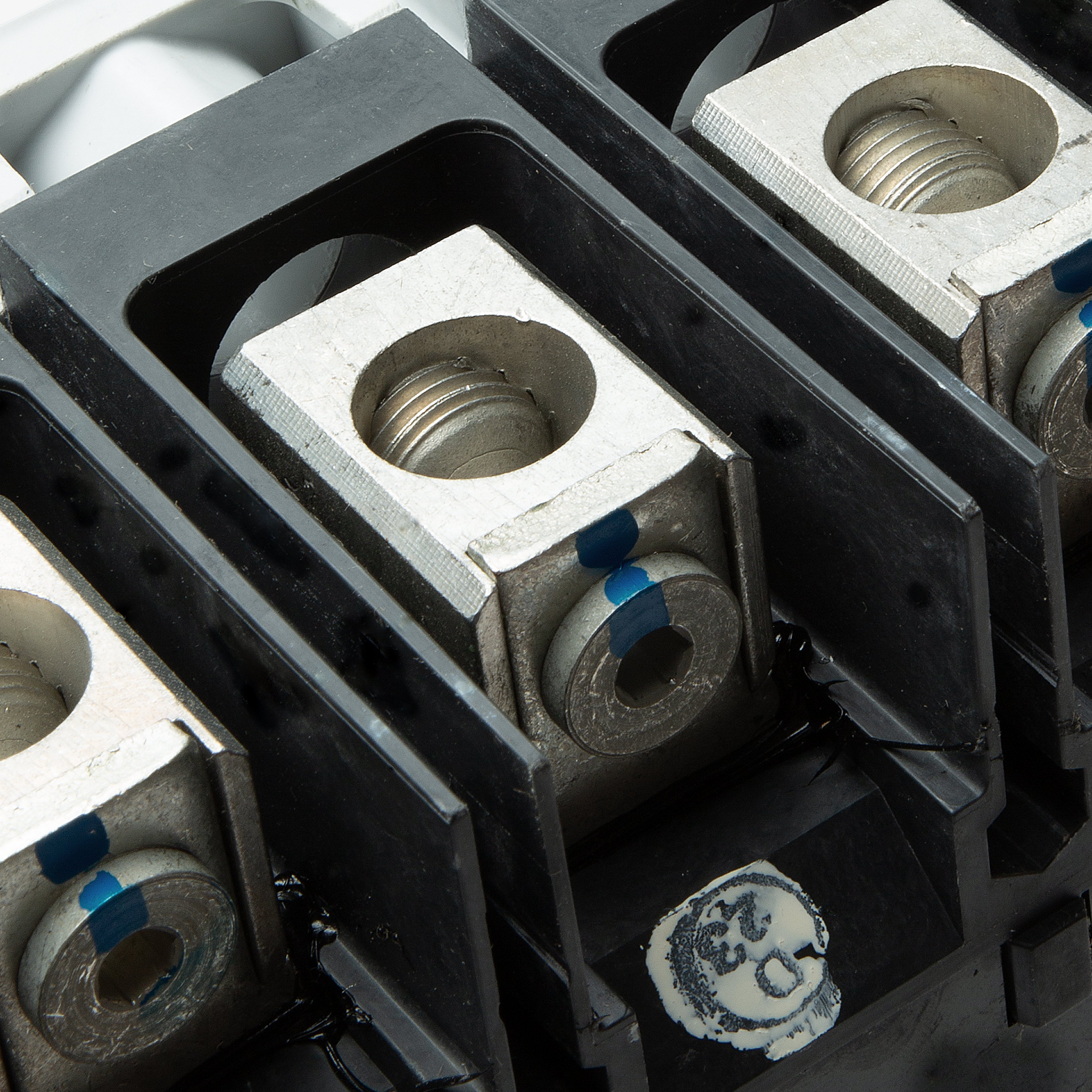

Wire Gauge (1) 3 AWG - 350 kcmil (Al/Cu)
Max Wire 350 kcmil
Min Wire 3 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle
Accessories Standard Line and Load Terminals (PDG3X3TA300)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CCC, CE, CSA, IEC, UL, RoHS
Temp Rating -20C to 70C
Construction Features RoHS Compliant
