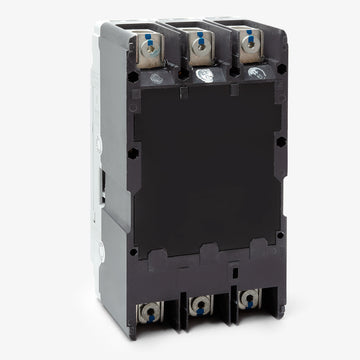

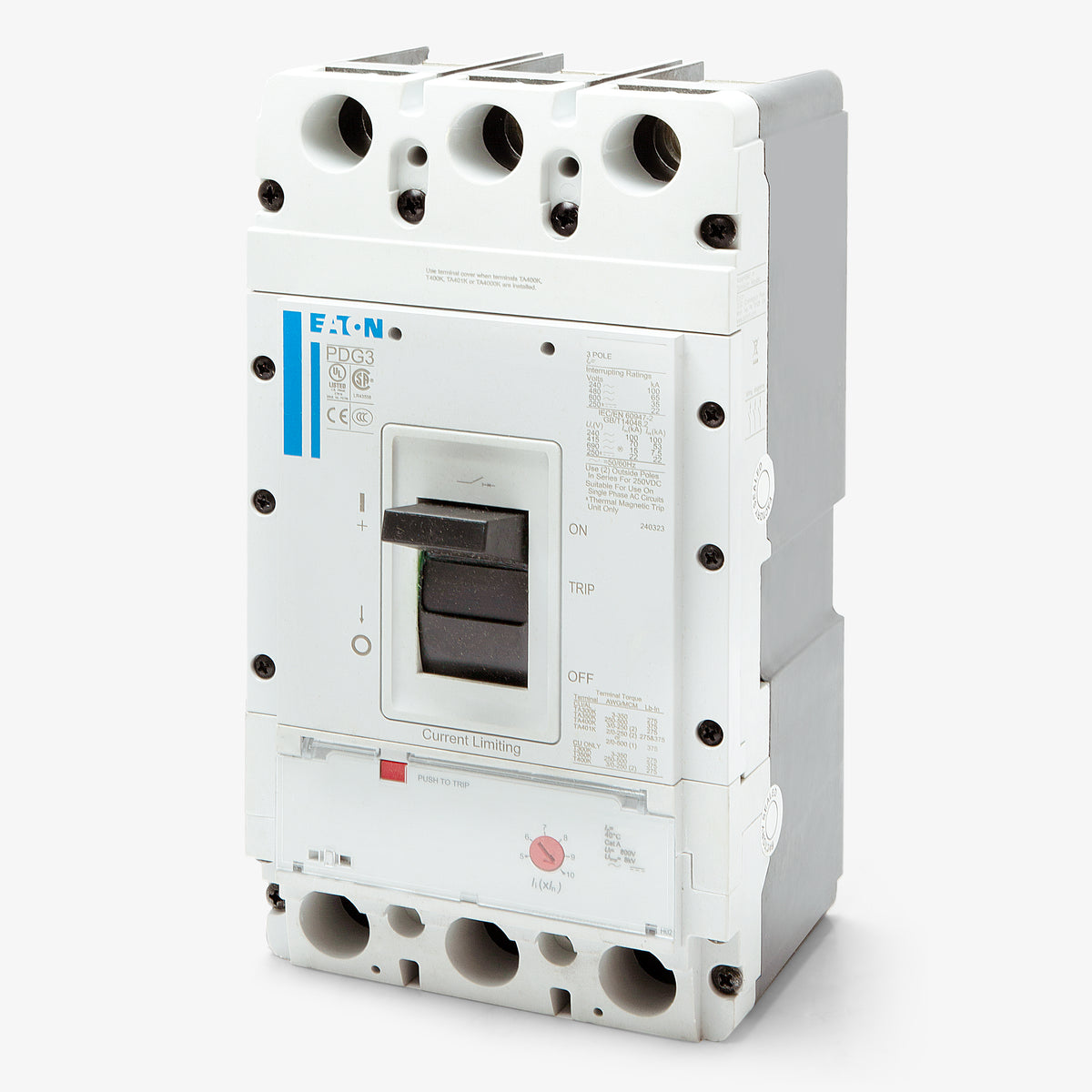

Eaton / Cutler-Hammer PDG33G0350TFAJ Molded Case Circuit Breaker
- 350A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG33G0350TFAJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG33G0350TFAJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG33G0350TFAJ - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG33G0400TFAJ
400A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33M0400TFAJ
400A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33G0300TFAJ
300A 3 Pole Molded Case Circuit Breaker
Description
A robust solution for heavy-duty distribution, the Eaton PDG33G0350TFAJ is a 350A, three-pole molded case circuit breaker. As part of the Power Defense Frame 3 lineup, it delivers globally rated performance. This panel mount breaker comes factory-equipped with standard terminals for straightforward wiring. It serves as a seamless replacement for discontinued LD3350 and LGE3350FAW models. It utilizes a thermal-magnetic trip unit with adjustable magnetic settings, providing 35kAIC at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG3 |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, Interphase Barriers |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG3X3TA350) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, UL, RoHS |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersIs the Power Defense PDG33G0350TFAJ a replacement for older Eaton breakers?
Yes, the Power Defense series is Eaton's globally rated platform that supersedes legacy Cutler-Hammer Series C and Series G breakers. When upgrading, verify panelboard mounting and dimensions, as the Frame 3 footprint may differ from older legacy frames.
What interrupting capacity does the G rating in PDG33G0350TFAJ represent?
In the Eaton Power Defense nomenclature, the G rating for a Frame 3 breaker designates a maximum interrupting capacity of 35kAIC at 480VAC and 65kAIC at 240VAC.
How is the trip unit configured on the PDG33G0350TFAJ?
This breaker uses a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection. This configuration is denoted by the TF in the catalog number.

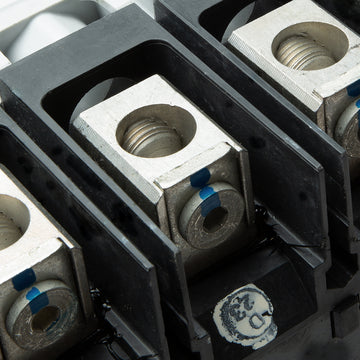

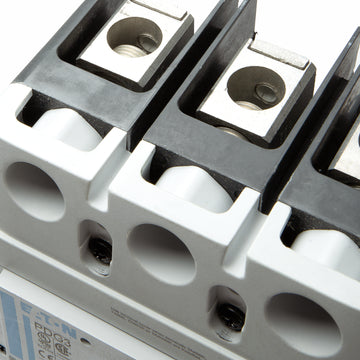

Are the standard lugs on the PDG33G0350TFAJ rated for both aluminum and copper wire?
Yes, the factory-installed feed-thru lugs on this breaker are dual-rated for both aluminum and copper (Al/Cu) conductors. They accept wire sizes ranging from 250 kcmil to 500 kcmil.
Can the PDG33G0350TFAJ be used in DC electrical systems?
Yes, in addition to its standard AC ratings, this thermal-magnetic breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC.
What types of Eaton equipment are compatible with this Frame 3 breaker?
The PDG33G0350TFAJ is engineered specifically for integration into Eaton Power Defense panelboards, switchboards, and motor control centers.
