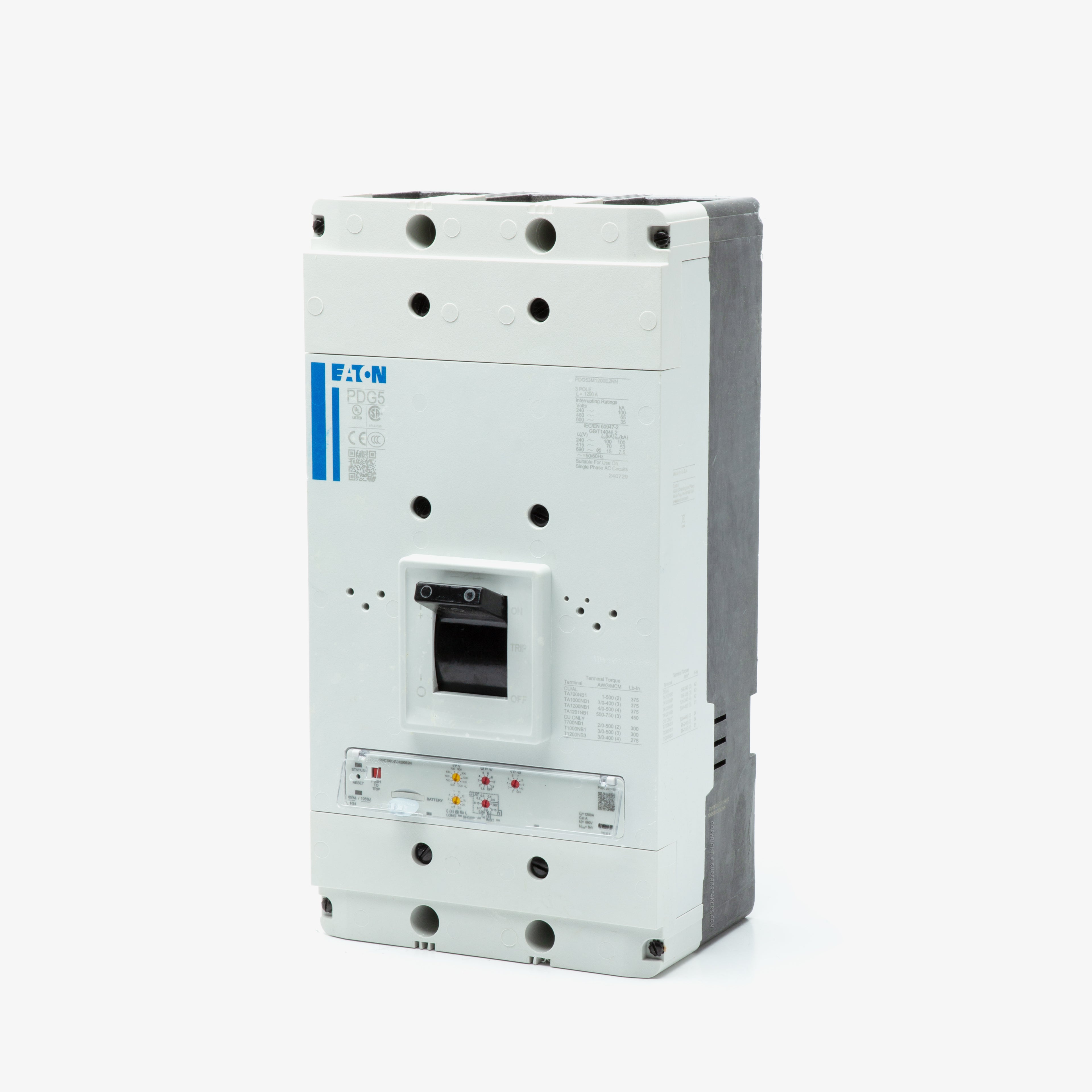

Eaton PDG53M1200E2NN Circuit Breaker
- 1200A
- 3 Pole
- Bolt-On
Quantity
Eaton PDG53M1200E2NN 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton PDG53M1200E2NN 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton |
|---|---|
| Series | PDG5 |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | 5 |
|---|---|

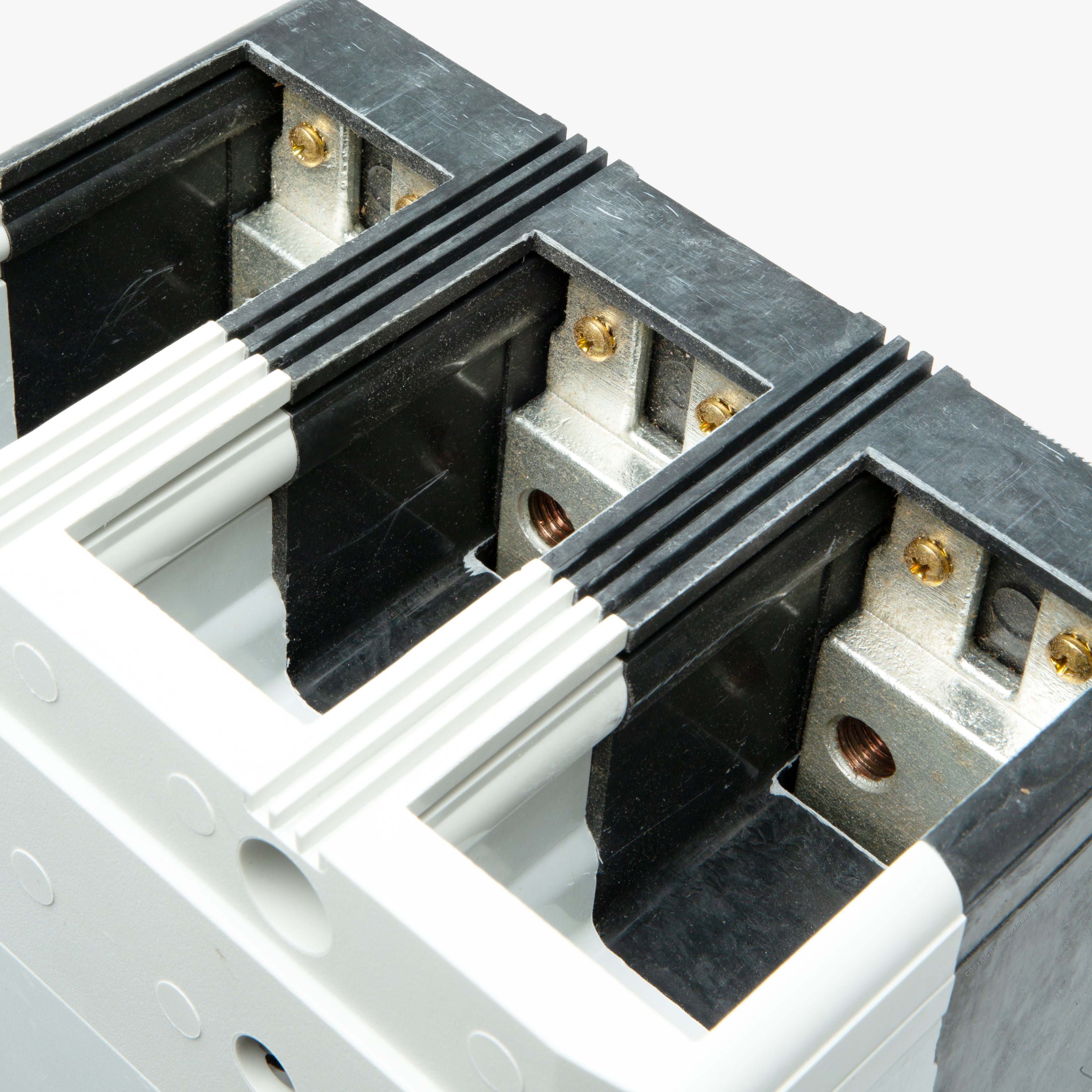

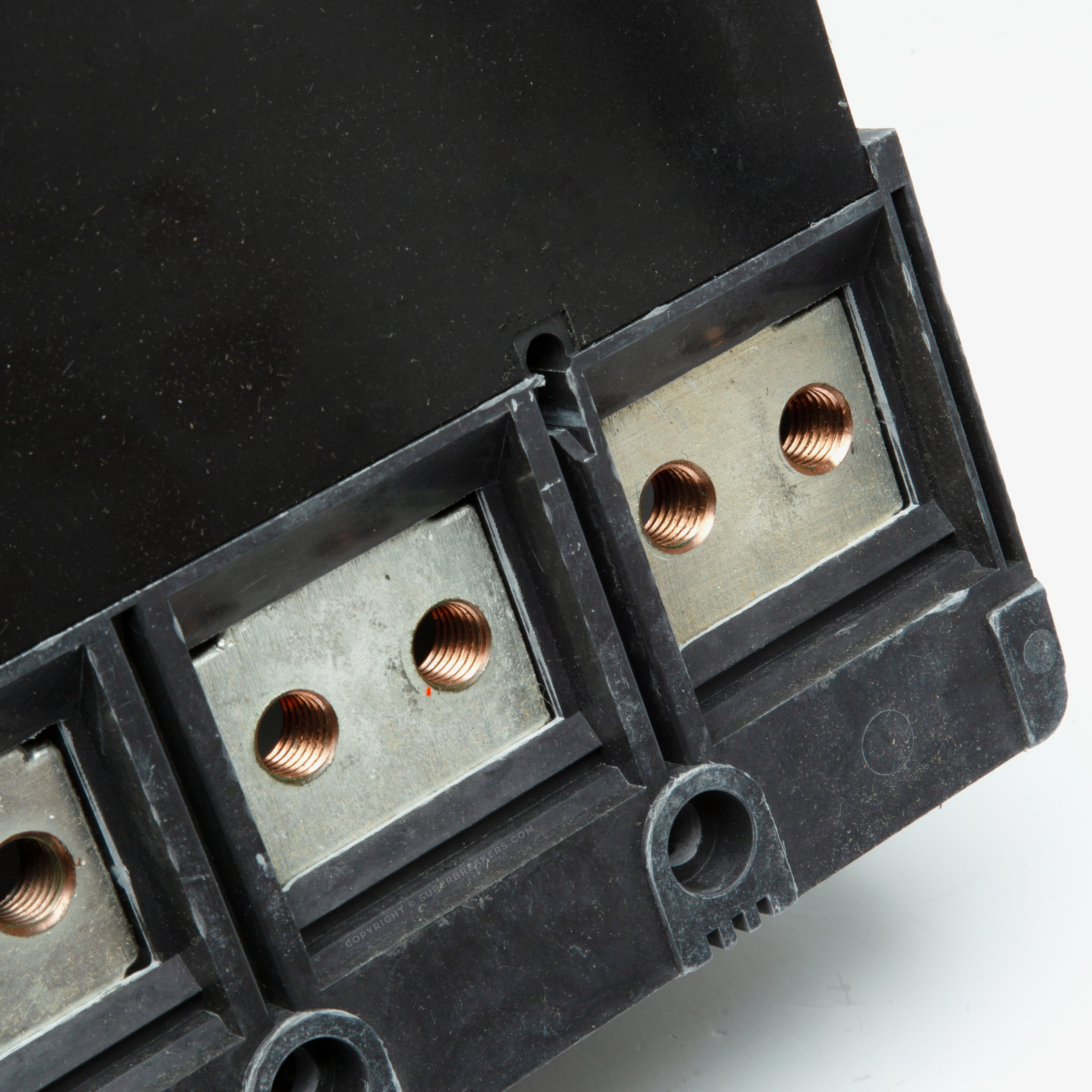

| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Pow-R-Line Panelboards |
| Max Wire | 4/0 AWG |
| Min Wire | 500 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Handle Mechanism, Lug Kits |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Quantity
Eaton PDG53M1200E2NN 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton |
|---|---|
| Series | PDG5 |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | 5 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Pow-R-Line Panelboards |
| Max Wire | 4/0 AWG |
| Min Wire | 500 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Handle Mechanism, Lug Kits |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Description
Eaton PDG53M1200E2NN 3 Pole Circuit Breaker
The Eaton PDG53M1200E2NN is a 3 Pole solid state molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG53M1200E2NN has a bolt-on connection type and includes long time, short time and instantaneous trip functions.
Specifications
| Brand | Eaton |
|---|---|
| Series | PDG5 |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | 5 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Pow-R-Line Panelboards |
| Max Wire | 4/0 AWG |
| Min Wire | 500 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Handle Mechanism, Lug Kits |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
Product FAQs
7 answersDoes the PDG53M1200E2NN include ground fault protection?
No. This circuit breaker features a PXR20 LSI trip unit, which provides Long-Time, Short-Time, and Instantaneous protection. Systems requiring ground fault protection will need a breaker equipped with an LSIG trip unit.
How are the trip unit settings configured and tested?

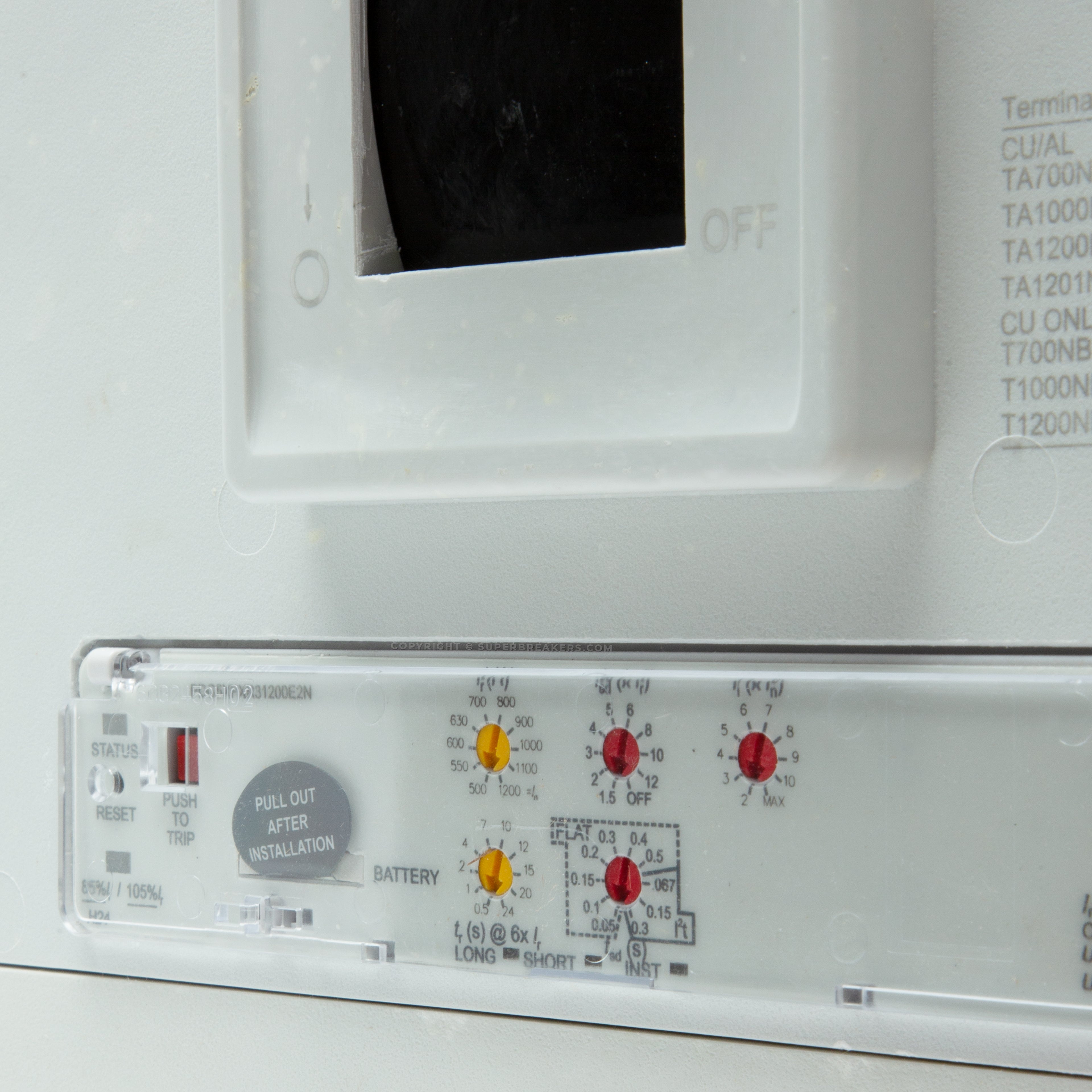

The PXR20 electronic trip unit has a micro-USB port on the front. You can connect a laptop running Eaton Power Xpert Protection Manager (PXPM) software to adjust trip settings, view diagnostic data, and perform secondary injection testing without needing a standalone test kit.
What panels and enclosures accept this 1200A Frame 5 breaker?
This breaker is compatible with Eaton Power Defense enclosures, switchboards, and Pow-R-Line panelboards. Because it is a Frame 5 size, ensure your specific panel or enclosure has the correct mounting hardware and depth to accommodate it.
Are the protection parameters independently adjustable?
Yes. The solid-state LSI trip unit allows you to independently adjust the pickup and delay settings for Long-Time, Short-Time, and Instantaneous protection to ensure proper selective coordination with downstream breakers and equipment.
What does the globally rated designation mean for this breaker?
The PDG series is engineered for global applications. This means the breaker carries multiple certifications, including UL 489, CSA, and IEC standards, making it suitable for installation in both North American and international electrical systems.
Does this breaker include communications or Zone Selective Interlocking (ZSI)?
No. The E2 in the catalog number specifies a standard PXR20 LSI trip unit without Modbus, CAM, or ZSI modules. If your application requires these features, you must order a variant with a different trip unit suffix or add the necessary communication relays.
What is the operating frequency rating for this breaker?
The PDG53M1200E2NN is rated for use on standard 50 Hz and 60 Hz AC electrical systems.
