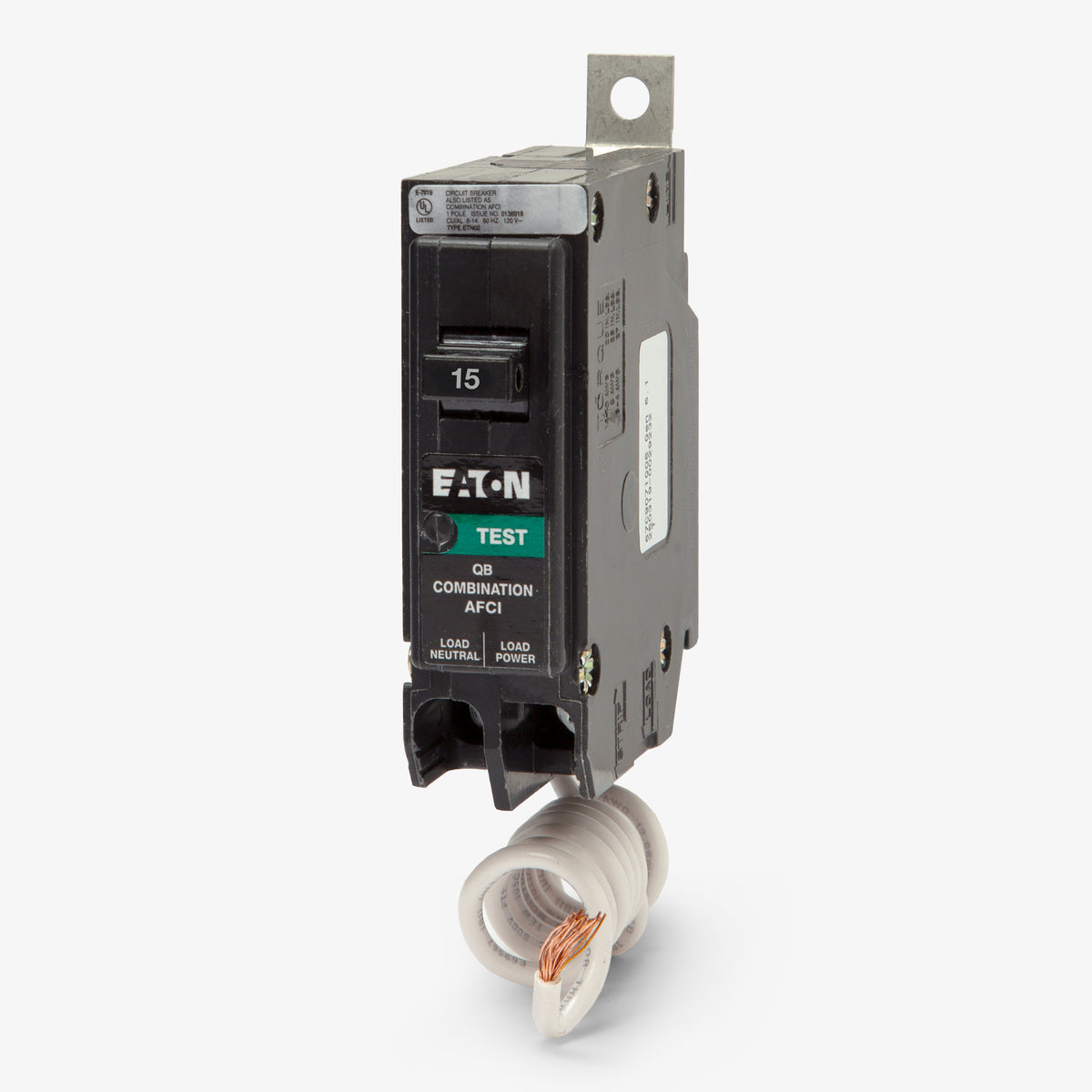

Eaton / Cutler-Hammer QB1015CAF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer QB1015CAF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Description
Part of the Quicklag family, the Eaton QB1015CAF is a 15A bolt-on miniature circuit breaker providing combination arc-fault (AFCI) protection. It features a diagnostic LED, overvoltage protection, and a pigtail neutral. This unit installs into Eaton Pow-R-Line panelboards, ideal for applications requiring secure bolt-on connections. It replaces the legacy QB1015AF model. Rated 10 kAIC at 120/240V, it continuously monitors for series and parallel arcing to prevent electrical fires.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QB1015CAF |
| Series | QB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Combination Arc Fault Protection, Diagnostic LED, Self-Test, Overvoltage Protection |
Product FAQs
5 answersWhich panelboards accept the Eaton QB1015CAF circuit breaker?
The QB1015CAF is engineered specifically for Eaton Pow-R-Line panelboards that support bolt-on Quicklag BAB frame breakers.
Can the QB1015CAF replace older Eaton QB arc fault breakers?
Yes, the QB1015CAF is a combination arc fault circuit interrupter that serves as the direct replacement for the legacy QB1015AF branch and feeder AFCI model.

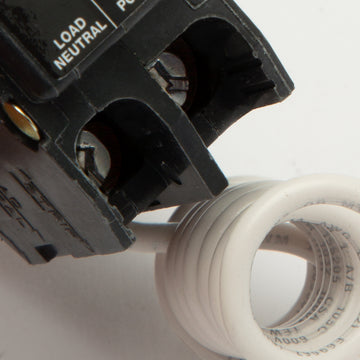

How is the neutral connection wired on the QB1015CAF?
This breaker is equipped with a pigtail neutral wire. The pigtail must be routed and connected directly to the neutral bus bar in the panelboard to power the internal arc fault detection circuitry.

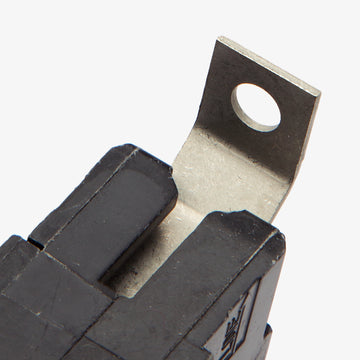

How is the QB1015CAF secured in the panelboard?
It utilizes a bolt-on connection, providing a secure mechanical and electrical mounting method that prevents the breaker from loosening over time in commercial Pow-R-Line panelboards.
What is the difference between this combination AFCI and a standard breaker?
While standard breakers only trip during overloads and short circuits, the QB1015CAF continuously monitors the circuit for both series and parallel arcing conditions to help prevent electrical fires.
