Eaton / Cutler-Hammer QB1030EP GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QB1030EP
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QB1030EP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

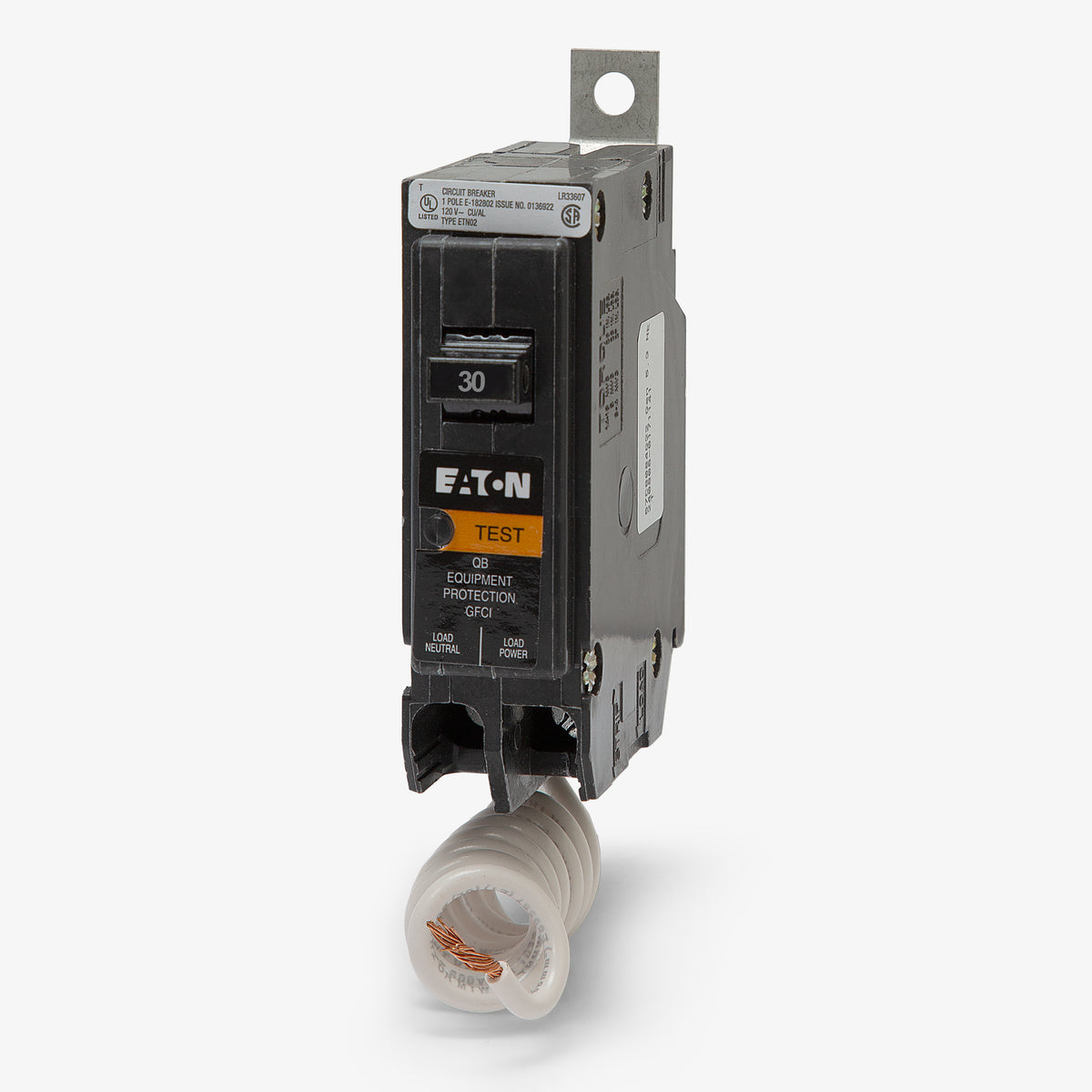

Eaton / Cutler-Hammer QB1030EP - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBH1030EP
30A GFEP Miniature Circuit Breaker
Description
Rated for 30 amps, the Eaton QB1030EP is a single-pole GFEP breaker for commercial environments. It combines thermal-magnetic trip functions with dedicated ground fault protection. Designed with a bolt-on mounting style, it fits securely into Eaton Pow-R-Line panelboards. This model replaces the older QBGFEP1030 and accepts 14-4 AWG wire. Operating with a 30mA ground fault threshold, it prevents damage to sensitive machinery. The unit carries a 10kAIC rating at 120/240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1053, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
The Eaton QB1030EP is a Ground Fault Equipment Protector (GFEP) with a 30mA trip sensitivity, designed specifically to protect machinery such as heat tracing cables. Standard GFCI breakers (Class A) have a much lower 5mA trip threshold intended to protect personnel from shock.
Which panelboards are compatible with the QB1030EP?

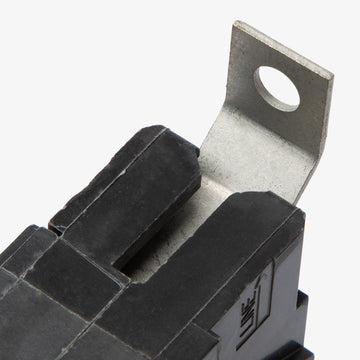

This bolt-on miniature circuit breaker is engineered for installation in commercial Eaton Pow-R-Line panelboards that accept Quicklag QB type breakers. It requires a busbar designed specifically for bolted connections.
How is the neutral connected on this ground fault breaker?

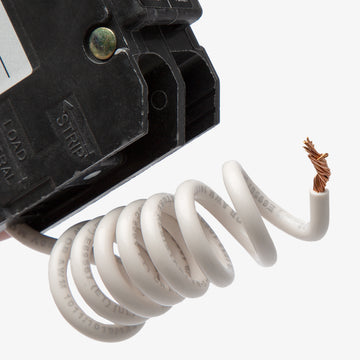

This breaker utilizes a pigtail neutral connection. The attached white pigtail wire must be wired directly to the neutral bar of your panelboard to enable the ground fault monitoring circuitry.
Does the QB1030EP replace older Cutler-Hammer part numbers?
Yes, the QB1030EP serves as the direct replacement for the legacy Cutler-Hammer QBGFEP1030 equipment protection breaker.
Is this 30mA GFEP breaker suitable for wet location personnel protection?
No. Because this breaker features a 30mA ground fault threshold, it is not rated for personnel protection (Class A 5mA) required for bathrooms, kitchens, or general residential wet locations. It is intended strictly for safeguarding equipment from line-to-ground faults.
What size wire is accepted by the terminals on this 30A equipment protector?
The box lugs on the QB1030EP accommodate copper or aluminum wiring ranging from 14 AWG to 4 AWG. Always verify local codes for correct wire sizing on 30A branch circuits.
