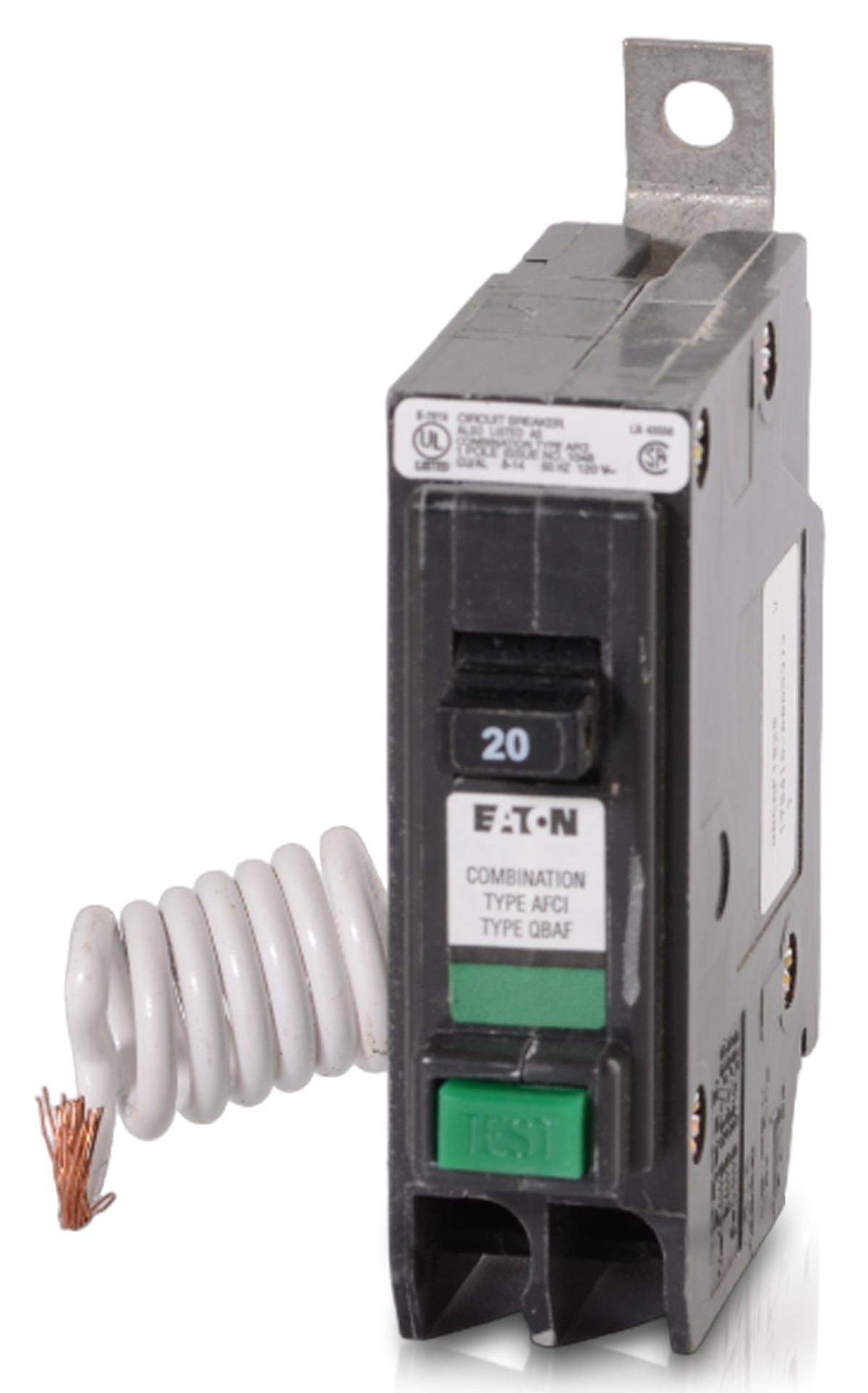

Eaton / Cutler-Hammer QBCAF1020 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer QBCAF1020 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Description
Providing comprehensive combination arc fault protection, this 20A single-pole breaker is designed for commercial and industrial environments. It features a 10kAIC rating at 120/240VAC to safeguard circuits against dangerous arcing conditions. Installation is straightforward with a secure bolt-on mount for Eaton Pow-R-Line and Sumter panelboards. It utilizes a pigtail neutral wire and is superseded by the QB1020CAF. The unit includes a diagnostic LED and carries an HACR rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBCAF1020 |
| Series | QBCAF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Sumter Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -31C to 66C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the Eaton QBCAF1020?
This bolt-on circuit breaker is designed for use in Eaton Pow-R-Line panelboards, including PRL1a, PRL3a, and PRL4a, as well as legacy Sumter panelboards.
Can I install the QBCAF1020 in a standard residential load center?
No. The QBCAF1020 features a bolt-on mounting style (BAB frame) and is specifically designed for commercial distribution panelboards. It will not fit in standard plug-on load centers.
What is the difference between the QBCAF1020 and the QBHCAF1020?
Both are 20A, 1-pole Combination AFCI breakers for Pow-R-Line panels, but they have different interrupting ratings. The QBCAF1020 is rated at 10kAIC, while the QBHCAF1020 is rated at 22kAIC for systems with higher available fault current.
What is the difference between the QBCAF1020 and the QBAF1020?
The QBCAF1020 is a Combination Arc Fault Circuit Interrupter (CAFCI), which detects both parallel and series arcs. The older QBAF1020 is a Branch Feeder AFCI, which only detects parallel arcs. Modern NEC standards typically require CAFCI protection for branch circuits.
How is the neutral connection handled on the QBCAF1020?
This breaker is equipped with a pigtail neutral wire. The pigtail must be routed and terminated directly to the neutral bus bar of the panelboard to power the breaker's internal arc fault detection circuitry.
What type of arc fault protection does the QBCAF1020 provide?
It provides Combination Arc Fault (CAFCI) protection. This means it is engineered to detect and mitigate both high-energy parallel arcs (line-to-neutral or line-to-ground) and low-energy series arcs (such as a loose connection or damaged wire within a single conductor).
