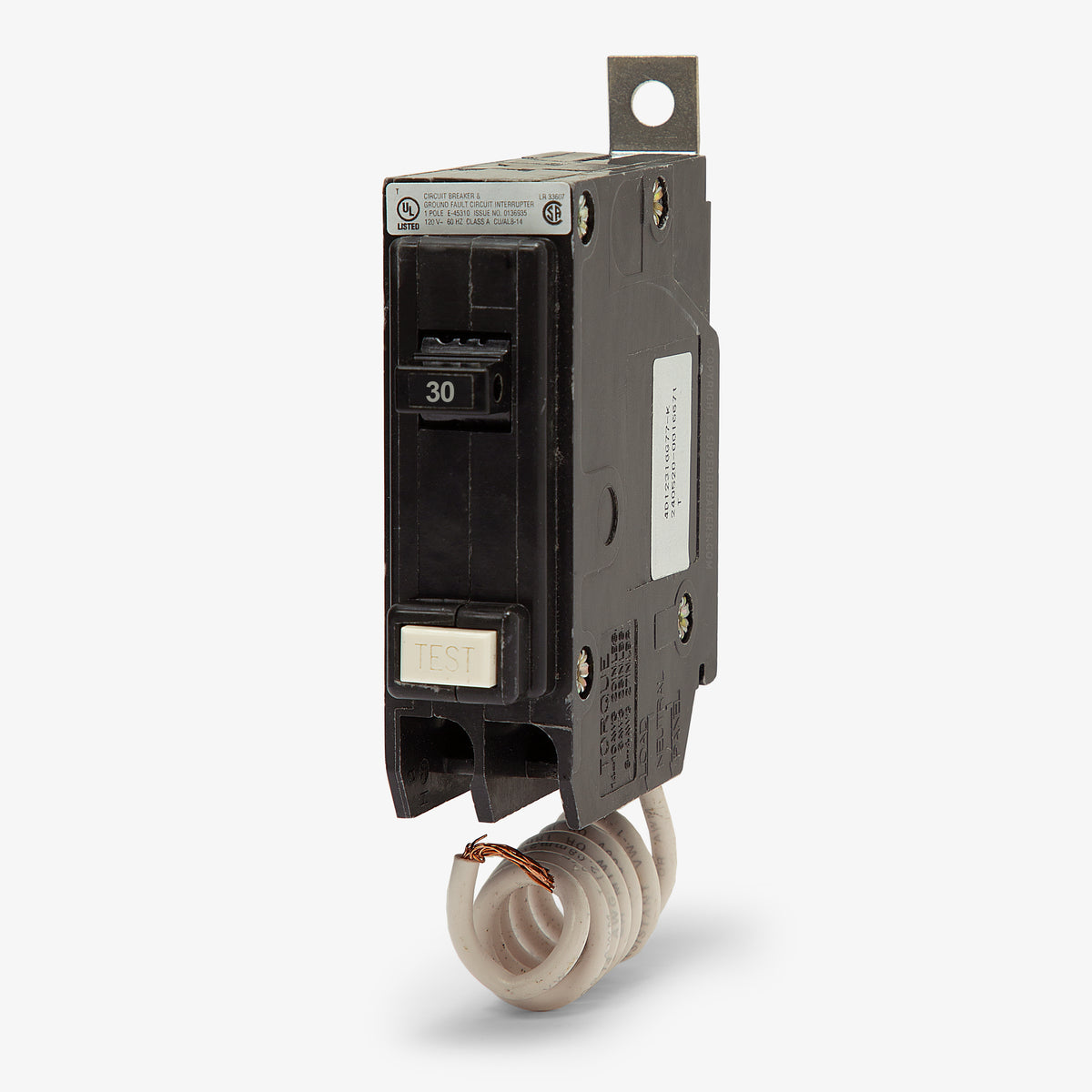

Eaton / Cutler-Hammer QBGFT1030 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFT1030
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFT1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFT1030 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFT1040
40A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT1020
20A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT1015
15A GFCI Miniature Circuit Breaker
Description
Rated for 30A at 120/240VAC, this Eaton Quicklag GFCI breaker combines thermal-magnetic trip technology with sensitive ground fault detection. It is built for commercial environments requiring robust protection. Featuring a bolt-on configuration, the breaker mounts into compatible Pow-R-Line panelboards. It acts as an exact substitute for the discontinued QBGF1030, simplifying maintenance. A built-in self-test function periodically verifies the 5mA ground fault circuitry is operational.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFT1030 |
| Series | QBGFT |
| Amperage | 30A |
| Poles | 1 |

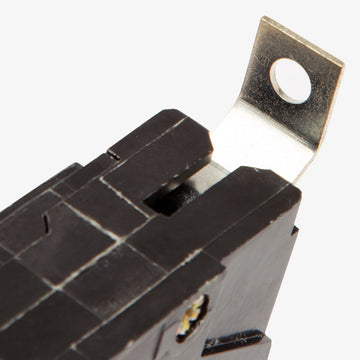

| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Self-Test |
Product FAQs
6 answersWhat panelboards are compatible with the Eaton QBGFT1030 circuit breaker?
The QBGFT1030 is a bolt-on breaker designed for use in Eaton and Cutler-Hammer Pow-R-Line panelboards that accept QB or BAB frame types.
What is the ground fault trip sensitivity of the QBGFT1030?
This breaker features a 5 mA trip sensitivity, providing Class A ground fault protection for personnel in wet or damp locations.
Can the QBGFT1030 replace older Cutler-Hammer GFCI breakers?
Yes, the Eaton QBGFT1030 is a direct replacement for the discontinued Cutler-Hammer QBGF1030. Both share the same physical dimensions, bolt-on mounting, and 5 mA ground fault protection.
How is the ground fault protection verified on the QBGFT1030?
The breaker includes a built-in test button to manually verify the ground fault circuitry. Modern versions also feature an automatic self-test function that periodically ensures the 5 mA personnel protection is operational.

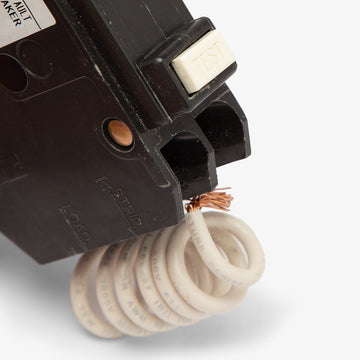

Does the QBGFT1030 require a pigtail neutral connection?
Yes, this breaker includes a pigtail neutral wire that must be connected to the panel neutral bar for the ground fault circuitry to function correctly.
What type of trip functions does the QBGFT1030 provide?
It uses a thermal-magnetic trip unit with Long-Time and Instantaneous functions for standard overload and short-circuit protection, combined with a Ground-Fault function for personnel safety.
