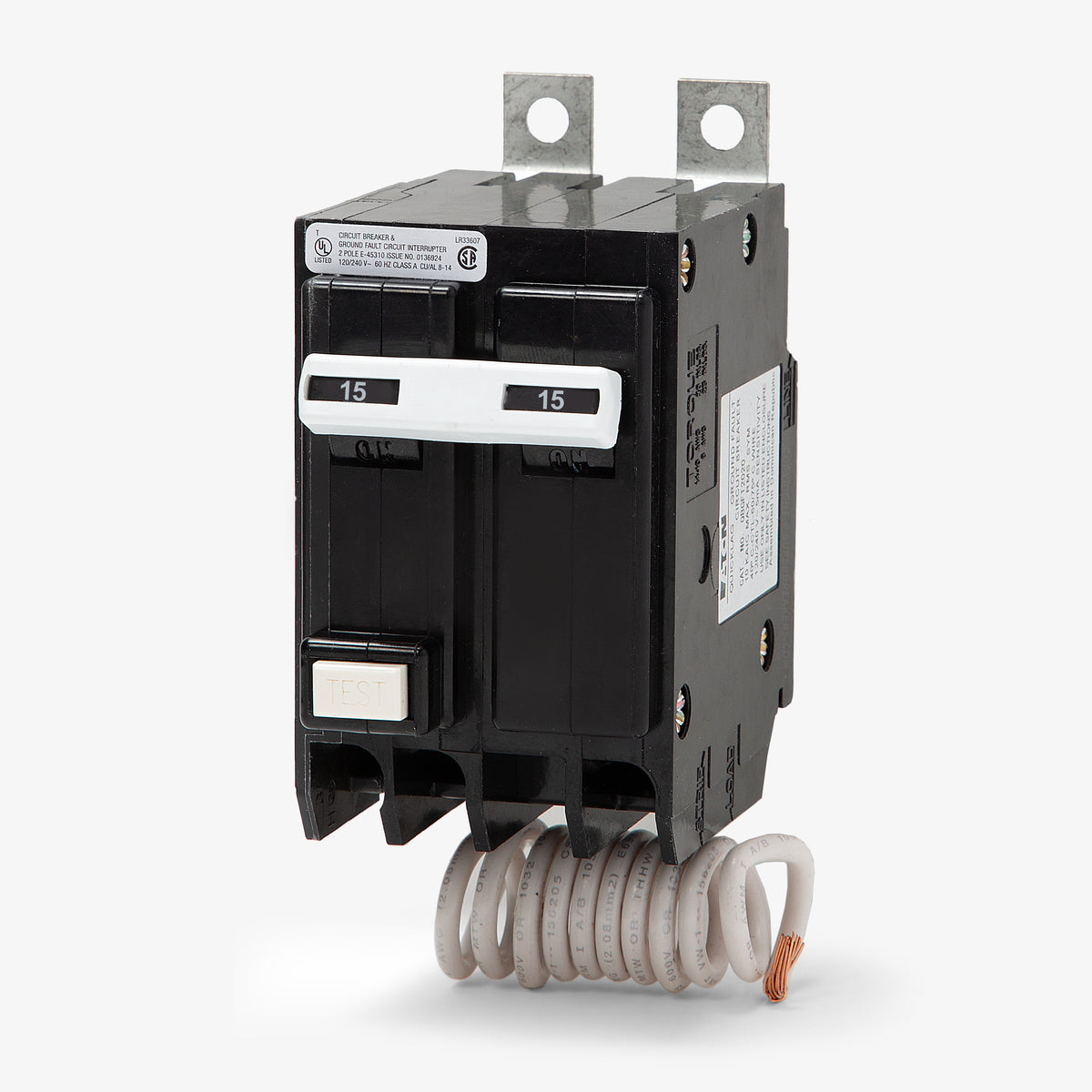

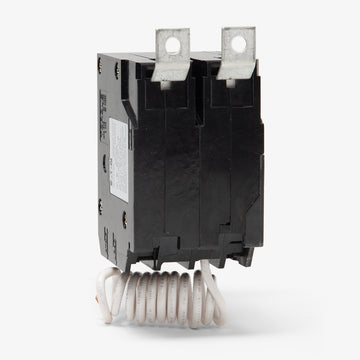

Eaton / Cutler-Hammer QBGFT2015 GFCI Miniature Circuit Breaker
- 15A
- 2 Pole

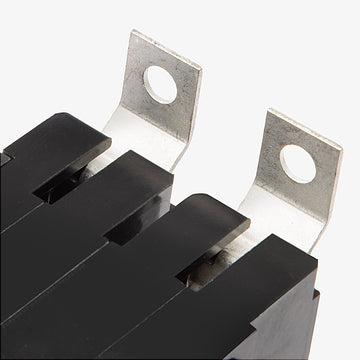

- Bolt-On
Eaton / Cutler-Hammer
QBGFT2015
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFT2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFT2015 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFT2025
25A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT2030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT2040
40A GFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, this 15A two-pole unit provides essential 5mA personnel protection for commercial and industrial electrical systems. The bolt-on design fastens securely into Eaton Pow-R-Line panelboards, serving as a modern replacement for the legacy QBGF2015. Featuring automated self-test diagnostics and a 10kAIC interrupt rating, it ensures compliance with current NEC requirements for wet or damp locations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBGFT |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QBGFT2015 circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards, including Pow-R-Line 1a, 2a, 3a, and 4a series, as well as legacy Quicklag panels that accept BAB frame breakers.
Does the QBGFT2015 replace any older Cutler-Hammer breakers?
Yes, the QBGFT2015 is the direct modern replacement for the legacy Cutler-Hammer QBGF2015. Eaton acquired Cutler-Hammer, so these breakers are fully interchangeable.
What level of ground fault protection does the QBGFT2015 provide?
This breaker provides Class A ground fault protection with a 5mA trip sensitivity. This is designed to protect personnel from electrical shock hazards in wet or damp locations.
Can this breaker be used for equipment ground fault protection?
No, the QBGFT2015 has a 5mA trip threshold for Class A personnel protection. Applications requiring 30mA equipment protection require a GFEP type breaker, such as the QBGFEP series.
How is the neutral connection made on this GFCI breaker?
The QBGFT2015 features a pigtail neutral wire that must be connected directly to the panelboard neutral bar to ensure proper ground fault detection and operation.

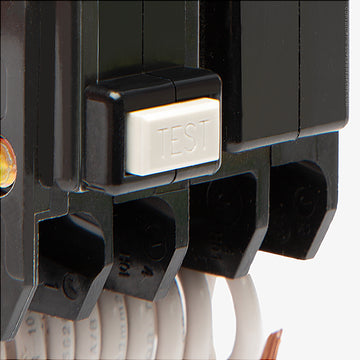

What is the purpose of the test button on the QBGFT2015?
The test button simulates a ground fault condition to verify that the internal sensing and tripping mechanisms of the breaker are functioning correctly. It should be tested regularly to ensure ongoing personnel protection.
