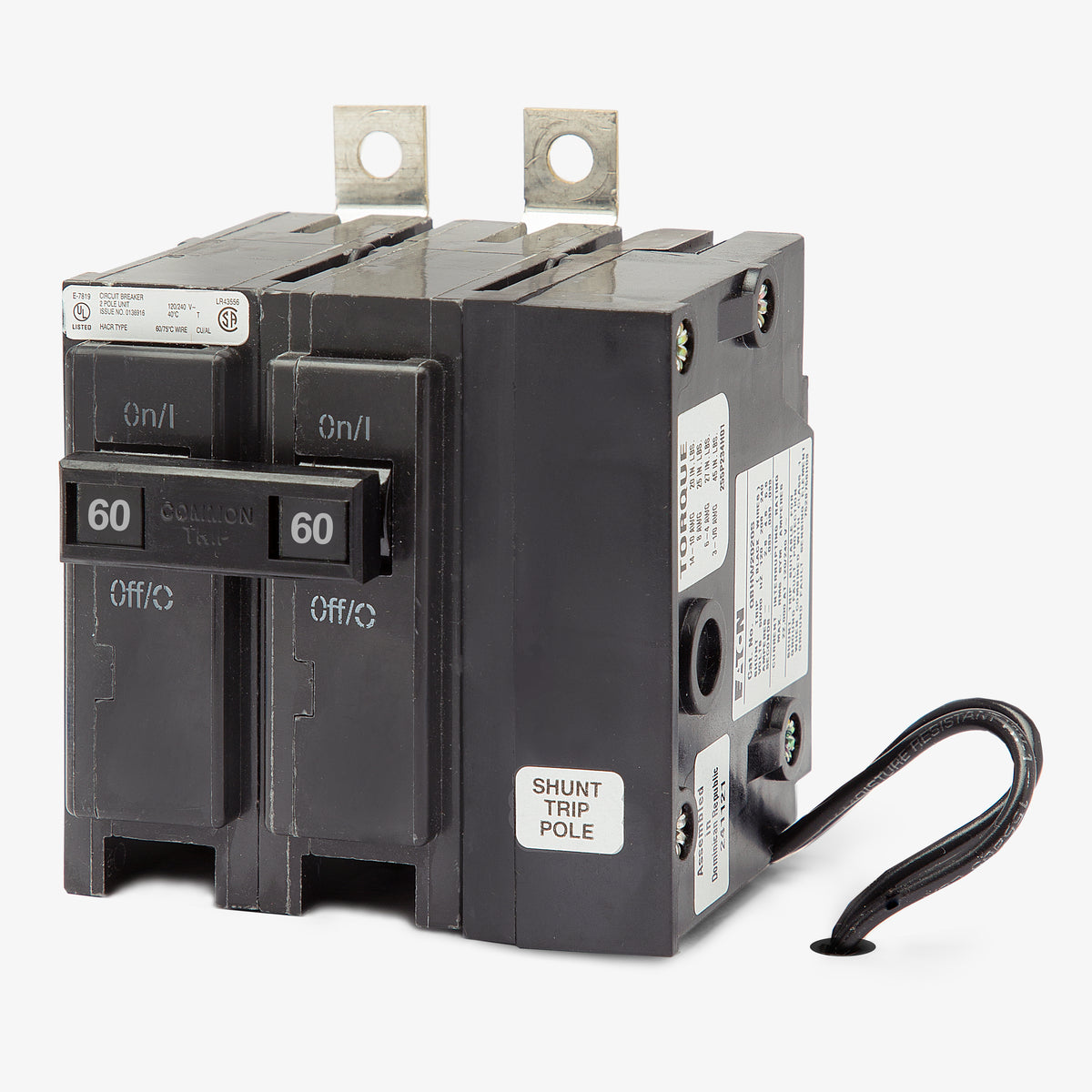

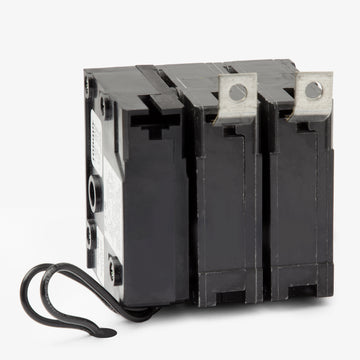

Eaton / Cutler-Hammer QBHW2060S Miniature Circuit Breaker
- 60A
- 2 Pole

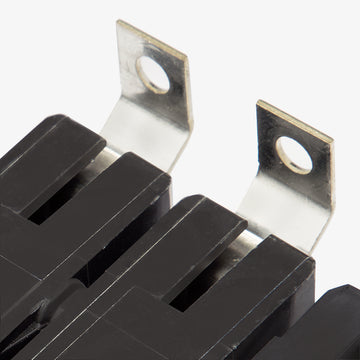

- Bolt-On
Eaton / Cutler-Hammer
QBHW2060S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW2060S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW2060S - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHW2050S
50A 2 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW2040S
40A 2 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW2030S
30A 2 Pole Miniature Circuit Breaker
Description
The Eaton QBHW2060S is a 2-pole, 60A miniature circuit breaker designed for commercial and industrial control systems. It features a factory-installed shunt trip mechanism, allowing facility managers to remotely open the circuit for emergency shutdowns or automated control. This Quicklag breaker installs into Eaton Pow-R-Line panelboards using a dependable bolt-on connection. Rated at 22 kAIC at 120/240VAC, it delivers excellent thermal-magnetic protection alongside its remote capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBHW |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|

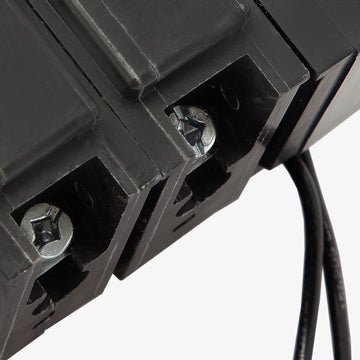

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards accept the QBHW2060S circuit breaker?
This bolt-on Quicklag breaker is designed specifically for Eaton Pow-R-Line panelboards. It is not compatible with standard load centers that require plug-on breakers.
What does the S suffix mean in the QBHW2060S catalog number?
The S suffix indicates the breaker is equipped with a factory-installed 120VAC shunt trip. This accessory draws approximately 2.6A at 120VAC and allows the breaker to be opened remotely for emergency or automated shutdowns.
How many panel spaces does the QBHW2060S require?
This two-pole breaker requires three circuit spaces in the panelboard. The breaker itself occupies two spaces, and the factory-installed shunt trip module requires one additional space.
How is the shunt trip wired on the QBHW2060S?
The factory-installed shunt trip includes two black wire leads that exit the breaker housing. These non-polarity sensitive leads must be connected to an external 120VAC control circuit, such as a fire alarm panel or emergency stop button, to operate the remote trip function.
Can I use the QBHW2060S in place of a BAB2060S?
Yes, the QBHW series shares the same physical dimensions and bolt-on mounting as the BAB series. The QBHW2060S provides a higher interrupting capacity of 22kAIC, making it a suitable upgrade for a 10kAIC BAB2060S.
Is the QBHW2060S compatible with older Cutler-Hammer or Westinghouse panels?
Yes, Eaton acquired the Cutler-Hammer and Westinghouse lines. The QBHW2060S is a direct replacement for older Cutler-Hammer or Westinghouse QBHW breakers with the same specifications and shunt trip requirement.
Does the QBHW2060S provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
