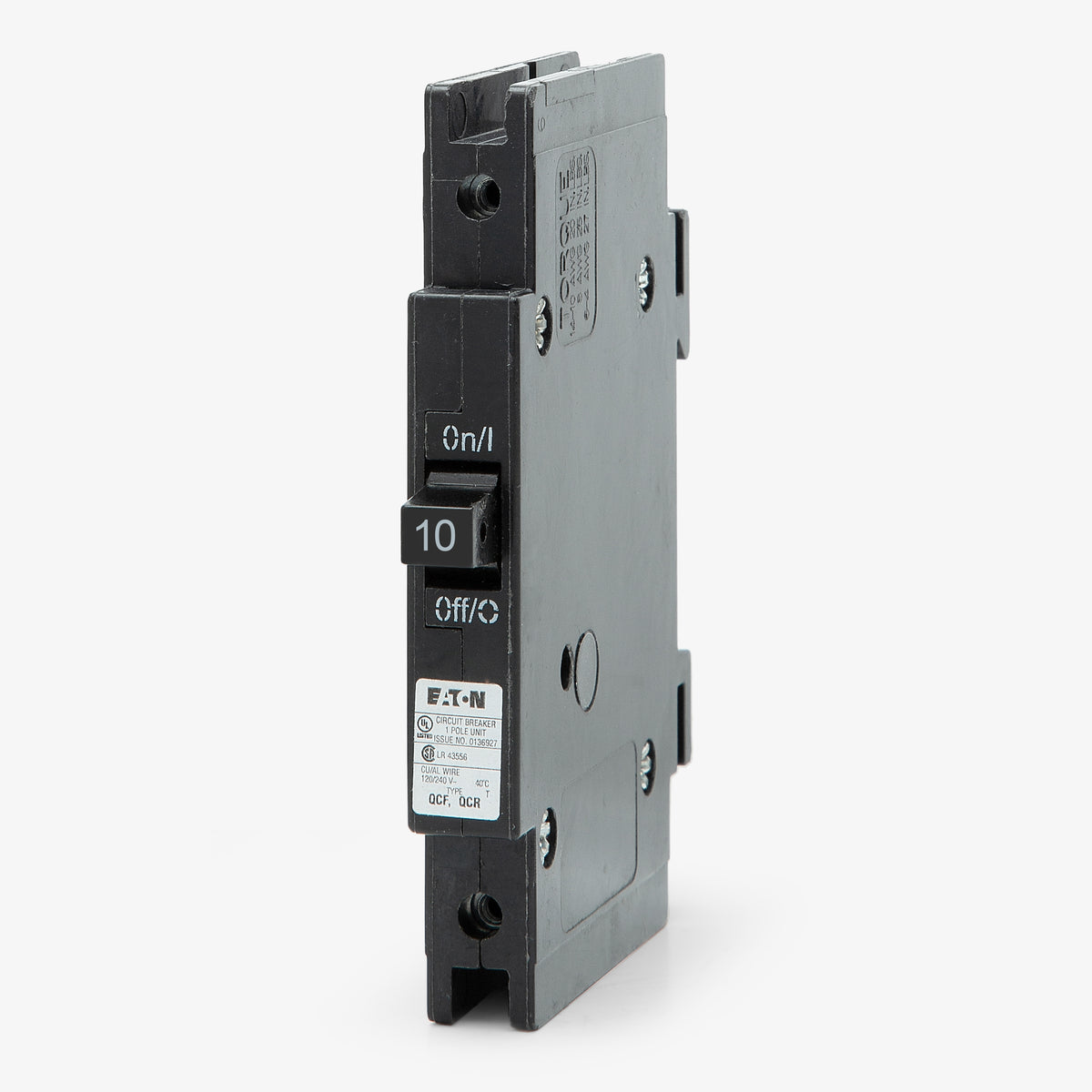

Eaton / Cutler-Hammer QCF1010 Miniature Circuit Breaker
- 10A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCF1010
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCF1010
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCF1010 - 10A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Built for high-density installations, the Eaton QCF1010 is a single-pole miniature breaker from the Quicklag series. Its half-inch width makes it ideal for environments where panel space is limited. The cable-in/cable-out configuration mounts into OEM control panels, enclosures, and Eaton Quicklag panelboards. It comes equipped with box lugs for secure wire terminations. Delivering a 10kAIC rating at 120/240VAC, this HACR-rated breaker provides dependable thermal-magnetic protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QCF |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QCF |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Control Panels, Enclosures, Eaton Quicklag Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat types of panels or enclosures accept the QCF1010 breaker?
It is engineered for installation in OEM control panels, industrial enclosures, and Eaton Quicklag panelboards.
How is the QCF1010 physically mounted in a panel?
The QCF series is designed for front-mount, through-the-door applications. It includes two threaded steel inserts that allow for secure front mounting using #6-32 steel screws. If your application requires a DIN rail mounted breaker, you will need the QCR series equivalent.
What wire sizes and materials can be used with the QCF1010 box lugs?

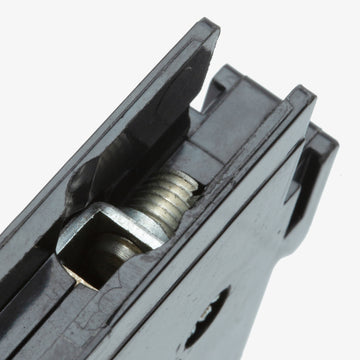

The terminals accommodate 14 AWG to 4 AWG copper or aluminum wiring. The clamp-style lugs are accessible from the rear, allowing you to terminate cables without removing the breaker from the front cover.
What is the physical width of the QCF1010 breaker?
This single-pole breaker features a compact half-inch (12.7 mm) width, helping to conserve space in high-density control panels.
How does the QCF1010 differ from standard QC or QCR breakers?
While all three belong to the Quicklag cable-in and cable-out family, they feature different mounting styles. The QCF is built for front-mounting, the QCR is designed for DIN rail mounting, and the standard QC is a traditional cable-in and cable-out breaker.
