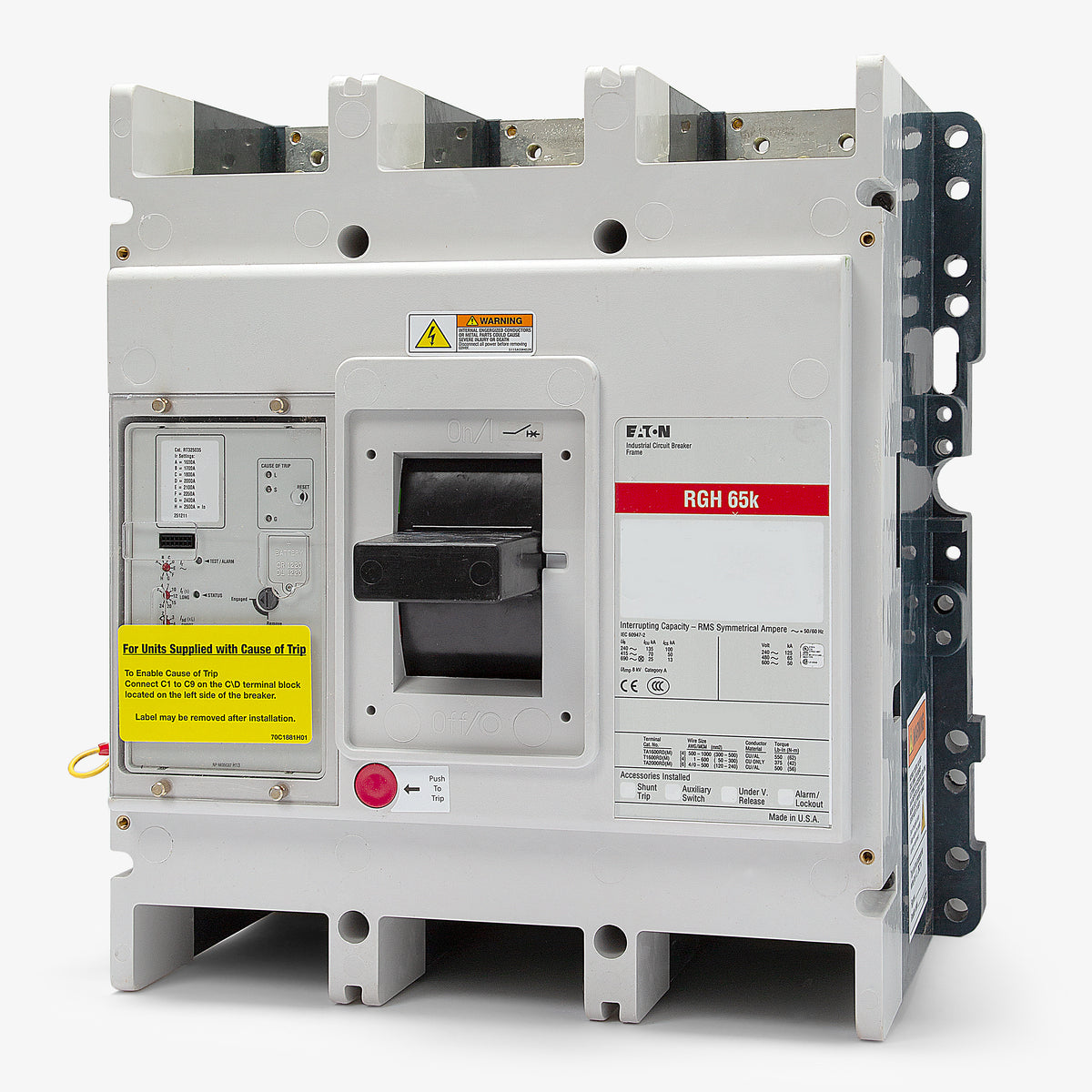

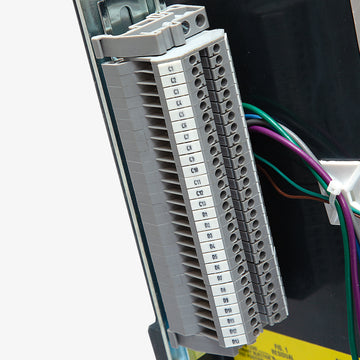

Eaton / Cutler-Hammer RGH316039E Molded Case Circuit Breaker
- 1600A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH316039E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH316039E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH316039E - 1600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH316032E
1600A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH316036E
1600A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH316033E
1600A 3 Pole Molded Case Circuit Breaker
Description
Delivering advanced circuit protection, the RGH316039E is a 1600A, 3-pole electronic trip MCCB from Eaton's Series G family. This RG-frame breaker is optimized for industrial power systems. The unit-mount configuration installs into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. It is fully reverse feed capable. A key advantage is the Digitrip 310+ unit with ALSIG functions, providing integrated ground fault protection and an Arcflash Reduction Maintenance System.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | RGH |
| Amperage | 1600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 800-1600A |
|---|
| Frame Type | RG |
|---|---|

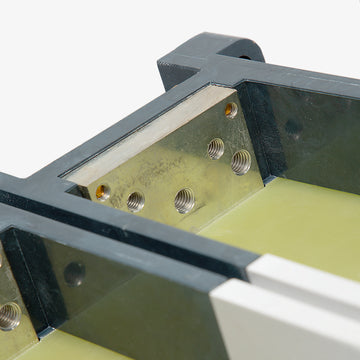

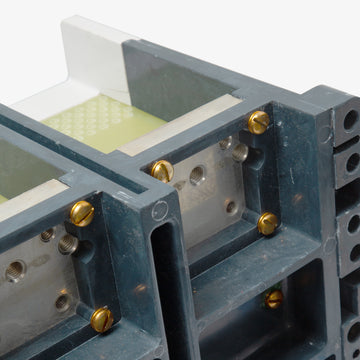

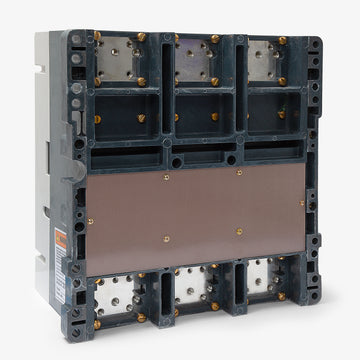

| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Imperial Tapped Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 80% Rated, Reverse Feed, True RMS Sensing, Zone Selective Interlocking, Arcflash Reduction Maintenance System (ARMS) |
Product FAQs
8 answersWhat types of electrical gear is the Eaton RGH316039E designed to fit?
This Series G RG-frame circuit breaker is engineered for installation in Eaton Pow-R-Line panelboards, switchboards, and motor control centers.
Can the RGH316039E be used in reverse-feed configurations?
Yes. Eaton Series G RG-frame circuit breakers, including the RGH316039E, are certified for reverse-feed applications without internal modification.
How does the Arcflash Reduction Maintenance System function on this breaker?
The ALSIG trip unit includes a manually activated maintenance mode. When engaged, it overrides the standard time delay settings to provide an immediate instantaneous trip, greatly reducing incident energy levels to protect personnel during live equipment maintenance.
What specific protection parameters are adjustable on the RGH316039E?
The onboard Digitrip 310+ electronic trip unit allows users to independently adjust Long-Time pickup and delay, Short-Time pickup and delay, Instantaneous pickup, and Ground-Fault pickup and delay.
What does the E suffix indicate in the RGH316039E catalog number?
The E designates that the line and load connection terminals feature standard English (Imperial) threading. Breakers requiring metric tapped pads use an M suffix instead.
Does the RGH316039E include mechanical lugs for cable termination?
No, this unit is supplied with stud or tapped pad connections intended for busbar mounting. If you are terminating standard copper or aluminum wire, compatible mechanical lugs or compression terminals must be ordered separately.
What is the difference between the Eaton RGH316039E and the RGH316036E?
Both are 1600A, 3-pole RGH breakers equipped with LSIG protection. However, the RGH316039E features the upgraded Digitrip 310+ trip unit with the Arcflash Reduction Maintenance System, whereas the standard RGH316036E does not include this maintenance mode feature.
Is the RGH316039E rated for 100 percent continuous load?
No, the standard RGH316039E is an 80 percent rated circuit breaker. It is designed to carry a continuous load up to 80 percent of its nominal 1600A frame size under normal operating conditions.
