Edison JDL300 Fuse

Brand Edison
SKU JDL300
(2 Reviews)
Edison JDL300 Fuse

Edison JDL300 Fuse

Brand Edison
SKU JDL300
(2 Reviews)
Select Item Condition

Quantity

Notify me when back in stock

We’ll send a notification to example@email.com when this product is back in stock.
Buy Now. Pay Later with Shop Pay.
Earn 82 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
Edison JDL300 Fuse

Edison JDL300 Fuse

New

$82.18 No stock

Quantity

Description

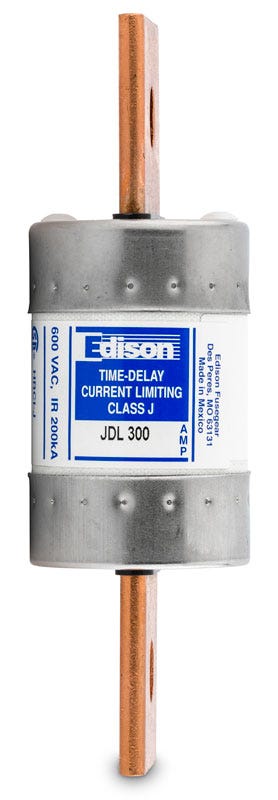

Edison JDL300 Fuse

The New Edison JDL300 UL Class J 300A 600V Time Delay Fuse is a JDL Series current limiting time-delay fuse known for its small physical size and high performance in any space-limited application. The Edison JDL300 fuse has a true dual-element design that offers a minimum 10-second time delay at 500% overload. This long time delay minimized unnecessary fuse openings due to temporary overloads and transient surges. The 300A 600V time-delay fuse offers high degree of current-limitation and faster response to damaging short-circuit currents as compared to mechanical overcurrent protective devices. This Class J Edison fuse is suitable for use with all general-purpose circuits with inductive loads, including motor and motor brand circuits, transformer circuits, and more.

Specifications

Brand Edison
Series JDL
Amperage 300
Voltage 600 VAC
Width (in) 2.36
Height (in) 7.13
Standards UL Listed, Class J, Guide JDDZ, File E162363, CSA Certified HRCI-J per C22.2, No. 248.8
Voltage Protection Rating 600V
Upc 782634803577
Gtin 782634803577
