Edison JDL70 Fuse

Edison JDL70 Fuse

New

$20.54 No stock

Quantity

Description

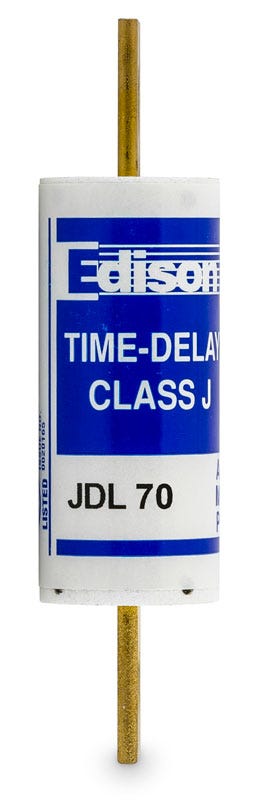

Edison JDL70 Fuse

The New Edison JDL70 UL Class J 70A 600V Time Delay Fuse is a JDL Series current-limiting, time-delay fuse for feeder/brand protection applications. This Class J fuse features a true dual-element design with a minimum 10 second time-delay at 500% overload. The long time-delay function reduces unnecessary fuse openings due to temporary overloads and transient surges. It features a high interrupting rating of 200 kAIC that ensures safe interrupt overcurrents. It has a non-indicating fuse indicator and high degree of current-limitation due to the fast speed-ofesponse to short-circuit. This UL Listed, CSA certified dual-element fuse has lower resistance than ordinary fuses, so they run cooler and lower watts loss ensure reduced power consumption.

Specifications

Brand Edison
Series JDL
Amperage 70
Voltage 600 VAC
Length (in) 1
Width (in) 1
Height (in) 1
Voltage Protection Rating 600V
Upc 782634803461
Gtin 782634803461
