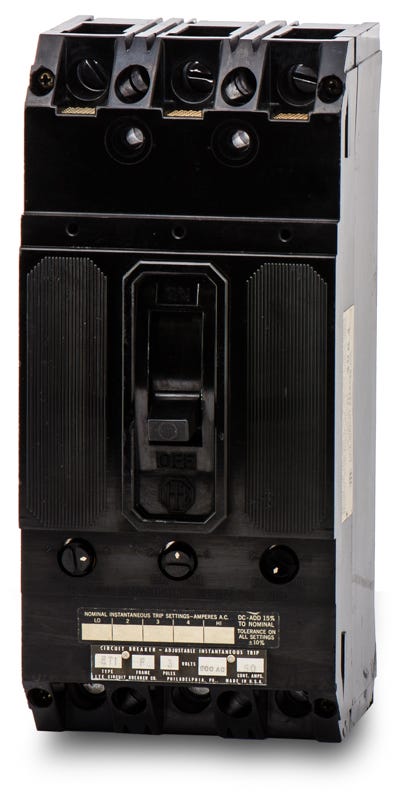

Siemens / ITE ET4060 Motor Circuit Protector
- 3A
- 3 Pole
- Unit Mount
Quantity
Siemens / ITE ET4060 - 3A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
Serving as a critical component in industrial motor control, this 3A magnetic-only protector isolates short circuits. It requires pairing with an external starter to handle standard thermal overloads. Designed to fit legacy ITE and Siemens switchboards like the FC-I and FC-II, it also mounts into CDP-6 and S5 panelboards. Utilizing this original model prevents the mounting adjustments required when upgrading to the ED63A003. The adjustable 1-5A instantaneous trip dial allows precise tuning.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | ET4060-R |
| Series | ET |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 1-5A |
|---|
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | ITE / Siemens Panelboards (CDP-6, S5, P5), Switchboards (FC-I, FC-II) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Not Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip |
