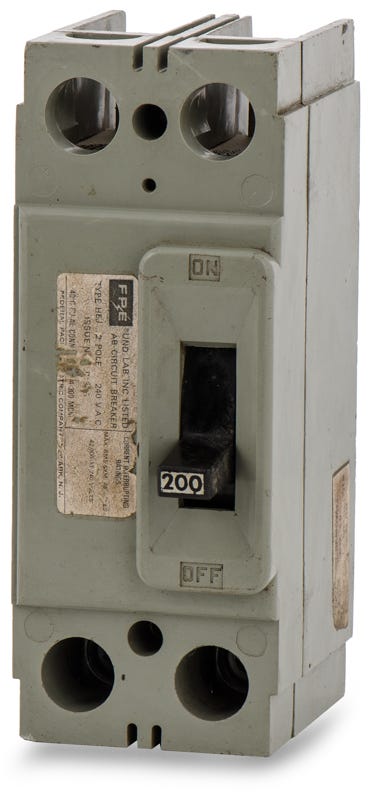

Federal Pacific HEJ222200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Quantity

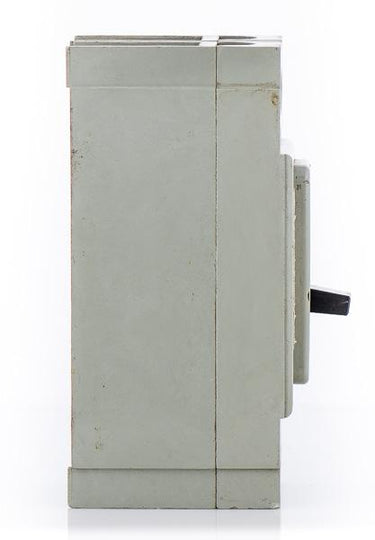

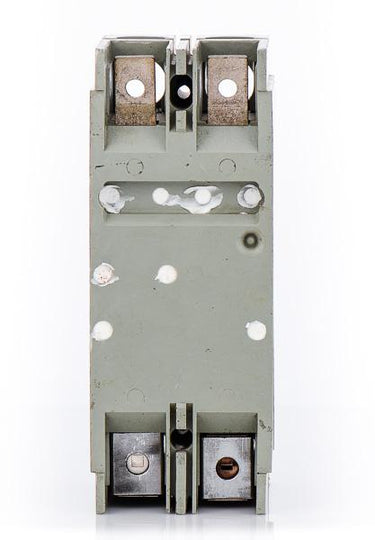

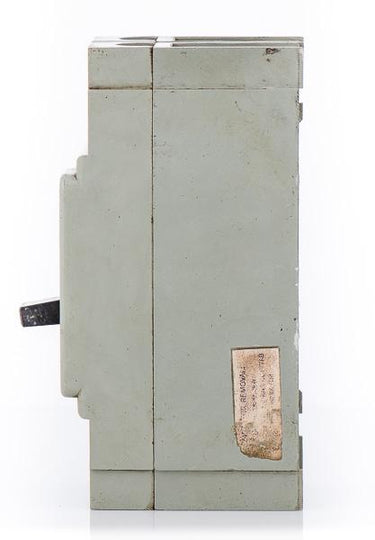

Federal Pacific HEJ222200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
A drop-in replacement for legacy Federal Pacific commercial panelboards, the HEJ222200 is a 200A, two-pole molded case circuit breaker. It provides reliable thermal-magnetic protection for aging electrical systems, ensuring continued operation without complete panel upgrades. This bolt-on MCCB fits seamlessly into FPE enclosures and serves as an exact cross-reference for the obsolete NEJ222200. Rated for 42kAIC at 240VAC, this high-interrupting capacity breaker handles demanding fault currents.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HEJ222200-R |
| Series | HEJ |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat panelboards are compatible with the HEJ222200 circuit breaker?
The HEJ222200 is designed for use in legacy Federal Pacific commercial panelboards that accept H-frame bolt-on breakers.
Can the HEJ222200 replace an obsolete NEJ222200 breaker?
Yes, the HEJ222200 serves as an exact cross-reference and drop-in replacement for the obsolete Federal Pacific NEJ222200. It fits seamlessly into the same enclosures without requiring aftermarket adapters.
What wire sizes are accepted by the lugs on the HEJ222200?
The factory lugs on this breaker accommodate wire sizes ranging from 4 AWG to 300 kcmil. Ensure proper torque specifications are applied during installation.
Is Federal Pacific still manufacturing the HEJ222200?
No, Federal Pacific Electric is no longer in business, making the HEJ series a legacy product. Replacements are typically sourced through specialized electrical distributors to maintain aging infrastructure.
What type of trip unit does the HEJ222200 use?
This breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to provide reliable overcurrent and short-circuit protection.
