Federal Pacific HFJ631200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Federal Pacific
HFJ631200
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HFJ631200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific HFJ631200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for legacy power systems, the HFJ631200 is a 200-amp, 3-pole molded case circuit breaker delivering dependable thermal-magnetic protection. It supports facilities relying on older Federal Pacific infrastructure to safely restore circuit functionality. Designed to fit FPE panelboards, this bolt-on breaker requires no modifications. It is the exact cross-reference for replacing discontinued NFJ631200 breakers. Operating at up to 600VAC, it features a 65kAIC rating at 240VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HFJ631200 |
| Series | HFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
4 answersWhat enclosures are compatible with the HFJ631200 circuit breaker?
This legacy H-frame breaker is specifically designed for use in older Federal Pacific (FPE) panelboards and switchboards that accept 3-pole, bolt-on molded case circuit breakers.
What are the wire size requirements for the HFJ631200 lugs?
The standard load-side lugs on this breaker are rated to accept conductors ranging from 4 AWG up to 350 kcmil. Proper torque must be applied during installation to ensure a secure connection for 200-amp loads.
How does the thermal-magnetic trip unit function on the HFJ631200?
The breaker uses a fixed thermal element for long-time overload protection and a fixed magnetic element for instantaneous short-circuit protection. These LI functions are non-adjustable and factory set for 200-amp commercial applications.
Does the HFJ631200 share the safety concerns associated with Federal Pacific Stab-Lok breakers?
No. The HFJ series is a commercial-grade, bolt-on molded case circuit breaker. It does not use the residential Stab-Lok plug-on design, which is the primary source of safety and reliability issues in legacy Federal Pacific load centers.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 5.0 out of 5 based on 1 review.
Total 5 star reviews: 1 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Search
Rating
1 review

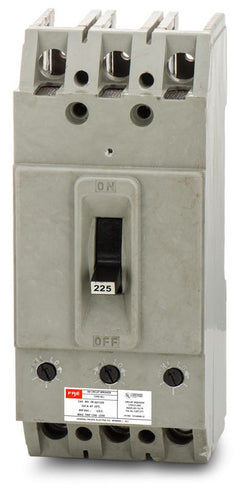

- JMJimmy M.Verified BuyerReviewingFederal Pacific HFJ631225 - 225A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars7/9/26FPE HFJ631225
