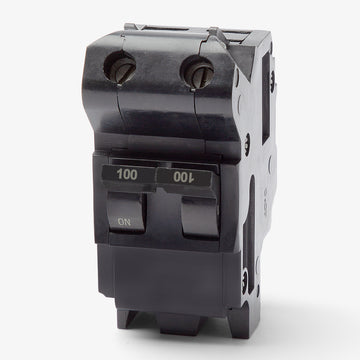

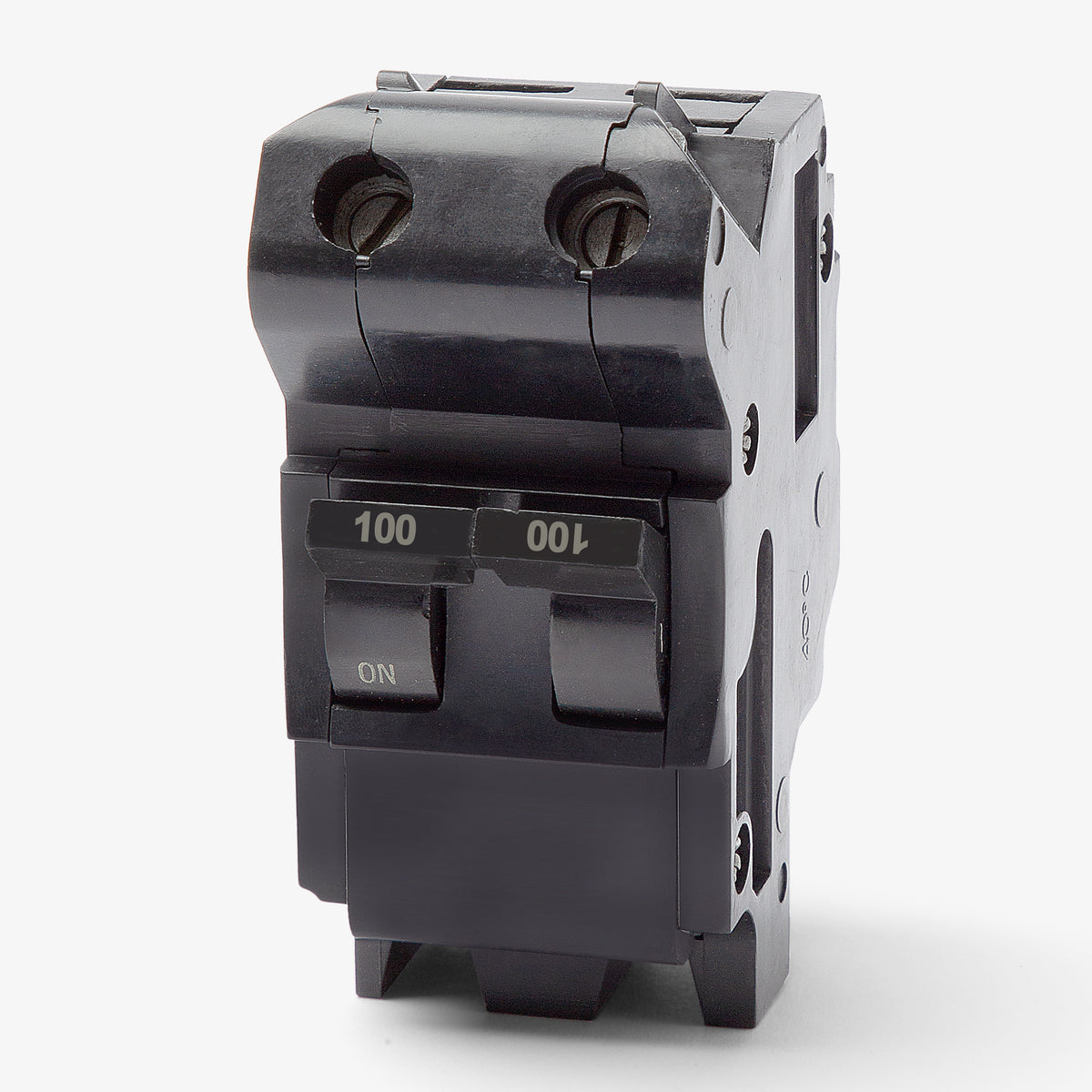

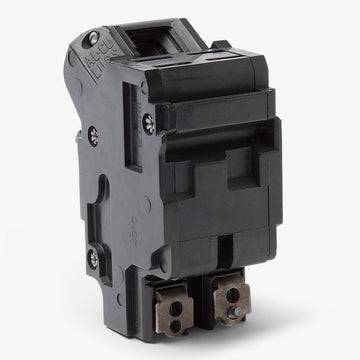

Federal Pacific NB100 Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Federal Pacific
NB100
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NB100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB100 - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NB100 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB100 |
| Series | NB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Federal Pacific NB100 - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB100-R |
| Series | NB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
80A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Designed to keep older systems operational, the Federal Pacific NB100 is a 100A, 2-pole miniature circuit breaker. It provides reliable thermal-magnetic protection for commercial facilities. This legacy component installs into Federal Pacific NB and NBLP panelboards, offering an exact fit. It serves as a direct cross-reference for the UBIF2100NB, ensuring seamless integration. Rated for 10kAIC at 120/240VAC, the bolt-on design delivers a secure, vibration-resistant connection to the busbar.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB100-R |
| Series | NB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the FPE NB100 circuit breaker?
This breaker is specifically designed for legacy commercial systems and installs directly into Federal Pacific NB and NBLP panelboards.
Can I use this breaker in an FPE Stab-Lok residential panel?
No. The NB100 is a commercial bolt-on breaker. It will not fit in Stab-Lok enclosures, which require plug-in NA, NC, or NAJ series breakers.

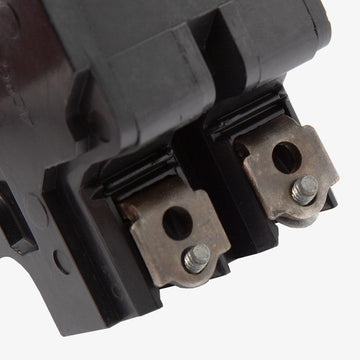

What type of panel connection does the NB100 require?
It features a bolt-on mounting style. Unlike FPE plug-in breakers, this unit bolts directly to the panelboard bus for a secure commercial connection.

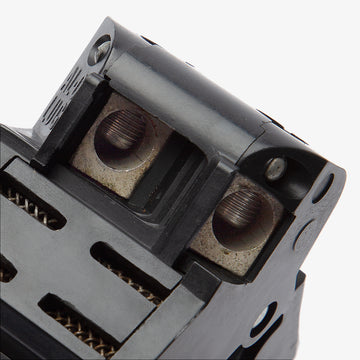

What wire gauge and conductor materials are supported by the NB100?
The load-side lugs are rated for both copper and aluminum (Al/Cu) conductors, accepting wire sizes from 1 AWG up to 2/0 AWG.
Are there active aftermarket replacements for the legacy NB100?
Yes, the Connecticut Electric UBIF2100NB is an ETL-listed direct substitute designed to replace the 100A, 2-pole NB100 without requiring panel modifications.
How does the thermal-magnetic trip unit function on this model?
It utilizes fixed trip settings, combining a bimetallic strip for long-time overload protection with a magnetic armature for instantaneous short-circuit protection.
