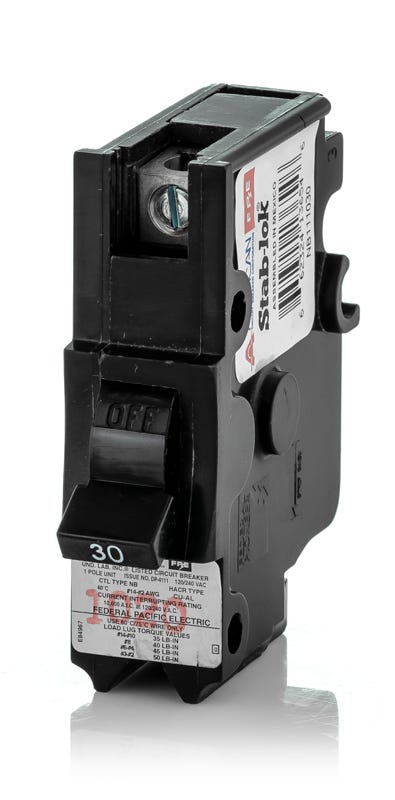

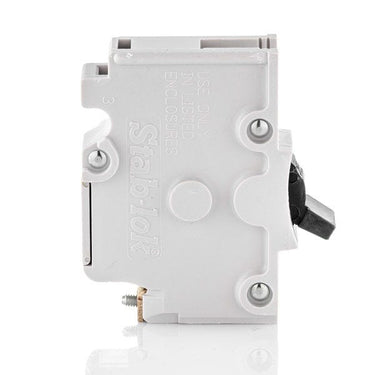

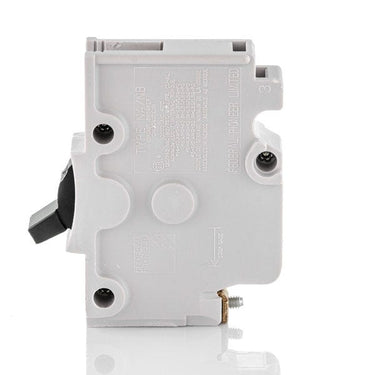

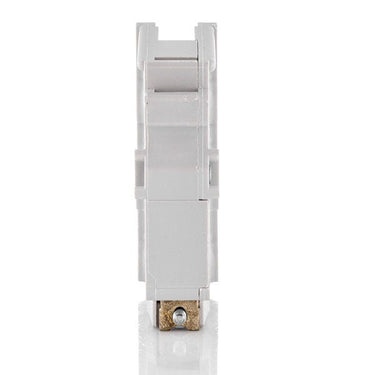

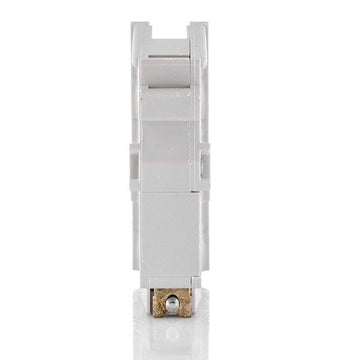

Federal Pacific NB111030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Federal Pacific
NB111030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NB111030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB111030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NB111030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111030 |
| Series | NB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Federal Pacific NB111030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111030-R |
| Series | NB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Part of the classic FPE lineup, the NB111030 is a 30A, 1-pole molded case circuit breaker built for 120VAC commercial applications. It delivers reliable thermal-magnetic protection for aging electrical systems without requiring panel upgrades. This breaker mounts seamlessly into legacy Federal Pacific NB and NBLP panelboards. When a modern substitute is required, the UBIF30NB serves as a direct cross-reference.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111030 |
| Series | NB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards are compatible with the Federal Pacific NB111030?
This breaker is designed as an exact fit for legacy Federal Pacific NB and NBLP series panelboards.
Can the NB111030 be installed in standard Federal Pacific Stab-Lok residential load centers?
No. This is a bolt-on molded case circuit breaker designed specifically for NB and NBLP commercial panelboards. It will not fit in plug-on Stab-Lok residential panels.
How does the NB111030 connect to the panel?
It features a bolt-on mounting style, meaning it fastens directly to the panel busbar with screws to ensure a secure, stable connection in commercial applications.
What wire gauge range is supported by the terminals on this breaker?
The load side lugs are designed to accommodate aluminum or copper wire sizes ranging from 14 AWG to 2 AWG.
Is there a modern cross-reference for the Federal Pacific NB111030?
Yes, if a modern substitute is required, the UBIF30NB is manufactured as a direct replacement for this 30-amp, 1-pole legacy breaker.
What does the LI trip function code indicate on this breaker?
The LI designation means the breaker is equipped with Long-Time and Instantaneous trip functions. The long-time thermal element protects against gradual overloads, while the instantaneous magnetic element responds immediately to short circuits.
