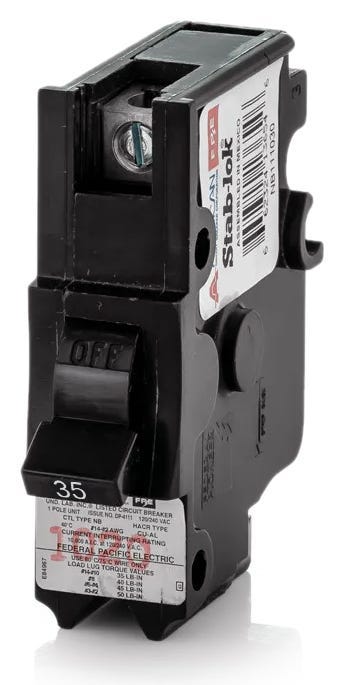

Federal Pacific NB111035 Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Federal Pacific
NB111035
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NB111035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB111035 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NB111035 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111035 |
| Series | NB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Federal Pacific NB111035 - 35A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111035-R |
| Series | NB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
10A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Designed specifically for legacy power distribution networks, this 35-amp single-pole breaker offers essential overcurrent safety. It fastens into classic Federal Pacific NB panelboards, providing an exact match for obsolete hardware without requiring extensive modifications. Featuring standard thermal-magnetic trip technology, it handles commercial loads with a 10kA short-circuit rating. This unit successfully replaces older UBIF20NB and NB15 models in existing enclosures.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB111035 |
| Series | NB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the Federal Pacific NB111035?
This breaker is designed exclusively for use in legacy Federal Pacific NB series panelboards. It will not fit in FPE Stab-Lok load centers.
Can I use this breaker in a standard FPE Stab-Lok residential panel?
No. The NB111035 is a bolt-on circuit breaker designed for commercial NB panelboards. It is not compatible with plug-on Stab-Lok load centers that require NA or NC series breakers.
How does the NB111035 connect to the panelboard busbar?
It features a bolt-on mounting style, meaning it fastens directly to the panel busbar with screws for a secure, vibration-resistant connection.
What size and type of wire can be used with the NB111035?
The load-side lugs on this breaker accept 14 AWG to 2 AWG wire and are rated for both aluminum and copper conductors.
What type of trip mechanism does the NB111035 use?
It utilizes a fixed thermal-magnetic trip unit, providing both long-time thermal protection against overloads and instantaneous magnetic protection against short circuits.
Is this breaker suitable for 240V applications?
No. The NB111035 is a single-pole breaker rated for 120VAC maximum and cannot be used for 240V multi-pole applications.
Are there aftermarket replacements available for the Federal Pacific NB111035?
Yes. Because original Federal Pacific breakers are obsolete, aftermarket manufacturers like Connecticut Electric produce UL-listed replacement breakers designed to fit legacy NB panelboards.
