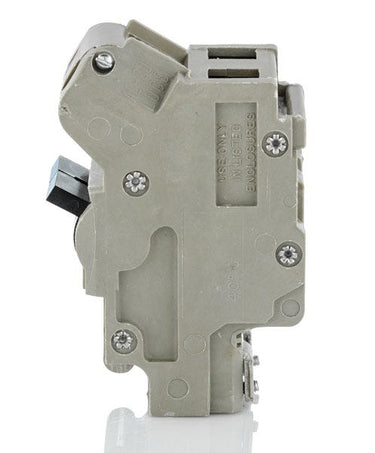

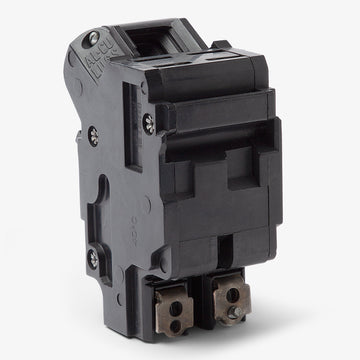

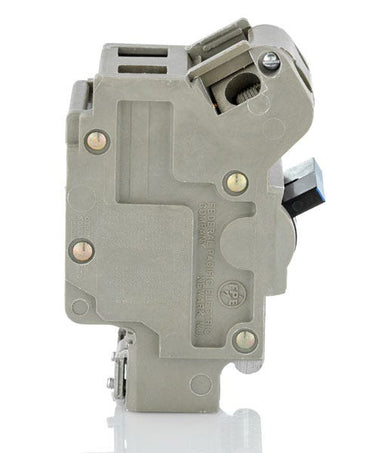

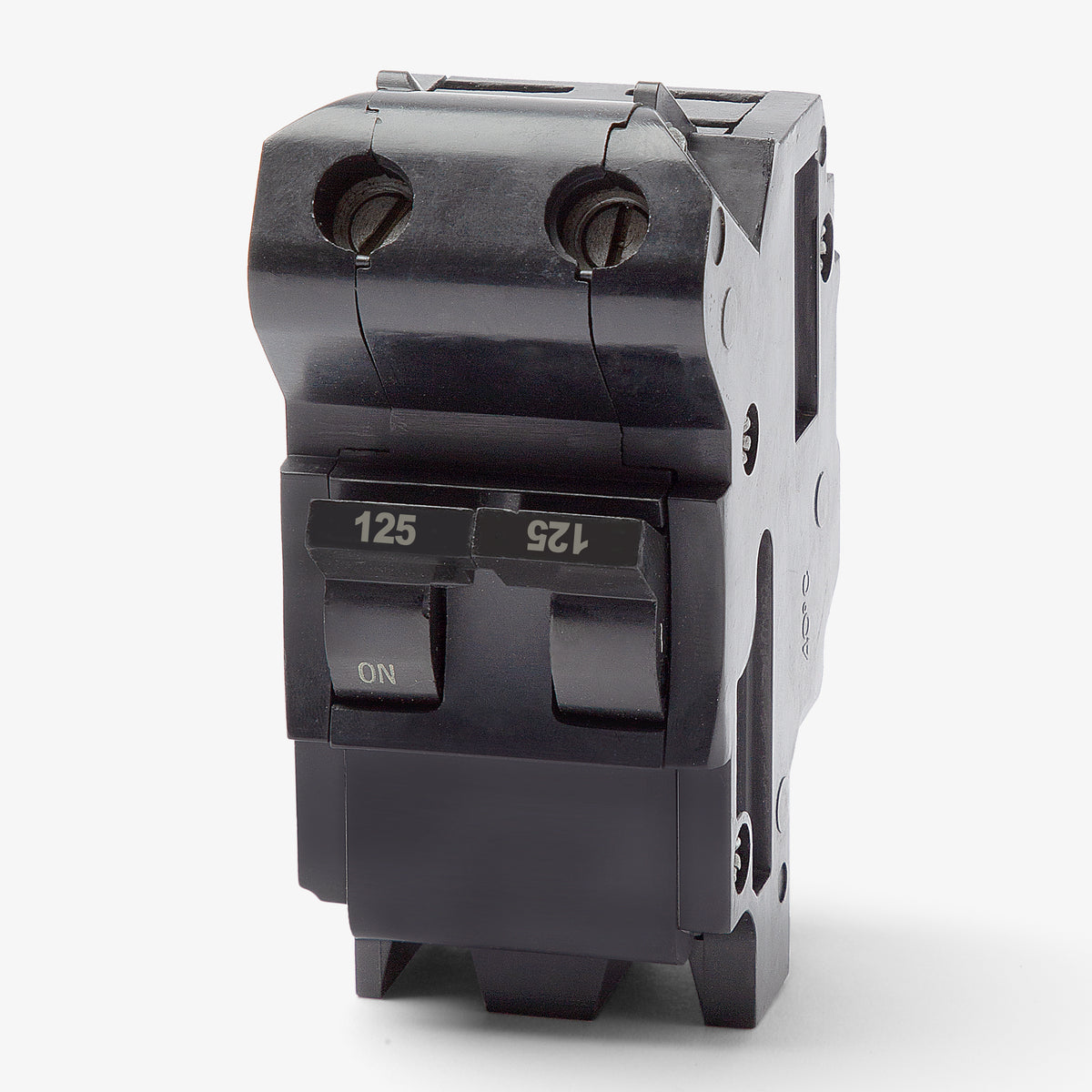

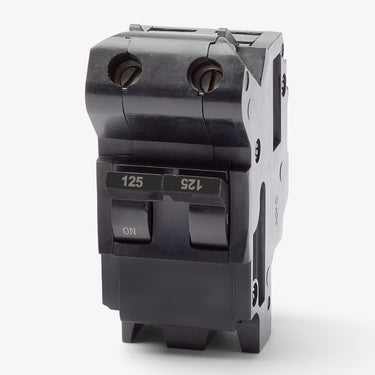

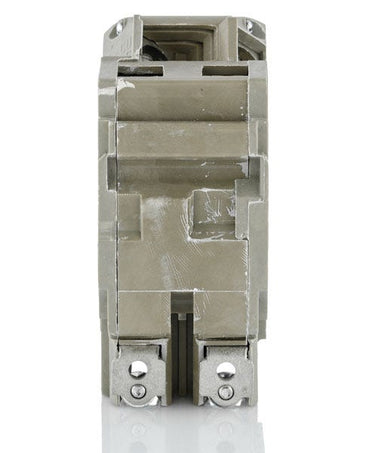

Federal Pacific NB125H Miniature Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Quantity
Federal Pacific NB125H - 125A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Federal Pacific NB125H - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Federal Pacific NB125H - 125A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description
High-capacity commercial environments demand robust fault handling, which this 125A, two-pole thermal-magnetic device provides. Operating at 120/240VAC, it features an upgraded 22kA interrupting rating to manage severe electrical surges safely. Maintaining legacy infrastructure depends on finding the right physical match. This hardware bolts firmly into Federal Pacific NB and NBLP panelboards. While the UBIF2125NB serves as a modern substitute, it only offers a 10kAIC rating.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NB |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 1-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the NB125H circuit breaker?
This bolt-on breaker is designed to install directly into legacy Federal Pacific NB and NBLP commercial panelboards without requiring aftermarket adapters.
Is there a modern replacement available for the Federal Pacific NB125H?
The Connecticut Electric UBIF2125NB is a modern substitute that fits the same panels. However, the UBIF2125NB has a 10kAIC rating, whereas the original NB125H features a higher 22kAIC interrupting rating. You must verify that a 10kAIC rating meets your facility fault current requirements before substituting.

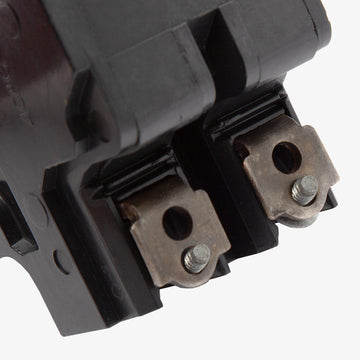

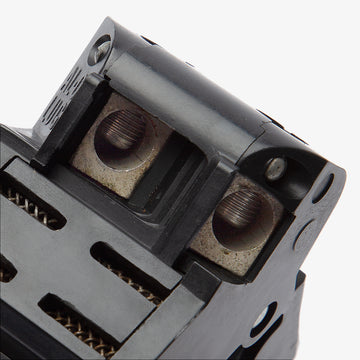

What wire sizes and materials are accepted by the lugs on this breaker?
The load side lugs accept aluminum or copper wire ranging from 1 AWG to 3/0 AWG.
Are Federal Pacific NB series breakers considered Stab-Lok?
No. The NB series consists of commercial bolt-on molded case circuit breakers. They are distinct from the residential Stab-Lok plug-on breakers that have been the subject of widespread safety concerns.
Are the trip settings adjustable on the NB125H?
No. This breaker features fixed thermal and fixed magnetic trip settings for both long-time and instantaneous protection.
