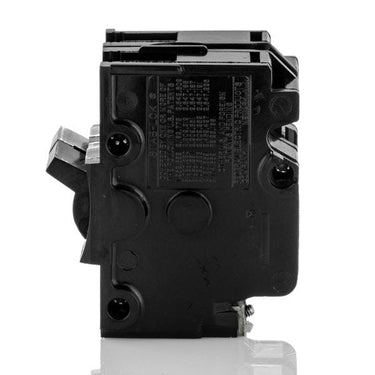

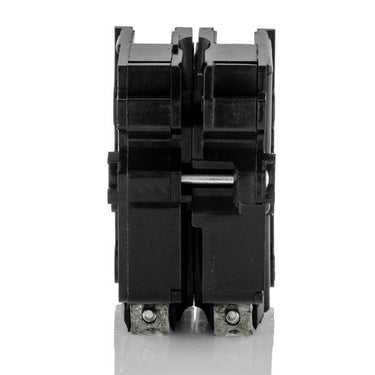

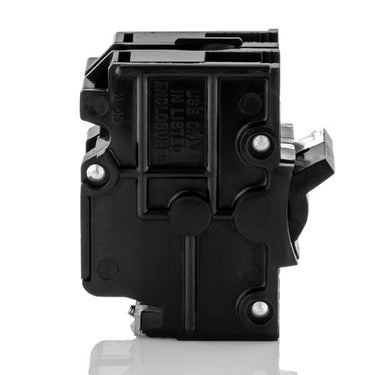

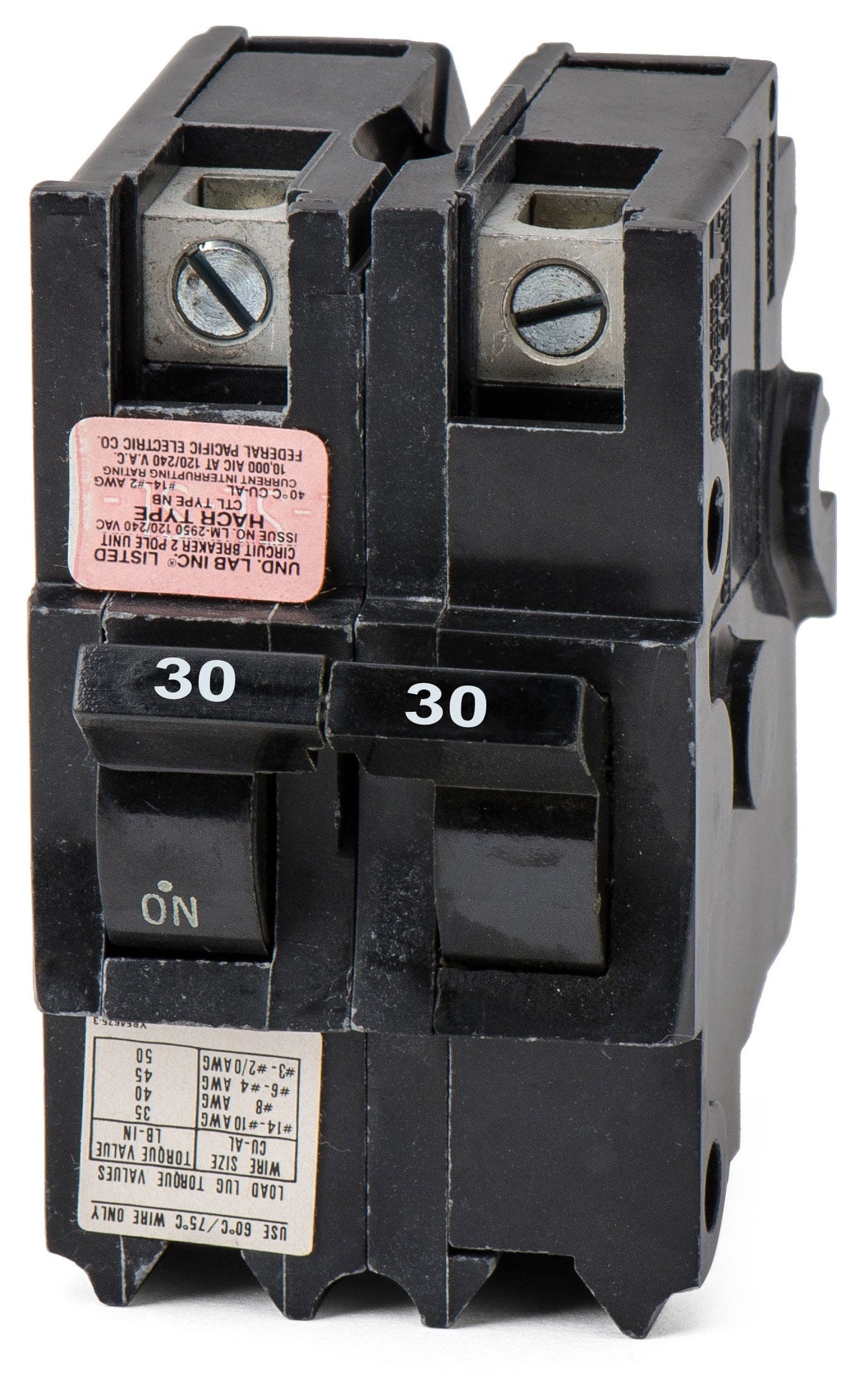

Federal Pacific NB221030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Federal Pacific
NB221030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NB221030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB221030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NB221030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221030 |
| Series | NB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Quantity
Federal Pacific NB221030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221030-R |
| Series | NB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Maintaining legacy electrical distribution networks demands precise hardware compatibility. This 30A, two-pole breaker fastens securely into Federal Pacific NB and NBLP panelboards to restore branch circuit functionality. Rated for 10kAIC at 120/240VAC, the thermal-magnetic design delivers consistent overcurrent response. Facilities can also utilize the UBIF230NB as a modern substitute for this frame.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221030-R |
| Series | NB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
7 answersWhich Federal Pacific panelboards will accept this circuit breaker?
The NB221030 is designed specifically for legacy Federal Pacific NB and NBLP series panelboards.
Does this breaker use the Federal Pacific Stab-Lok mounting design?
No. Unlike residential Stab-Lok plug-in breakers, the NB series features a secure bolt-on mounting mechanism designed for commercial distribution panels.
Can the thermal-magnetic trip settings be adjusted on this breaker?
No. The trip unit has fixed long-time and instantaneous protection settings that cannot be modified in the field.
What wire gauge range do the load terminals support?
The factory lug terminals are sized to accept conductors ranging from 14 AWG up to 2 AWG.
Is the NB221030 circuit breaker suitable for DC voltage applications?
This specific molded case circuit breaker is rated strictly for AC systems up to 240V and is not evaluated for direct current applications.
Can this breaker be installed in systems with high fault current availability?
The breaker has a maximum interrupting capacity of 10kA at 120/240VAC. It must not be installed in electrical systems where the available fault current exceeds this rating.
Is this a current production breaker from Federal Pacific?
Federal Pacific no longer manufactures these breakers. The NB221030 is considered a legacy component sourced specifically to support and maintain existing NB and NBLP electrical systems.
