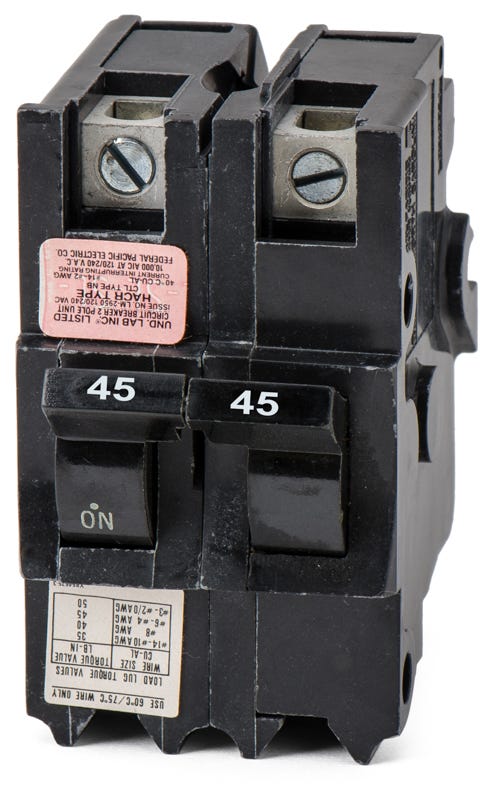

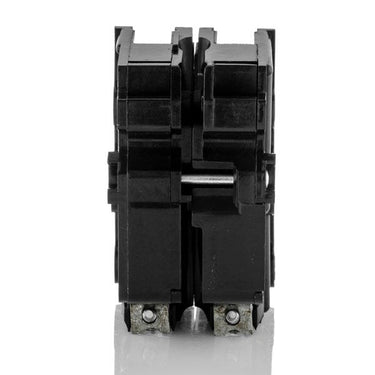

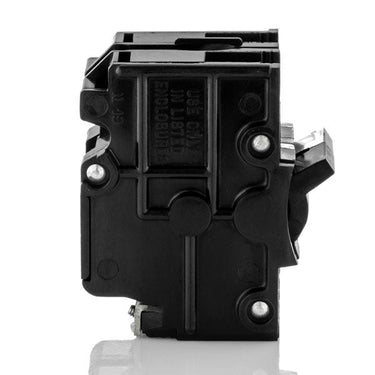

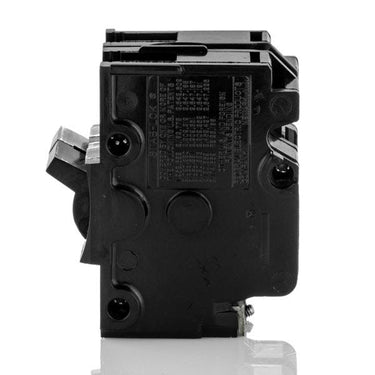

Federal Pacific NB221045 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Federal Pacific
NB221045
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NB221045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB221045 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NB221045 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221045 |
| Series | NB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Federal Pacific NB221045 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221045-R |
| Series | NB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
15A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Sourced for commercial and industrial applications, this 45-amp miniature circuit breaker restores functionality to older electrical infrastructures. It provides reliable thermal-magnetic trip functions for standard branch circuits. Designed to mount into Federal Pacific NB and NBLP panelboards, it serves as an exact match for aging hardware. This component crosses over to the UBIF245NB substitute, ensuring a proper fit without modifications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221045 |
| Series | NB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the NB221045 circuit breaker?
This breaker is designed specifically for installation in legacy Federal Pacific NB and NBLP panelboards.
What wire gauge range is supported by the lugs on this breaker?
The terminal lugs accommodate wire sizes from 14 AWG up to 2 AWG.
What is the direct aftermarket cross-reference for the NB221045?
The UBIF245NB is the direct aftermarket substitute for this 45-amp, 2-pole Federal Pacific breaker.
Is the Federal Pacific NB221045 still in active production?
No, Federal Pacific Electric is no longer manufacturing circuit breakers. Replacements are sourced from existing legacy stock or through aftermarket substitutes like the UBIF245NB.
Does this breaker snap into the panel or bolt on?
The NB221045 requires a bolt-on connection, meaning it must be physically bolted to the panelboard busbar for secure installation.
What type of trip functions are included in the NB221045?
It features a thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection against overcurrent and short-circuit faults.
