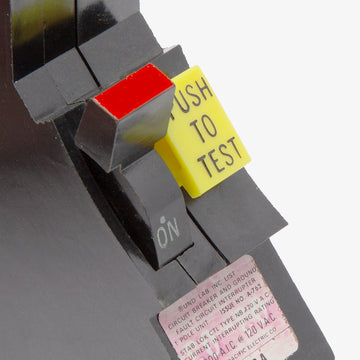

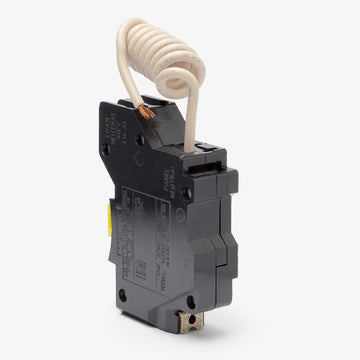

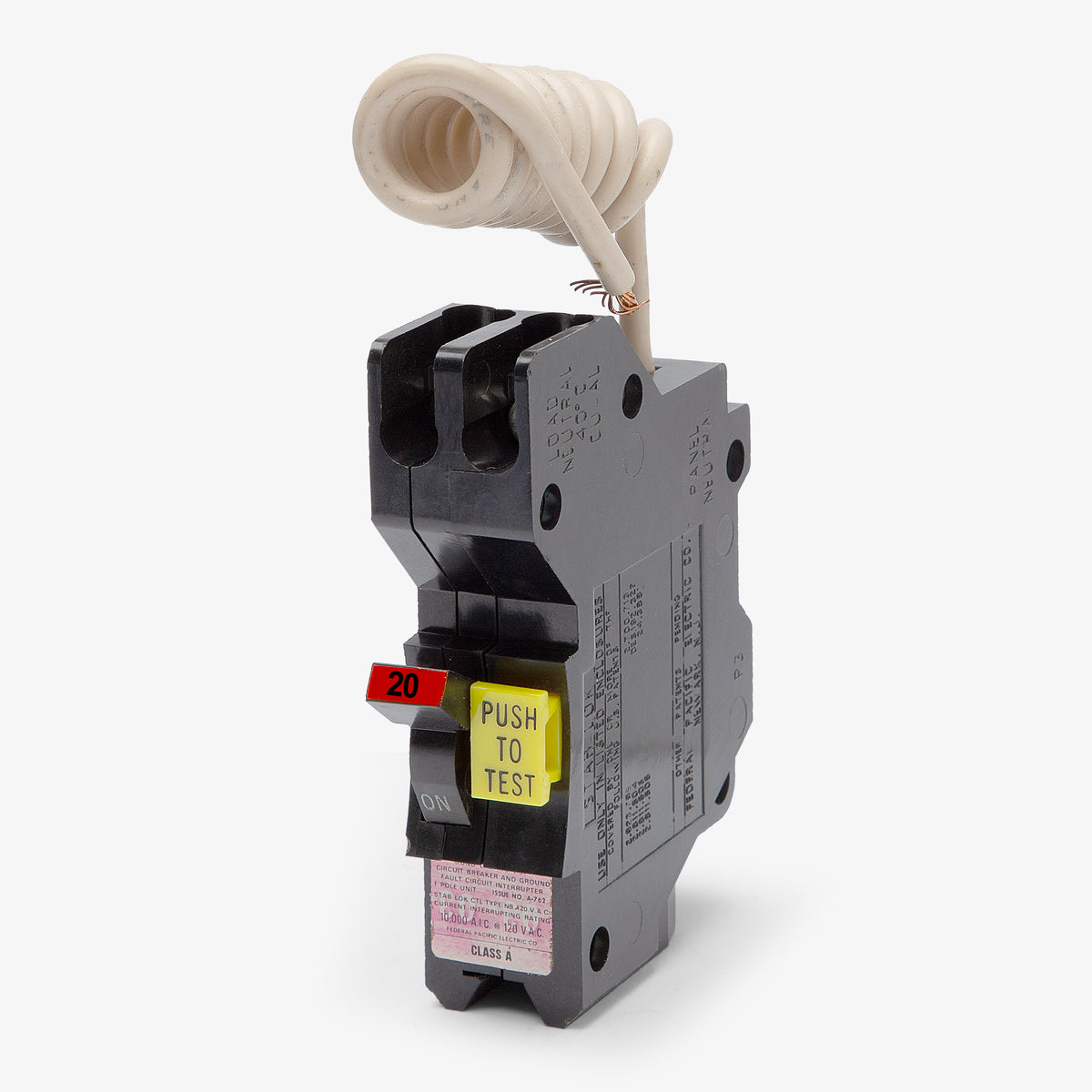

Federal Pacific NBGF20 GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Federal Pacific NBGF20 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NBGF20 - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NBGF20-R |
| Series | NB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Federal Pacific NBGF20 - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NBGF20-R |
| Series | NB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description
Delivering essential personnel protection for commercial applications, this 20-amp breaker combines standard overcurrent defense with 5mA ground fault detection. The included pigtail neutral ensures proper installation for circuits requiring dedicated GFCI monitoring. Designed to mount into legacy Federal Pacific NB and NBLP panelboards, the bolt-on configuration provides a secure mechanical connection. It functions as a reliable alternative to the UBIF020N substitute.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NBGF20-R |
| Series | NB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWill the NBGF20 fit in a standard FPE Stab-Lok residential load center?
No. This is an NB-frame bolt-on breaker designed strictly for legacy Federal Pacific NB and NBLP commercial panelboards. It is not compatible with residential Stab-Lok enclosures that use plug-on NA or NC breakers.
How is the neutral connection wired for this GFCI breaker?

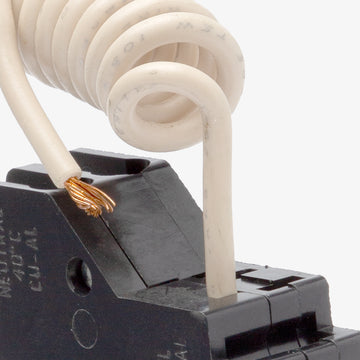

The NBGF20 includes a pigtail neutral wire that must be routed and secured directly to the panelboard neutral bus to enable proper ground-fault monitoring for the circuit.
What is the aftermarket cross-reference for the NBGF20?
The Connecticut Electric UBIF020N serves as a direct aftermarket substitute for this Federal Pacific GFCI breaker, offering a modern replacement option for aging NB panelboards.
What does the LIG trip function code indicate on this breaker?
The LIG designation means the breaker combines standard thermal-magnetic overcurrent protection (Long-Time and Instantaneous) with dedicated Ground-Fault detection to protect personnel from electrical shock.
Can the NBGF20 be used to upgrade an existing standard circuit to GFCI protection?
Yes, this breaker can replace a standard single-pole NB breaker in compatible panelboards to add ground-fault protection to an existing branch circuit without requiring external GFCI receptacles.
