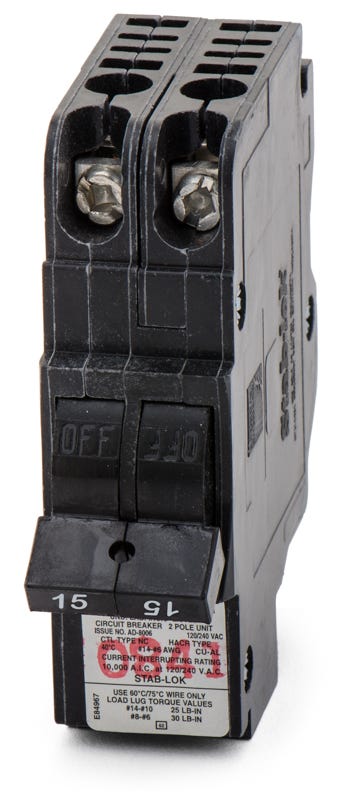

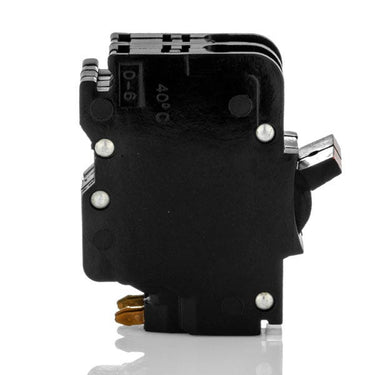

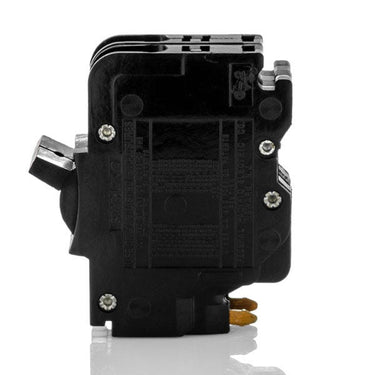

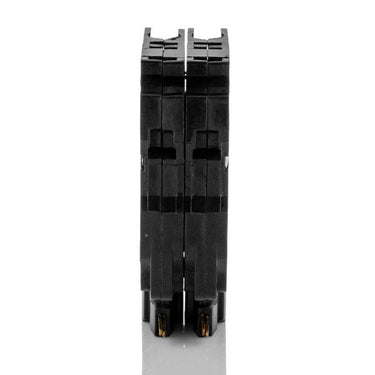

Federal Pacific NC0215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Federal Pacific
NC0215
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NC0215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NC0215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NC0215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0215 |
| Series | NC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Quantity
Federal Pacific NC0215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0215-R |
| Series | NC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Similar Items
40A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Vintage electrical enclosures demand exact-fit components, making this 15A two-pole breaker essential for Federal Pacific Stab-Lok load centers. Occupying two half-inch spaces for a total width of one inch, it delivers reliable thermal-magnetic protection for 120/240V applications. This unit replaces the UBIF0215N, ensuring continuous operation of older residential infrastructure. The color-coded handle provides quick visual confirmation of the breaker's operational status.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0215 |
| Series | NC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Product FAQs
4 answersWhat type of load center is required for the NC0215 breaker?
This breaker is designed specifically for vintage Federal Pacific Stab-Lok load centers. It features the proprietary plug-on mounting required to connect to Stab-Lok busbars.
How much panel space does the NC0215 two-pole breaker occupy?
As part of the Federal Pacific NC thin series, each pole is 1/2 inch wide. This two-pole breaker requires two adjacent 1/2-inch spaces, occupying a total of 1 inch of width in the panel.
What is the modern replacement for the Federal Pacific NC0215?
The Connecticut Electric UBIF0215N is the direct modern cross-reference for this breaker. It is an ETL-listed replacement manufactured specifically to fit older Federal Pacific Stab-Lok panels.
Are there known safety issues with Federal Pacific Stab-Lok breakers?
Yes, original Federal Pacific Electric (FPE) Stab-Lok panels and breakers have well-documented safety concerns, particularly regarding their failure to trip during overcurrent conditions. Many industry professionals recommend a complete panel upgrade rather than installing replacement breakers.
