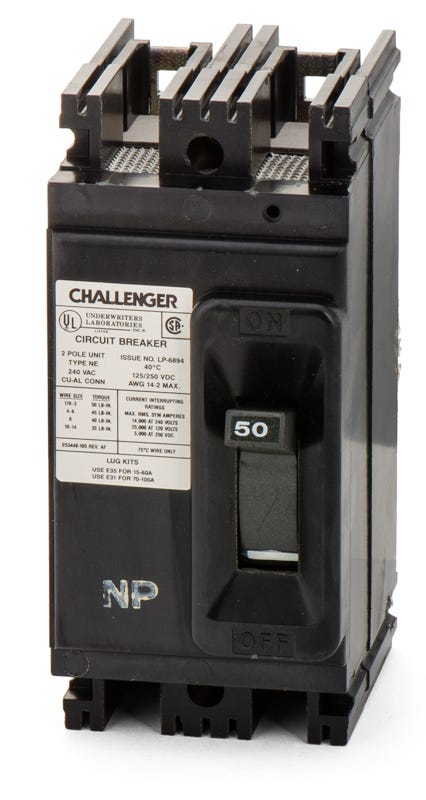

Federal Pacific NE224050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Federal Pacific
NE224050
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE224050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE224050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NE224050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE224050 |
| Series | NE |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Federal Pacific NE224050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Similar Items
40A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Built to support aging electrical infrastructure, the 50A NE224050 offers robust long-time and instantaneous trip functions. This two-pole device is essential for facility managers maintaining 240VAC commercial distribution networks. Fastening securely into Federal Pacific NE panelboards, the bolt-on configuration provides a highly reliable connection. It serves as a true substitute for the UBINE224050, allowing for straightforward maintenance of classic enclosures.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE224050 |
| Series | NE |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NE224050 circuit breaker?
The NE224050 is a bolt-on molded case circuit breaker designed specifically for legacy Federal Pacific NE series commercial panelboards. It will not fit standard residential load centers.
What wire gauge range is supported by the NE224050 terminals?
The integrated lugs on this 50A breaker accommodate conductors ranging from 14 AWG to 2 AWG.
What is a direct replacement or cross-reference for the NE224050?
The UBINE224050 is a direct aftermarket substitute for the original Federal Pacific NE224050, matching the physical dimensions, bolt-on mounting, and electrical specifications required for NE panelboards.
Is the NE224050 part of the Federal Pacific Stab-Lok series?
No. The NE224050 is an NE frame commercial bolt-on breaker. It is completely different from the plug-on Stab-Lok breakers commonly found in older residential FPE load centers and cannot be used as a replacement for them.
What trip functions are included in the NE224050 thermal-magnetic breaker?
This breaker features fixed long-time and instantaneous (LI) trip functions. The thermal component provides delayed protection against sustained overloads, while the magnetic component trips instantly during severe short circuits up to 18kAIC at 240VAC.
How is the NE224050 secured inside the panelboard?
This breaker utilizes a bolt-on connection. It must be mechanically fastened to the busbar of a compatible Federal Pacific NE panelboard using screws, ensuring a secure and reliable contact for commercial applications.
