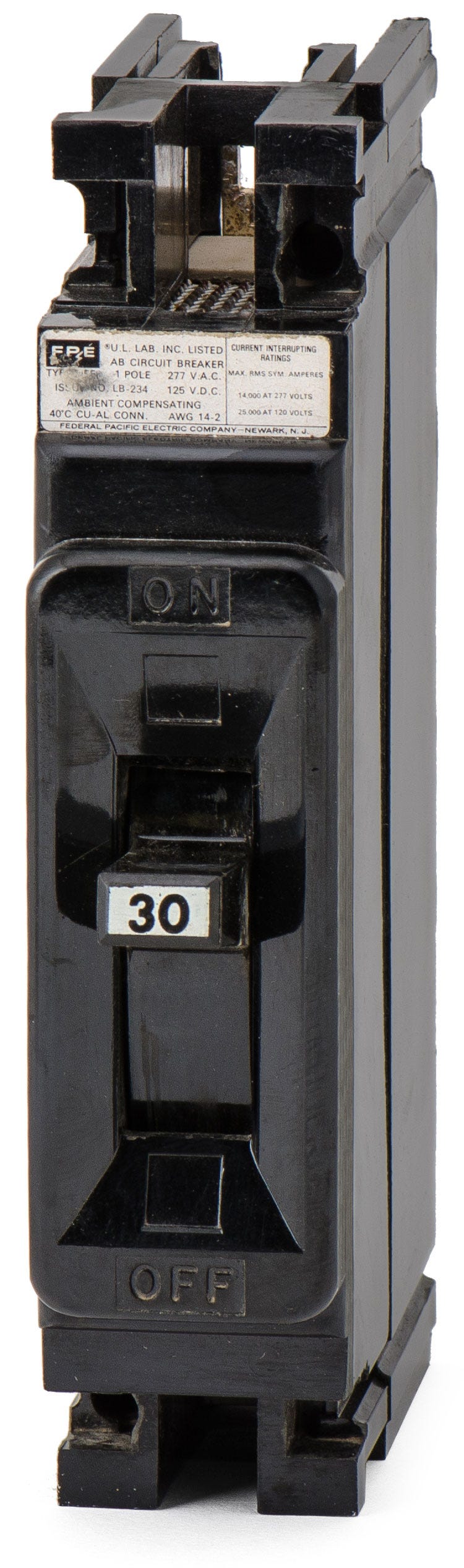

Federal Pacific NEF214030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Federal Pacific
NEF214030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF214030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF214030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Part of the classic N-Frame series, the Federal Pacific NEF214030 is a single-pole MCCB designed for commercial systems. It provides dependable protection for 30-amp circuits. This bolt-on breaker serves as an exact replacement for aging infrastructure. It mounts seamlessly into original Federal Pacific NEF panelboards, allowing facilities to maintain existing equipment without adapters. Rated 14kAIC at 277VAC, the unit features a non-interchangeable trip and is suitable for reverse feed.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF214030 |
| Series | NEF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | NEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
6 answersWhat panelboards are compatible with the Federal Pacific NEF214030?
This 1-pole molded case circuit breaker is specifically designed for installation in legacy Federal Pacific NEF panelboards. It serves as a direct replacement for aging commercial infrastructure without requiring retrofit adapters.
Is the NEF214030 a Stab-Lok residential breaker?
No. The NEF214030 is a commercial-grade N-Frame molded case circuit breaker with a secure bolt-on connection. It is completely distinct from the Federal Pacific Stab-Lok residential plug-on series and will not fit Stab-Lok load centers.
Can the NEF214030 be used in DC electrical systems?
Yes. In addition to its standard 120VAC and 277VAC ratings, this breaker is rated for use in DC circuits up to 125VDC. This makes it suitable for specific industrial control or battery-backed applications.
What wire gauge is required for the NEF214030 terminals?
The integrated lugs accept wire sizes ranging from 14 AWG to 2 AWG. Always verify local electrical codes for proper wire sizing based on the 30-amp continuous current rating and ambient temperature.
Are the trip settings on the NEF214030 adjustable?
No. This breaker utilizes fixed thermal and fixed magnetic trip elements to provide long-time and instantaneous (LI) fault protection. The trip thresholds are factory-set and cannot be modified in the field.
What are the advantages of the bolt-on connection for this breaker?
The bolt-on mounting style provides a highly secure, vibration-resistant mechanical and electrical connection to the panelboard bus. This is critical in commercial and industrial environments where loose connections could lead to arcing or overheating.
