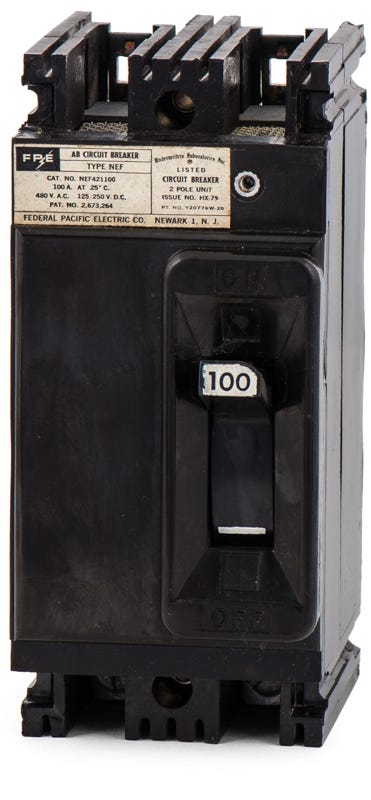

Federal Pacific NEF421100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Federal Pacific
NEF421100
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF421100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

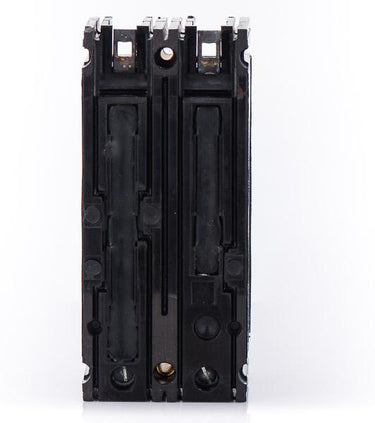

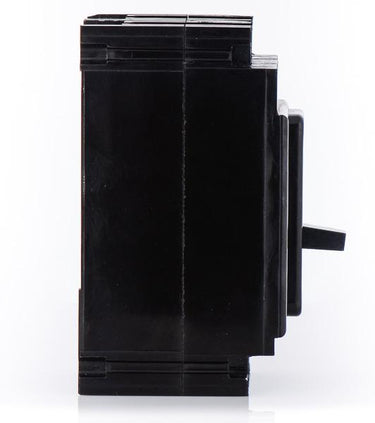

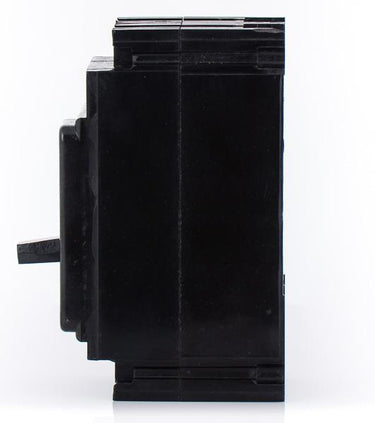

Federal Pacific NEF421100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Restoring power to older commercial facilities requires exact-fit components like the Federal Pacific NEF421100. This 2-pole, 100-amp molded case circuit breaker delivers essential thermal-magnetic protection for industrial distribution systems operating up to 480VAC or 250VDC. Designed as a drop-in replacement, it bolts into legacy FPE NEF panelboards without requiring aftermarket adapters. The breaker provides a 14kAIC rating at 480V and features a vibration-tested, reverse-feed design.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF421100-R |
| Series | NEF |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
7 answersWhich panelboards are compatible with the NEF421100 circuit breaker?
This bolt-on breaker is designed specifically for use in legacy Federal Pacific NEF series panelboards.
Is there a direct cross-reference or replacement available for the NEF421100?
Yes, the Federal Pacific HEG421100 serves as an exact replacement. It fits the same legacy panels but offers a higher interrupting rating of 22kAIC at 480VAC.
Can the NEF421100 be used in direct current applications?
Yes, this breaker carries a DC interrupting rating of 10kAIC at 250VDC, making it suitable for compatible direct current circuits.
Are the trip settings on the NEF421100 adjustable?
No, this breaker utilizes a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
What wire sizes do the factory lugs on this breaker accept?
The included lugs accommodate wire gauges ranging from 4 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation.
Does the NEF421100 require specialized mounting hardware?
It features a standard bolt-on connection designed to mount directly to the busbars of legacy Federal Pacific NEF panelboards without requiring aftermarket adapters.
Is this breaker part of the residential Stab-Lok series?
No, the NEF421100 is an N-frame molded case circuit breaker designed for commercial and industrial Federal Pacific NEF panelboards, not residential Stab-Lok load centers.
