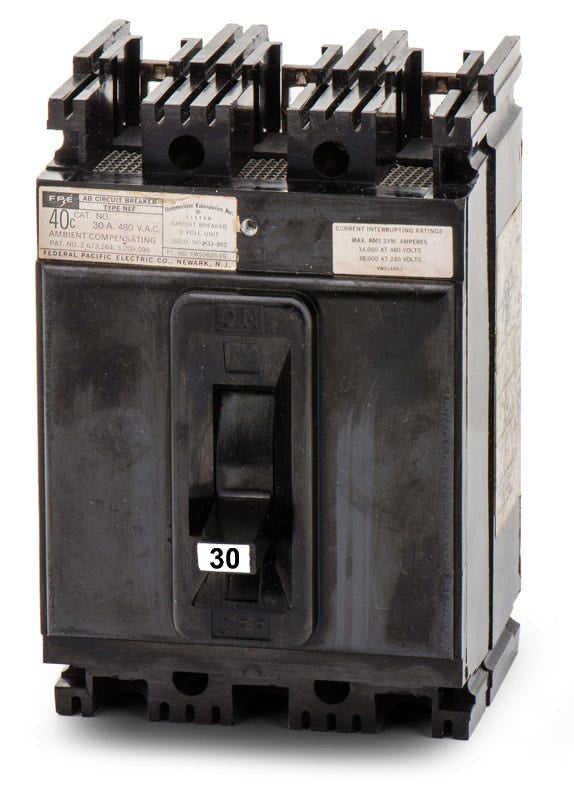

Federal Pacific NEF435030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
NEF435030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF435030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF435030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NEF435030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF435030 |
| Series | NEF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Quantity
Federal Pacific NEF435030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NEF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Manufactured for heavy-duty commercial use, this 30A molded case circuit breaker offers robust thermal-magnetic trip functions. The bolt-on design fits perfectly into older Federal Pacific NEF panelboards, acting as a substitute for NEF433030 and NEF437030 units. With a 14kAIC rating at 480VAC, it includes non-interchangeable trip elements and supports reverse feed configurations for versatile industrial wiring.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF435030 |
| Series | NEF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat panelboards accept the NEF435030 circuit breaker?
This N-frame breaker is designed exclusively for use in legacy Federal Pacific NEF panelboards. It requires a bolt-on connection to the panel busbar.
What wire gauge range is supported by the terminal lugs on the NEF435030?
The integrated lugs accept wire sizes from 14 AWG up to 2 AWG. Ensure proper torque specifications are followed during installation to maintain a secure connection.
Does the NEF435030 support DC voltage applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 250VDC applications with a maximum interrupting capacity of 10kA.
Are the trip settings adjustable on the NEF435030?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection parameters cannot be field-adjusted.
Can the NEF435030 be used as a plug-in breaker?
No, this is strictly a bolt-on circuit breaker. It must be mechanically bolted to the busbar of a compatible Federal Pacific panelboard.
