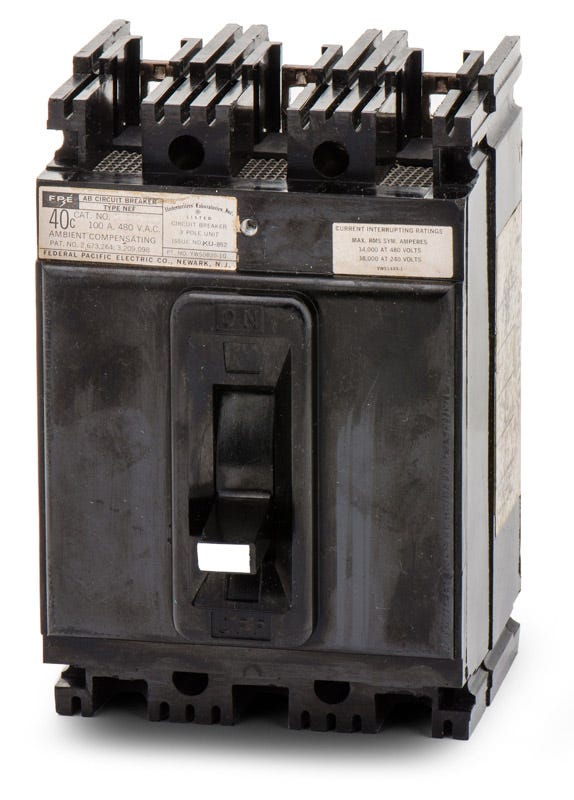

Federal Pacific NEF437020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Federal Pacific
NEF437020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF437020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF437020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NEF437020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF437020-R |
| Series | NEF |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Quantity
Federal Pacific NEF437020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF437020-R |
| Series | NEF |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Engineered for commercial applications, the Federal Pacific NEF437020 provides reliable overcurrent protection in a 3-pole configuration. This legacy molded case circuit breaker utilizes fixed thermal-magnetic trip technology. Designed as an exact drop-in solution, it installs into older Federal Pacific NEF panelboards without requiring aftermarket adapters. The bolt-on mounting style ensures a secure connection. Rated for 14kAIC at 480VAC, it is suitable for reverse feed applications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF437020-R |
| Series | NEF |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
5 answersWhich panelboards accept the NEF437020 circuit breaker?
This breaker is engineered as an exact drop-in replacement for legacy Federal Pacific NEF panelboards. It bolts directly to the busbar without requiring aftermarket adapters.
What wire sizes are compatible with the lugs on the NEF437020?
The terminal lugs on this N-frame breaker accommodate wire gauges ranging from 14 AWG to 2 AWG.
Is the NEF437020 rated for direct current (DC) systems?
Yes, alongside its standard AC ratings, this thermal-magnetic breaker is rated for DC applications up to 250VDC. This provides flexibility for specific industrial control circuits and DC systems.
Are Federal Pacific NEF breakers still manufactured?
Federal Pacific Electric is no longer in business. The NEF437020 is sourced as a legacy replacement to maintain existing infrastructure, allowing electricians to service older NEF panelboards without a complete system overhaul.
Can the NEF437020 be used in reverse feed applications?
Yes, this breaker is constructed and tested for reverse feed applications, offering additional wiring flexibility for commercial and industrial installations.
