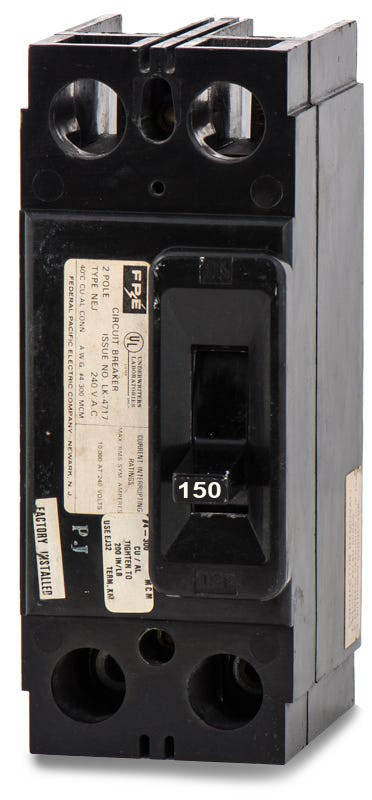

Federal Pacific NEJ223150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Quantity
Federal Pacific NEJ223150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NEJ223150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ223150 |
| Series | NEJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Quantity
Federal Pacific NEJ223150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ223150 |
| Series | NEJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Description
Maintaining aging electrical infrastructure requires exact-fit components like the NEJ223150 molded case circuit breaker. This 150-amp device delivers essential long-time and instantaneous trip functions for commercial applications. Designed for bolt-on installation, this two-pole breaker mounts into legacy Federal Pacific panelboards. It provides a seamless replacement solution, eliminating the need for complex retrofits or aftermarket adapters. The breaker features a 10kAIC rating at 240VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ223150 |
| Series | NEJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the NEJ223150?
This breaker fits legacy Federal Pacific commercial panelboards designed for N-Frame devices. It will not fit into standard residential load centers or panels requiring plug-on connections.
What mounting hardware is needed to install this breaker?
Installation in legacy Federal Pacific panelboards often requires specific bus connection strap kits. Depending on whether you have a CDP or BDP series panel, you may need hardware kits like the NEJ1K or NEJ3K to properly secure the breaker to the busbar.
What are the conductor limits for the NEJ223150 lugs?
The standard lugs accept wire sizes from 4 AWG up to 300 kcmil. When installing, ensure the conductor material and size align with the 150A rating and that the lugs are torqued to the correct specification.
Are the trip settings on the NEJ223150 adjustable?
No. This breaker features a fixed thermal-magnetic trip unit. The long-time overload protection and instantaneous short-circuit protection (LI) are factory set and cannot be modified in the field.
Is the NEJ223150 affected by the Federal Pacific Stab-Lok safety concerns?
No. The NEJ223150 is a commercial N-Frame molded case circuit breaker with a secure bolt-on connection. It is an entirely different design from the residential Stab-Lok plug-in breakers that are commonly associated with safety issues.
Can this 240V breaker be used on a 480V system?
No. The NEJ223150 has a strict maximum voltage rating of 240VAC. Using it in any capacity on a 480V system violates its safety listing and poses a severe arc flash and fire hazard.
How do I cross-reference a replacement for an older NEJ223150?
Because Federal Pacific is obsolete, direct replacements require matching the original NEJ frame, 150A rating, and bolt-on mounting style. Aftermarket adapters are generally not required if you source an exact N-Frame replacement.
