Federal Pacific NEJ233225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Federal Pacific
NEJ233225
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEJ233225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

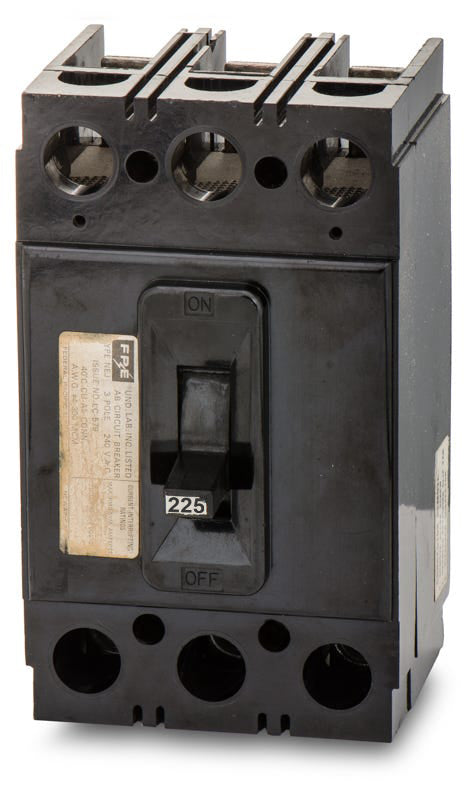

Federal Pacific NEJ233225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Rated for 225A, the Federal Pacific NEJ233225 serves as a three-pole molded case circuit breaker engineered for commercial and industrial distribution. It maintains safe, continuous operation for facilities utilizing older NEJ frame infrastructure. The bolt-on device installs into legacy Federal Pacific panelboards, providing an exact replacement fit without requiring modifications. It serves as an exact cross-reference for UBINEJ233225.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ233225 |
| Series | NEJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersCan I install the NEJ233225 in a standard residential load center?
No, this is an N-frame commercial molded case circuit breaker designed specifically for legacy Federal Pacific panelboards and switchboards. It will not fit in standard residential load centers.
What is the aftermarket cross-reference for the Federal Pacific NEJ233225?
The Connecticut Electric UBINEJ233225 is a direct aftermarket replacement. It is engineered to fit the same legacy Federal Pacific panelboards without requiring modifications or adapters.
Does the NEJ233225 accept aluminum wiring?
Yes, the standard load side lugs on this breaker are rated for both aluminum and copper conductors ranging from 4 AWG to 300 kcmil.
Are the trip settings adjustable on the NEJ233225?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Is the NEJ233225 a Stab-Lok breaker?
No. While Federal Pacific is known for residential Stab-Lok breakers, the NEJ233225 is a commercial-grade, bolt-on molded case circuit breaker designed for heavy-duty panelboards.
What mounting hardware is required to install this breaker in a CDP panelboard?
Installing an NEJ frame breaker into a legacy Federal Pacific CDP panelboard typically requires an NEJ1K mounting hardware kit.
