Federal Pacific NEJH223150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Quantity

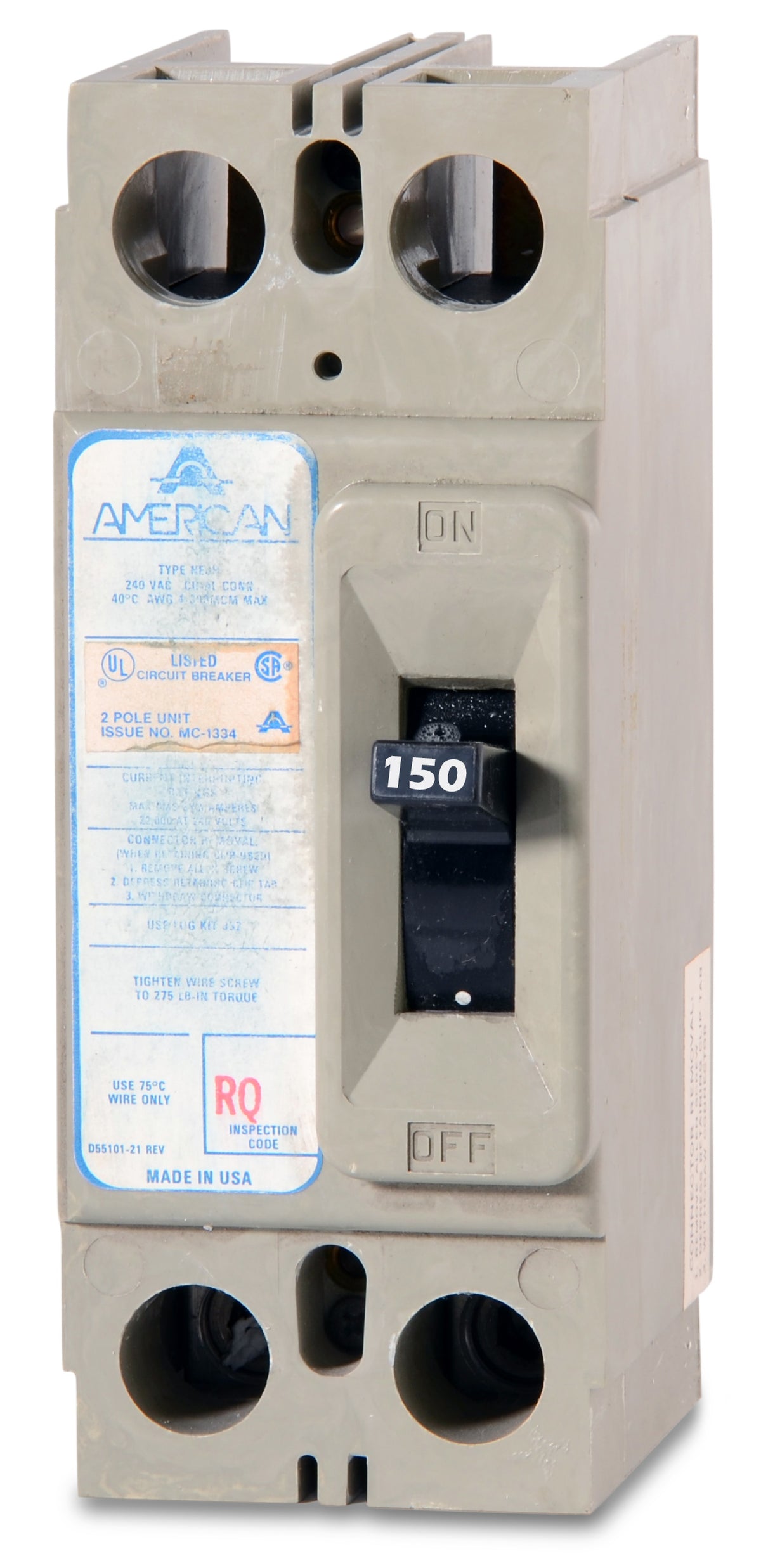

Federal Pacific NEJH223150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
A drop-in replacement for aging commercial systems, the Federal Pacific NEJH223150 is a 150A, 2-pole molded case circuit breaker. It provides reliable thermal-magnetic trip functions for robust protection. Designed for legacy infrastructure, this bolt-on MCCB mounts into Federal Pacific NDP panelboards. It serves as an exact match for original installations and cross-references with UBI substitute UBINEJH223150. Rated 18kAIC at 240VAC, it delivers high interrupting capacity.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJH223150 |
| Series | NEJH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NDP Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
4 answersIs the NEJH223150 compatible with Federal Pacific Stab-Lok load centers?
No. The NEJH223150 is a commercial N-Frame molded case circuit breaker designed exclusively for Federal Pacific NDP panelboards. It will not fit in residential Stab-Lok enclosures.
Is there an aftermarket equivalent available for the NEJH223150?
Yes. The UBI substitute UBINEJH223150 serves as a direct drop-in replacement. It shares the same physical dimensions, bolt-on configuration, and electrical ratings as the original Federal Pacific breaker.
Does the NEJH223150 require aftermarket adapters to mount into an NDP panelboard?
No. This breaker is an exact fit for legacy Federal Pacific NDP panelboards and bolts directly to the bus without the need for modification or aftermarket mounting hardware.
Are the thermal and magnetic trip elements on the NEJH223150 adjustable?
No. This breaker utilizes fixed thermal and fixed magnetic trip elements for its long-time and instantaneous (LI) protection. The trip curve cannot be modified in the field.
