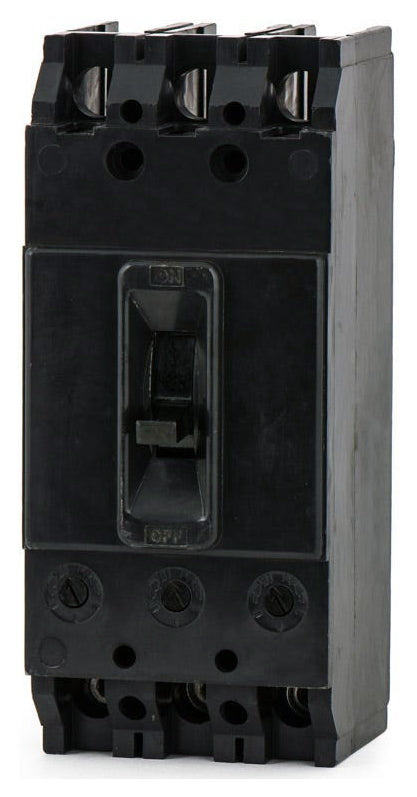

Federal Pacific NFJ434200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Federal Pacific
NFJ434200
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NFJ434200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NFJ434200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Federal Pacific NFJ434200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ434200-R |
| Series | NFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | NFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NFJ Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Sold out
Quantity
Federal Pacific NFJ434200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | NFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NFJ Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
3 Pole Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy N-Frame series, the Federal Pacific NFJ434200 is a 3-pole molded case circuit breaker designed for commercial power distribution. This unit installs into Federal Pacific NFJ panelboards, offering an exact fit without the need for aftermarket adapters. It serves as a direct substitute for aging or failed hardware to restore system integrity.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ434200-R |
| Series | NFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | NFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NFJ Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat hardware is required to mount this breaker into a Federal Pacific panelboard?
Installing the NFJ434200 requires a specific mounting hardware kit, such as the KCDP2 or NFJ1K, depending on your panelboard type. These kits typically include the necessary cover plates, Z-brackets, and bus connectors for a secure bolt-on installation.
Can I use an HFJ frame breaker to replace the NFJ434200?
Yes. The Federal Pacific HFJ434200 is an exact drop-in replacement for the NFJ434200. It shares the same physical dimensions and mounting hardware requirements while offering a higher interrupting capacity.
Is the NFJ434200 affected by the same safety recalls as Federal Pacific Stab-Lok breakers?
No. The NFJ434200 is a commercial-grade, bolt-on molded case circuit breaker. The widely publicized safety concerns and recalls regarding Federal Pacific equipment primarily apply to their residential Stab-Lok plug-on breakers and load centers, not the heavy-duty N Frame series.
Can the NFJ434200 be installed in a twin branch configuration?
Yes. When equipped with the appropriate dual branch mounting hardware, such as the NFJ1K kit, two NFJ or HFJ frame breakers can be mounted directly across from each other in compatible Federal Pacific CDP panelboards.
Are the trip settings on the NFJ434200 adjustable?
The thermal element for long-time overload protection is fixed, but the magnetic element for instantaneous short-circuit protection is adjustable. This allows electricians to fine-tune the instantaneous trip threshold based on the specific load characteristics.
What are the conductor requirements for the load side lugs?
The factory-installed lugs accept conductors ranging from 4 AWG to 300 kcmil. Always verify that the wire insulation temperature rating aligns with the 40C ambient temperature calibration of the breaker.
