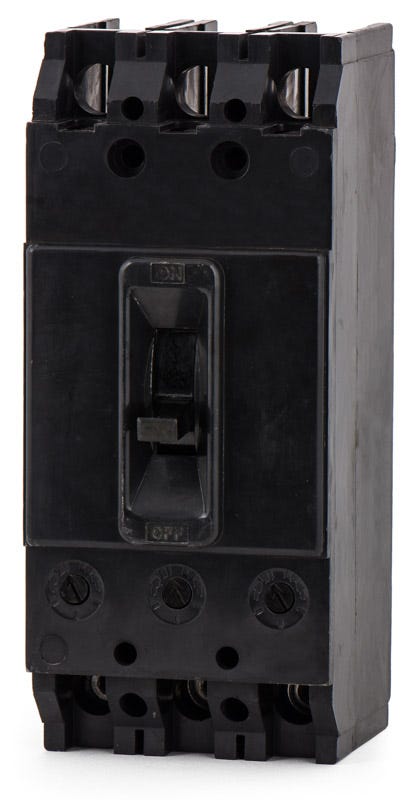

Federal Pacific NFJ437150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Federal Pacific
NFJ437150
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NFJ437150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NFJ437150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NFJ437150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ437150-R |
| Series | NFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Federal Pacific NFJ437150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ437150-R |
| Series | NFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 150A Federal Pacific MCCB provides robust thermal-magnetic protection. The three-pole design ensures reliable performance across demanding electrical environments. It mounts into legacy FPE panelboards, serving as an exact replacement for aging or failed components. The bolt-on connection guarantees a secure fit without requiring adapters. Rated for 18kAIC at 480VAC and 25kAIC at 240VAC, it features non-interchangeable trip units.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NFJ437150-R |
| Series | NFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures are compatible with the NFJ437150 circuit breaker?
This breaker is designed specifically for legacy Federal Pacific (FPE) panelboards and switchboards configured to accept N-Frame bolt-on circuit breakers.
How is the NFJ437150 installed into the panelboard?
It utilizes a standard bolt-on connection, allowing it to mount directly to the panel busbar for a secure, vibration-resistant fit without requiring additional mounting adapters.
What wire sizes can be used with the terminals on this breaker?
The lugs accept wire gauges from 4 AWG up to 300 kcmil. Ensure you use properly sized conductors based on the 150A rating and local electrical codes.
How does the trip unit function on the NFJ437150?
It features a thermal-magnetic (LI) trip unit. The thermal element provides fixed long-time protection against sustained overloads, while the magnetic element offers adjustable instantaneous protection against short circuits.
Is the Federal Pacific NFJ437150 still manufactured?
No, Federal Pacific Electric (FPE) is no longer in business. This N-Frame breaker is considered a legacy component, used primarily as an exact replacement to maintain existing FPE infrastructure.
Can the NFJ437150 be used in direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kA interrupting capacity.
