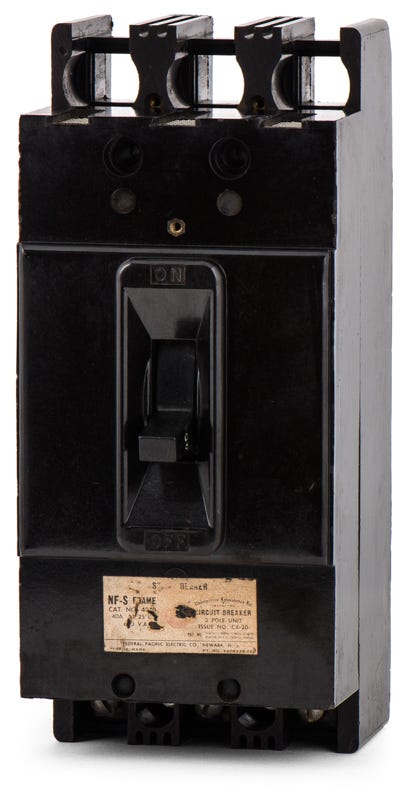

Federal Pacific NFS4340 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Federal Pacific
NFS4340
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NFS4340
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NFS4340 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging infrastructure, the Federal Pacific NFS4340 is a 3-pole, 40A molded case circuit breaker. It is designed for commercial and industrial applications requiring 600VAC power distribution. This plug-on MCCB mounts into original Federal Pacific NFS panelboards. Utilizing exact N-Frame dimensions and stab-in mounting, it eliminates the need for retrofits when replacing obsolete components. Rated 18 kAIC at 600VAC, it provides standard LI thermal-magnetic protection.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NFS4340-R |
| Series | NFS |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NFS Panelboards |
| Wire Gauge | 8-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the NFS4340 circuit breaker?
This plug-on N-frame breaker is designed exclusively for installation in legacy Federal Pacific NFS panelboards. It uses a stab-in mounting mechanism for a direct fit without requiring retrofit adapters.
What wire sizes are accepted by the lugs on this 40-amp breaker?
The terminal lugs on this unit accept wire ranging from 8 AWG to 4 AWG. Ensure proper torque specifications are followed during installation.
Can this breaker be used in 480V or 600V systems?
Yes, it is rated for a maximum of 600VAC and provides an 18kA interrupting capacity at both 240V and 600V AC.
Is the Federal Pacific NFS4340 a direct replacement for older N-frame breakers?
Yes, it matches the exact dimensions and stab-in mounting style of original Federal Pacific N-frame breakers, making it a drop-in replacement for aging infrastructure.
What type of trip unit is included in this breaker?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions for standard overcurrent and short-circuit protection.
Does this breaker require a separate mounting kit for installation?
No, the NFS4340 features a plug-on connection type that stabs directly into the bus of compatible Federal Pacific NFS panelboards, requiring no additional mounting hardware.
Is this circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
