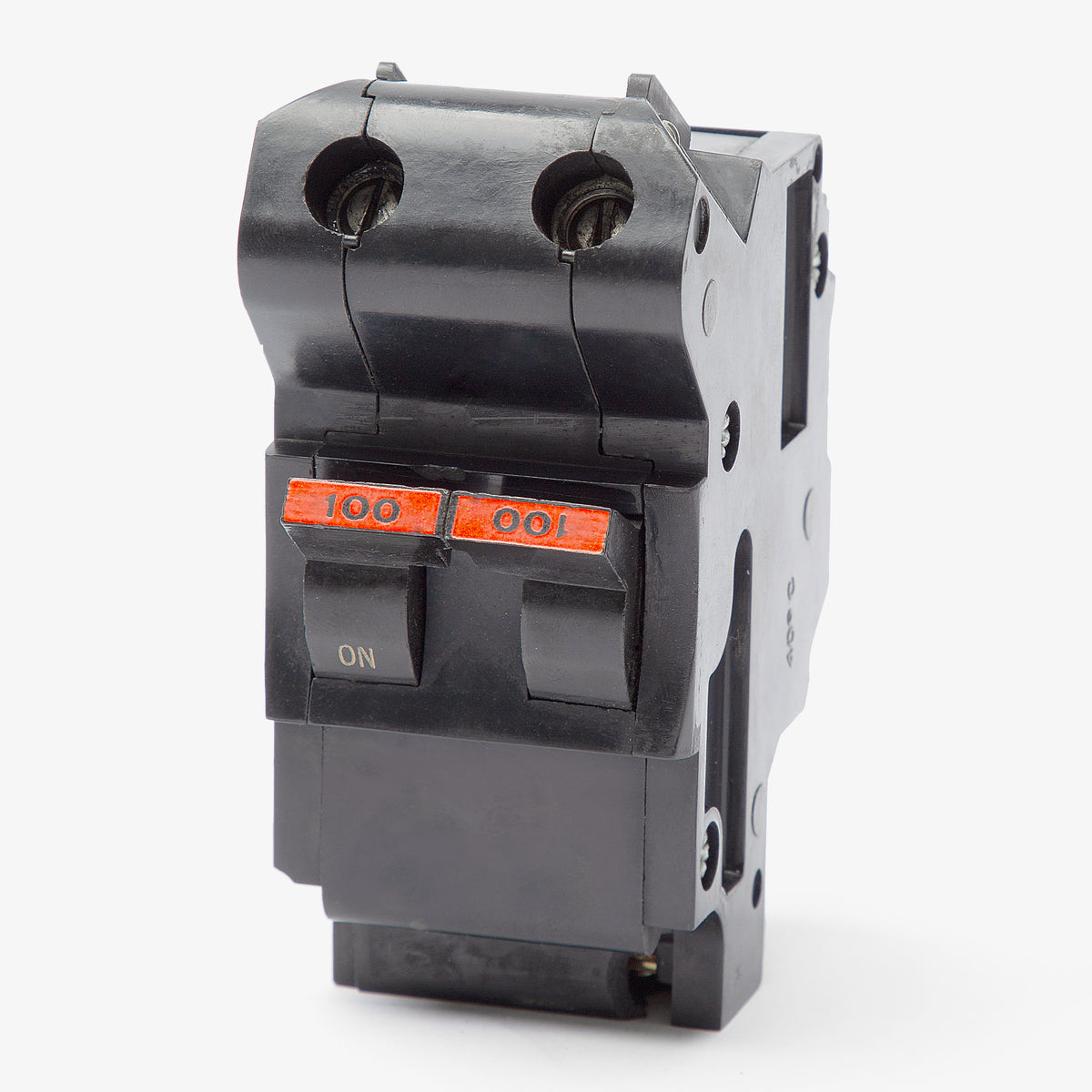

Federal Pacific UBIF2100 N - 100A 2 Pole Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Federal Pacific
UBIF2100
N - 100A 2 Pole Miniature Circuit Breaker
Brand
Federal Pacific
SKU
UBIF2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

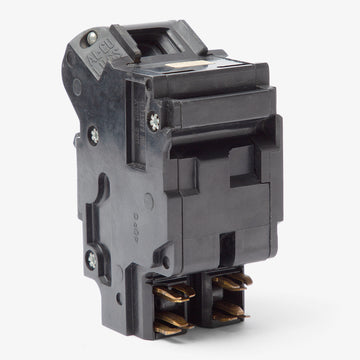

Federal Pacific UBIF2100N - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items

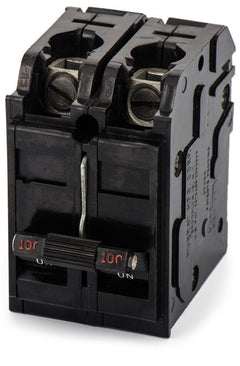

Siemens / MurrayMP2100W. SCREW
MP2100 - 100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Manufactured to restore power in older residential and commercial systems, this 100A two-pole component provides reliable thermal-magnetic protection. It serves as a crucial maintenance part for aging electrical infrastructure requiring specific form factors. Compatibility is strictly limited to classic Federal Pacific Stab-Lok load centers. It serves as an exact substitute for the obsolete NA2100, ensuring a proper fit without requiring aftermarket adapters or panel modifications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | UBIF2100 |
| Series | UBIF |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

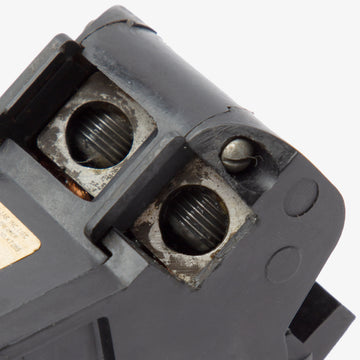

| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | HACR, UL 489 |
|---|---|
| Approval | ETL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
4 answersWhich original Federal Pacific catalog number does the UBIF2100 replace?
The UBIF2100 (also cataloged as UBIF2100N) is a direct cross-reference for the original Federal Pacific Electric NA2100. It is manufactured by Connecticut Electric to match the physical dimensions and Stab-Lok mounting interface of the legacy NA "thick" series.
Are UBIF replacement breakers safe to install in existing Federal Pacific panels?
Yes. While original FPE Stab-Lok breakers are known for failure-to-trip issues, the UBIF2100 is a modern replacement manufactured by Connecticut Electric. It is ETL listed to UL Standard 489, ensuring it meets current safety and performance standards for thermal-magnetic protection.
How much panel space is required to install the UBIF2100?
This is an NA-type "thick" breaker, meaning it requires two full 1-inch spaces (2 inches total width) on the busbar. It cannot be installed in panel slots restricted to NC-type "thin" half-inch breakers.
Is the UBIF2100 compatible with other brands of load centers?

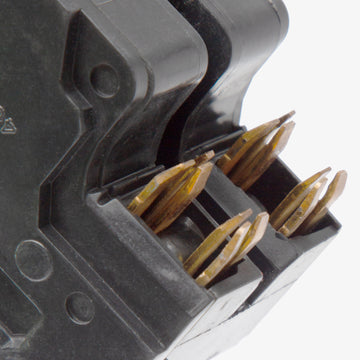

No. The UBIF2100 features a specialized Stab-Lok plug-on clip designed exclusively for Federal Pacific Electric (FPE) load centers. It will not fit Zinsco, Pushmatic, or standard interchangeable plug-on panels.
