Federal Pacific NJL631225R Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Federal Pacific
NJL631225R
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL631225R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

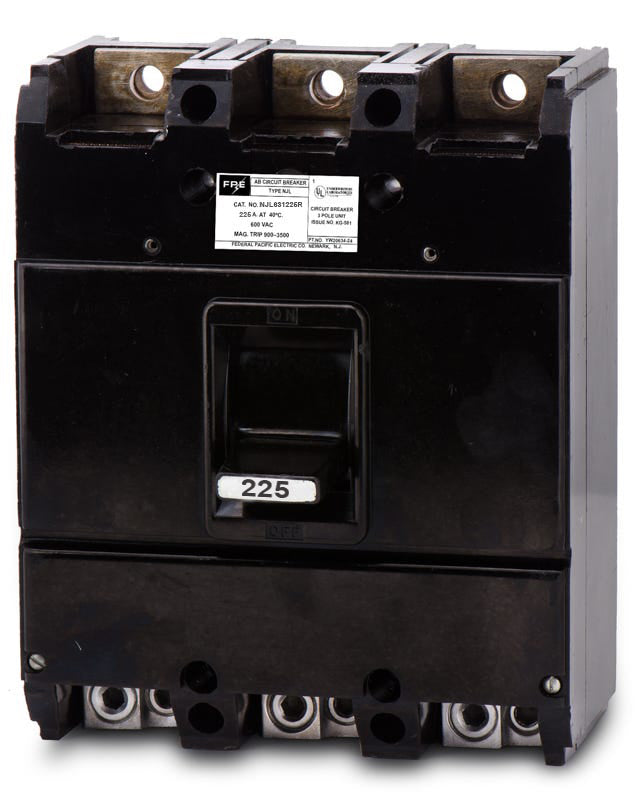

Federal Pacific NJL631225R - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Restoring power to legacy systems is seamless with the Federal Pacific NJL631225R. This 3-pole, 225A molded case circuit breaker features a built-in rotary handle, designed specifically for FPE motor control centers and industrial switchboards. Rated at 30kAIC at 480VAC, it provides dependable long-time and instantaneous (LI) thermal-magnetic protection. As an exact replacement for discontinued N-frame breakers, it ensures exact panel compatibility without requiring modifications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL631225R-R |
| Series | NJL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Motor Control Centers, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Rotary Handle |
Product FAQs
5 answersWhat equipment is the Federal Pacific NJL631225R designed to fit?
This N-frame molded case circuit breaker is an exact replacement for legacy Federal Pacific motor control centers and industrial switchboards. It installs directly into existing enclosures without requiring aftermarket adapters or panel modifications.
What does the R suffix indicate in the NJL631225R part number?
The R signifies that this specific breaker model features a built-in rotary handle mechanism. This handle configuration is typically required for proper operation and external actuation within Federal Pacific motor control center buckets.
What conductor sizes are accepted by the factory lugs on the NJL631225R?
The standard load-side lugs on this breaker accommodate wire gauges ranging from 6 AWG up to 350 kcmil. Always verify proper torque specifications during installation to ensure a secure and compliant connection.
Does the NJL631225R share the same design as residential Stab-Lok breakers?
No. The NJL631225R is a commercial and industrial N-frame molded case circuit breaker designed for heavy-duty switchboards and motor control centers. It operates on a completely different platform and does not use the residential Stab-Lok design.
Can the trip settings on the NJL631225R be adjusted in the field?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous overcurrent protection thresholds are permanently set at the factory and cannot be modified during installation.
