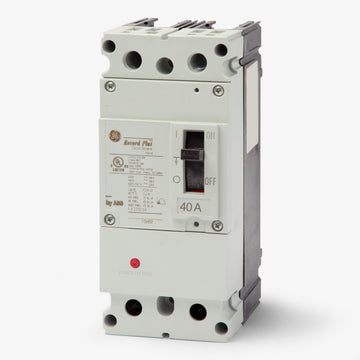

ABB / General Electric FBN26TE040RV Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
FBN26TE040RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN26TE040RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN26TE040RV - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN26TE035RV
35A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE050RV
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE030RV
30A 2 Pole Molded Case Circuit Breaker
Description
Part of the Record Plus family, this 40-amp molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial applications. It features a current-limiting, double-break rotary contact structure to minimize arc flash energy. Installs into GE A-Series panelboards via a secure bolt-on connection. This unit serves as a drop-in replacement for discontinued TED124040 breakers, ensuring continued operation of existing infrastructure. Rated for 150 kAIC at 240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN26TE040RV |
| Series | FBN |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, Double-Break Rotary Contact Structure, HACR Rated, HID Rated, Naval Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the FBN26TE040RV circuit breaker?
This breaker is designed specifically for installation in GE A-Series panelboards. The RV suffix in the catalog number indicates it includes load lugs and line connections tailored for these specific panels.
Does this breaker include both line and load lugs?
The RV suffix means it comes with load lugs installed. The line side features bolt-on connections specifically designed for mounting directly to the bus of GE A-Series panelboards rather than standard line lugs.
What does the N in the FBN26TE040RV catalog number signify?
The N indicates the normal interrupting capacity tier for the Record Plus FB 100 frame. This provides a 65kAIC rating at 480VAC and a 150kAIC rating at 240VAC.
What wire sizes and materials are accepted by the lugs on this breaker?
The load side lugs accept 10 AWG to 4 AWG copper or aluminum wire.
Are the thermal and magnetic trip settings adjustable on the FBN26TE040RV?
No, this breaker features fixed long-time thermal and fixed instantaneous magnetic trip functions. They cannot be adjusted in the field.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Record Plus circuit breakers like the FBN26TE040RV may be branded as either ABB or General Electric depending on the manufacturing date, but they are the exact same component.
