ABB / General Electric FBN26TE090RV Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
ABB / General Electric
FBN26TE090RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN26TE090RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

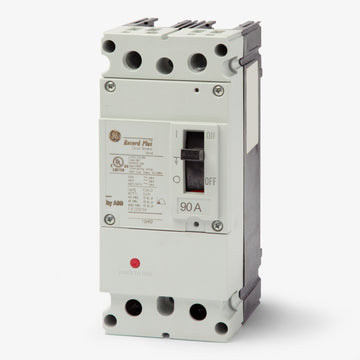

ABB / General Electric FBN26TE090RV - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN26TE070RV
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE060RV
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE050RV
50A 2 Pole Molded Case Circuit Breaker
Description
Part of the GE Record Plus family, this 90A, two-pole MCCB delivers robust thermal-magnetic protection for commercial facilities. The FBN frame utilizes a double-break rotary contact structure for exceptional current-limiting performance. Designed for bolt-on installation, it fits into GE Type AD and A-Series panelboards. This unit serves as a reliable replacement for legacy TED124090 breakers. Rated 65kAIC at 480VAC, it handles demanding fault conditions and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN26TE090RV |
| Series | FBN |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line Side Panel Connectors, Load Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
6 answersHow does the FBN26TE090RV install into the panelboard?
It features a bolt-on connection for secure mounting directly to the busbars of compatible GE A-Series and Type AD panelboards.
Are the load lugs included with the FBN26TE090RV?
Yes, the breaker comes with factory-installed load side lugs that accept 4 AWG to 1/0 AWG copper or aluminum wire.
Is the ABB FBN26TE090RV the same as the GE FBN26TE090RV?
Yes. Following ABB's acquisition of GE Industrial Solutions, the Record Plus series is now manufactured under the ABB brand using the exact same FBN26TE090RV catalog number and specifications.
What does the LI trip function indicate on the FBN26TE090RV?
The LI designation means this thermal-magnetic breaker provides Long-Time (thermal) protection against overloads and Instantaneous (magnetic) protection against short circuits. Both trip settings are fixed on this model.
Can the FBN26TE090RV be used to replace older GE TED series breakers?
Yes, the Record Plus FB100 frame serves as a modern replacement for legacy GE TED2, TED4, and TED6 circuit breakers in compatible A-Series and Type AD panelboards.
Is the FBN26TE090RV a current-limiting circuit breaker?
Yes, the Record Plus FB frame utilizes a double-break rotary contact structure that provides exceptional current-limiting performance during fault conditions.
