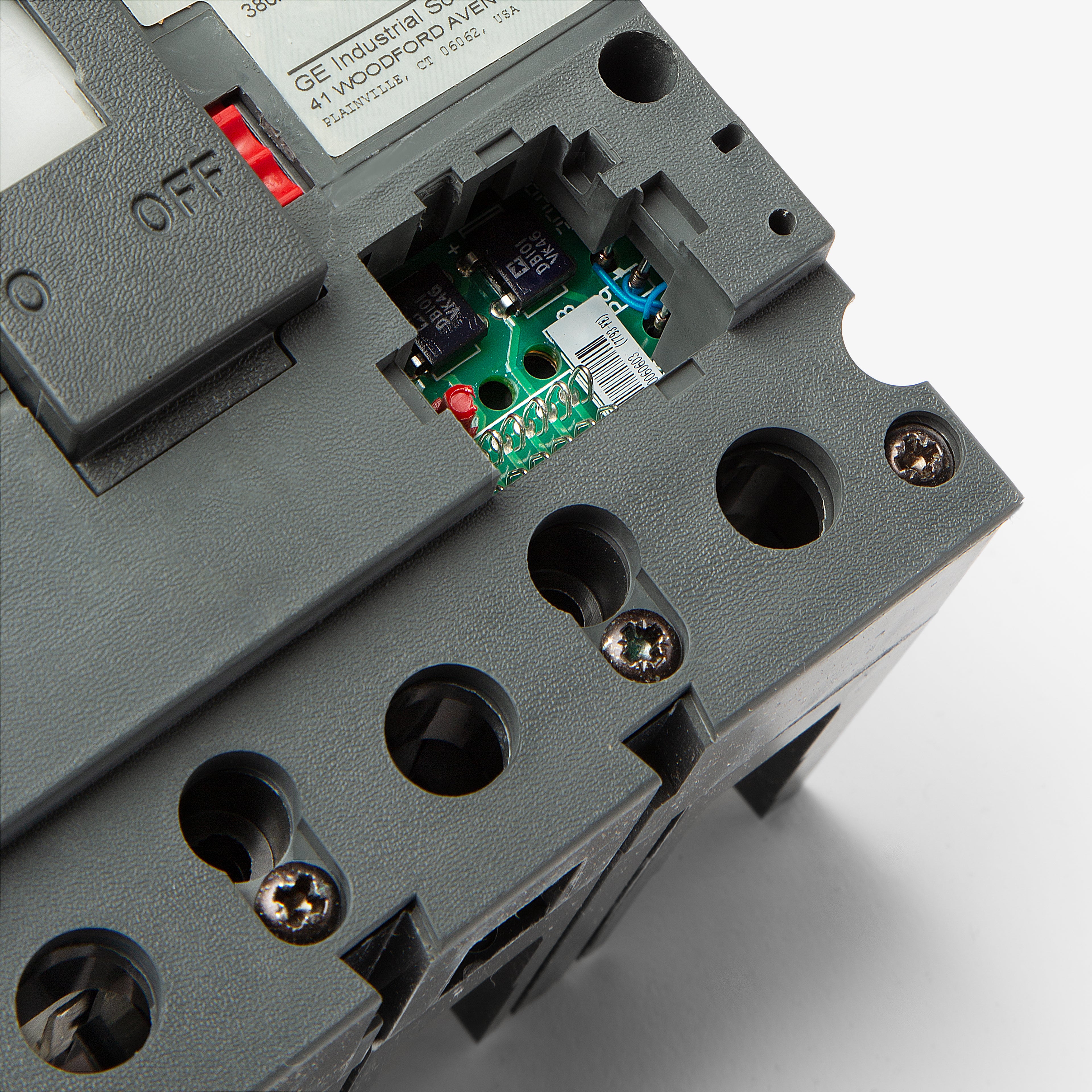

ABB / General Electric SEHA36AT0100 Circuit Breaker Frame

ABB / General Electric SEHA36AT0100
Circuit Breaker Frame
Brand ABB / General Electric
SKU SEHA36AT0100
Select Item Condition
Earn 849 SuperPoints

Quantity

Core Specs

See full specs
Amperage100A
SeriesSEHA
Bulk Pricing
Send your parts list for a volume quote.
General Electric SEHA36AT0100 Frame

ABB / General Electric SEHA36AT0100 - 100A Circuit Breaker Frame

New

$849.80 In Stock

Quantity

Description

Built as a circuit breaker frame, the General Electric SEHA36AT0100 belongs to the SEHA series. It has a rating of 100A and a voltage rating of 600VAC. The frame measures 4.12 in wide, 6.31 in high and 3.38 in long. It carries CSA and UL approvals.

Specifications

Key specifications
Voltage 600VAC
Series SEHA
Electrical ratings
Amperage 100A
Standards and features
Approval CSA, UL
Product details
Brand ABB / General Electric
MPN SEHA36AT0100
UPC 783164211443

Product FAQs

4 answers
What does the 100A rating mean for selection?

The General Electric SEHA36AT0100 is a circuit breaker frame rated 100A. Use the rating to select the current class required by your circuit design, while coordinating overcurrent protection with the load and conductor requirements.

How does the 600VAC rating guide voltage selection?

The frame is rated 600VAC. Select it for an AC application with an operating voltage at or below that rating.

Does this frame carry UL and CSA approvals?

The frame carries UL and CSA approvals. These approvals guide selection when your project's electrical equipment requirements call for UL or CSA certification.

What dimensions should I use when planning the installation layout?

Allow for a width of 4.12 in, a length of 3.38 in and a height of 6.31 in when planning space for the frame. Use these dimensions to lay out its physical footprint before installation.
