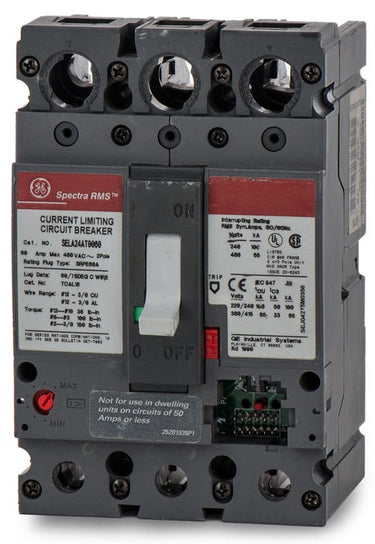

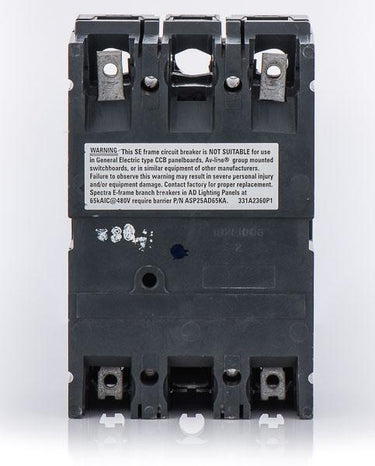

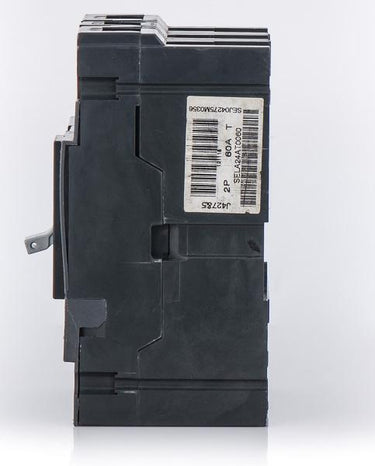

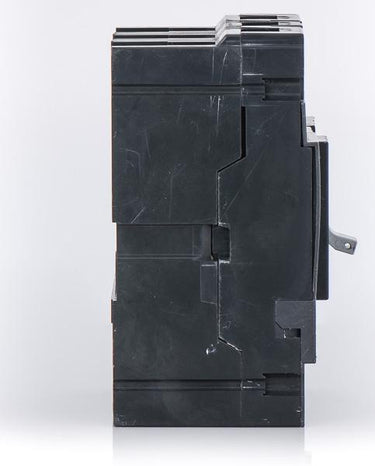

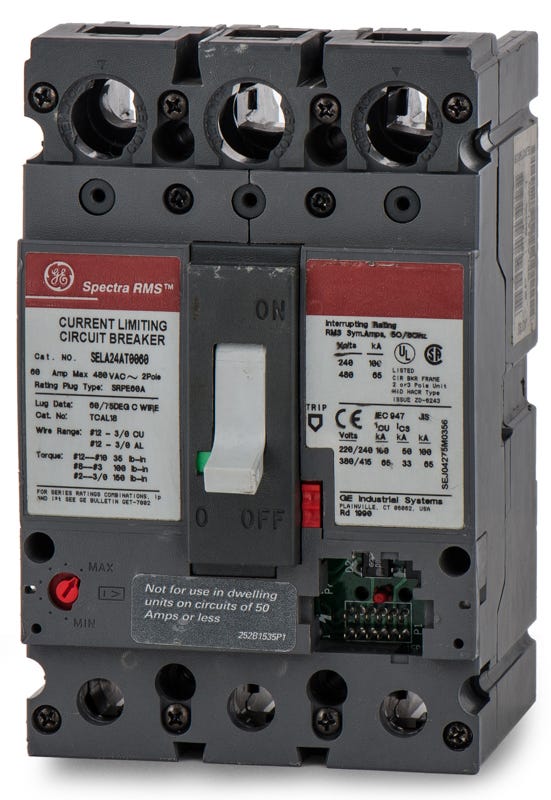

ABB / General Electric SELA24AT0060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Quantity
ABB / General Electric SELA24AT0060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric SELA24AT0060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SELA24AT0060-R |
| Series | SELA |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 208Y/120VAC, 240VAC, 277VAC, 480Y/277VAC, 480VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Rating Plug (Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, HID Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit |
Quantity
ABB / General Electric SELA24AT0060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SELA24AT0060-R |
| Series | SELA |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 208Y/120VAC, 240VAC, 277VAC, 480Y/277VAC, 480VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Rating Plug (Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, HID Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit |
Description
A robust solution for commercial facilities, the SELA24AT0060 handles 60A of current within a compact SE-frame footprint. It is engineered to fit into Spectra Series panelboards, switchboards, and motor control centers. This breaker stands out with its solid-state LSI trip unit, allowing precise adjustments for long-time, short-time, and instantaneous protection. Delivering 65 kAIC at 480VAC, it ensures exceptional current-limiting performance and system coordination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SELA24AT0060-R |
| Series | SELA |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 208Y/120VAC, 240VAC, 277VAC, 480Y/277VAC, 480VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Rating Plug (Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, HID Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
6 answersDoes the SELA24AT0060 require a rating plug to operate?
Yes. Like all GE Spectra RMS circuit breakers, the SELA24AT0060 requires a front-mounted, field-installable rating plug to establish its continuous ampere rating. For a 60A rating, you will need an SRPE60A60 plug. The rating plug must be installed for the breaker to function properly.
What does the LSI designation mean on this solid-state trip unit?
LSI stands for Long-Time, Short-Time, and Instantaneous protection. This electronic trip unit allows electricians to adjust the trip curve for precise overload protection and selective coordination with downstream breakers, offering more flexibility than standard thermal-magnetic units.
Is the GE Spectra RMS SELA24AT0060 still in active production?
The GE Spectra RMS series is a legacy product line. Following ABB acquiring GE Industrial Solutions, the Spectra series was phased out and replaced by the ABB Tmax XT series. However, legacy frames like the SELA24AT0060 are still sourced for direct replacements in existing GE infrastructure.
Can the SELA24AT0060 be reverse fed?
Yes. GE Spectra RMS circuit breakers, including this SE frame model, do not have line and load restrictions and are suitable for reverse feed applications.
How are internal accessories installed on this SE frame breaker?
The Spectra RMS SE frame accepts a full range of field-installable internal accessories, such as shunt trips, undervoltage releases, bell alarms, and auxiliary switches. These drop into front-mounted accessory pockets and install in minutes without needing to remove the main breaker cover.
What equipment is this breaker designed to fit?
The SELA24AT0060 is an SE frame breaker engineered specifically for GE Spectra Series panelboards, switchboards, and motor control centers. If you are upgrading to the newer ABB Tmax XT series, a specific retrofit kit is required to fit the existing Spectra bus.
