ABB / General Electric SGHC3601L3XX Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Quantity

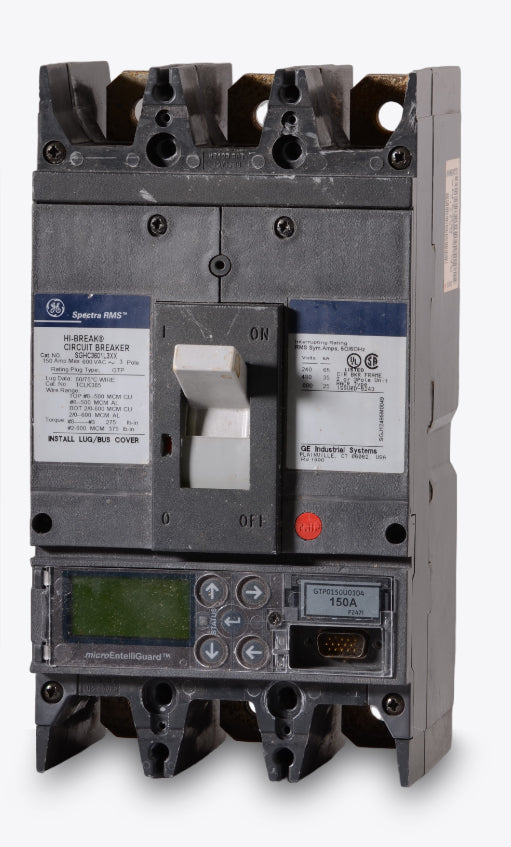

ABB / General Electric SGHC3601L3XX - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric SGHC3601L3XX - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGHC3601L3XX |
| Series | SGHC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 75-150A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Requires Lug Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | -20C to 55C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Interchangeable Trip Unit, Visual Trip Indicator, True RMS Sensing |
Quantity
ABB / General Electric SGHC3601L3XX - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | SGHC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 75-150A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Requires Lug Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | -20C to 55C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Interchangeable Trip Unit, Visual Trip Indicator, True RMS Sensing |
Description
Engineered for commercial and industrial power systems, this 150-amp electronic trip breaker delivers reliable overcurrent protection. It mounts into GE Spectra Series panelboards, switchboards, and motor control centers. When maintenance requires an upgrade, it can be replaced by the ABB XT5N 250 LSI using a retrofit kit. The interchangeable trip unit provides adjustable long-time, short-time, and instantaneous settings. It features true RMS sensing and handles up to 600VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGHC3601L3XX |
| Series | SGHC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 75-150A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Requires Lug Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | -20C to 55C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Interchangeable Trip Unit, Visual Trip Indicator, True RMS Sensing |
Product FAQs
7 answersWhat enclosures are compatible with the SGHC3601L3XX circuit breaker?
This bolt-on breaker is designed for installation in GE Spectra Series panelboards, switchboards, and motor control centers.
What is the modern replacement for the GE SGHC3601L3XX?
When upgrading or replacing this unit, it can be substituted with the ABB XT5N 250 LSI circuit breaker by utilizing a compatible retrofit kit.
What do the LSI trip functions on this breaker indicate?
The LSI designation means the electronic trip unit provides adjustable protection settings for Long-Time, Short-Time, and Instantaneous overcurrent events.
Can the SGHC3601L3XX be reverse fed?
Yes, this solid-state molded case circuit breaker is suitable for reverse-fed applications in industrial and commercial power systems.
Why might my SGHC3601L3XX breaker arrive with an ABB label instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this exact breaker may be branded as either ABB or General Electric, but the form, fit, and function remain identical.
What type of trip technology does the SGHC3601L3XX utilize?
It features a solid-state electronic trip unit that provides true RMS sensing for highly accurate overcurrent protection.
What frame group does the SGHC3601L3XX belong to?
This breaker is part of the GE Spectra RMS SG frame group. Like all Spectra RMS breakers, it utilizes interchangeable rating plugs to establish or change the continuous ampere rating.
