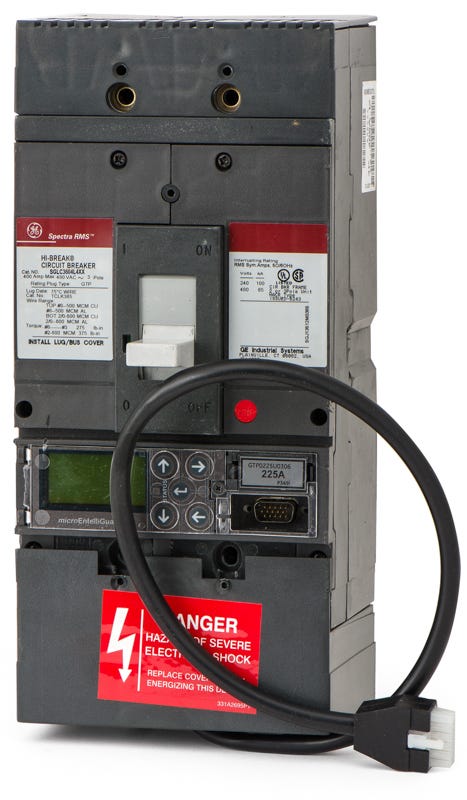

ABB / General Electric SGLC3604L4XX Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
ABB / General Electric
SGLC3604L4XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLC3604L4XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLC3604L4XX - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLC3604L7XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLA36AT0400
400A 3 Pole Molded Case Circuit Breaker Frame Only
ABB / General ElectricSGLB36BB0400
400A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty industrial applications, the GE SGLC3604L4XX delivers reliable circuit protection with its advanced microEntelliGuard trip unit. This 3-pole, 400A molded case circuit breaker provides fully adjustable Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) functions. Designed as a unit mount MCCB, it integrates into GE Spectra Series panelboards and switchboards. Rated at 65kAIC at 480V, this SG frame breaker features true RMS sensing and reverse feed capability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLC3604L4XX |
| Series | SGLC |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 200-400A |
|---|
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit |
|---|---|
| Accessories | Rating Plug Included, Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug |
Product FAQs
5 answersWhat types of enclosures support the SGLC3604L4XX circuit breaker?
This device is designed for use with GE Spectra Series panelboards, switchboards, and motor control centers. It is configured for unit mount installations and bolts directly to the equipment bus.
What wire sizes and materials are supported by the lugs on this unit?
The factory lugs accept two conductors per phase ranging from 2/0 AWG to 500 kcmil. They are rated for use with either copper or aluminum wiring.
What protection features are included in the electronic trip unit?
The solid state trip unit features adjustable LSIG protection, which includes Long-Time, Short-Time, Instantaneous, and Ground-Fault functions. This allows for precise selective coordination with other devices in the electrical distribution system.
Why is this breaker associated with both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, components from the GE Spectra RMS series, including this SG frame breaker, may display branding, packaging, or labeling from either manufacturer depending on the exact production date.
What safety procedures are required when modifying the trip settings?
Adjustments to the solid state trip parameters should only be performed by licensed professionals. The settings must align with an engineered coordination study to prevent nuisance tripping and ensure adequate arc flash protection.
