ABB / General Electric SGPA36AT0400 - 400A 3 Pole Molded Case Circuit Breaker

New

$4095.85 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

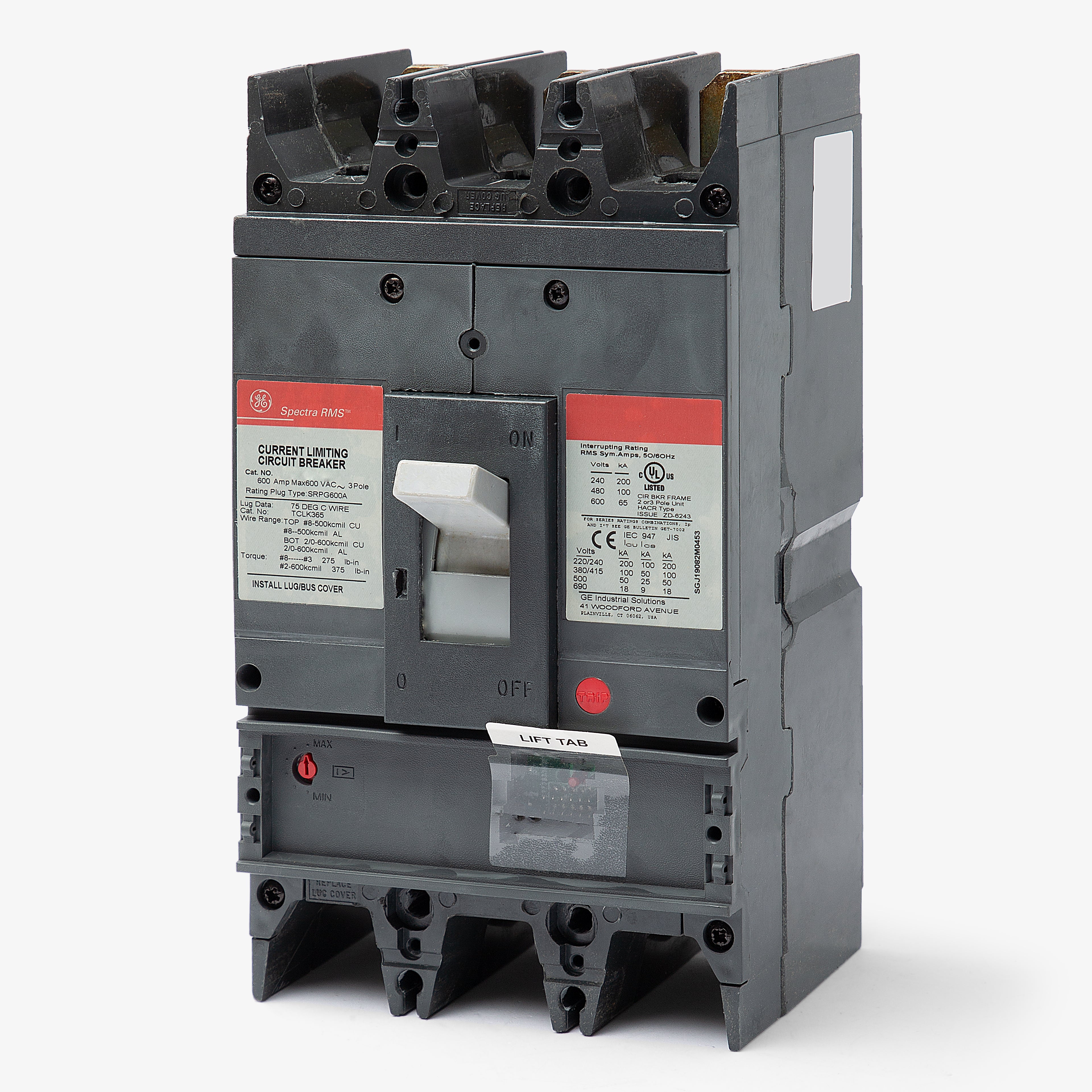

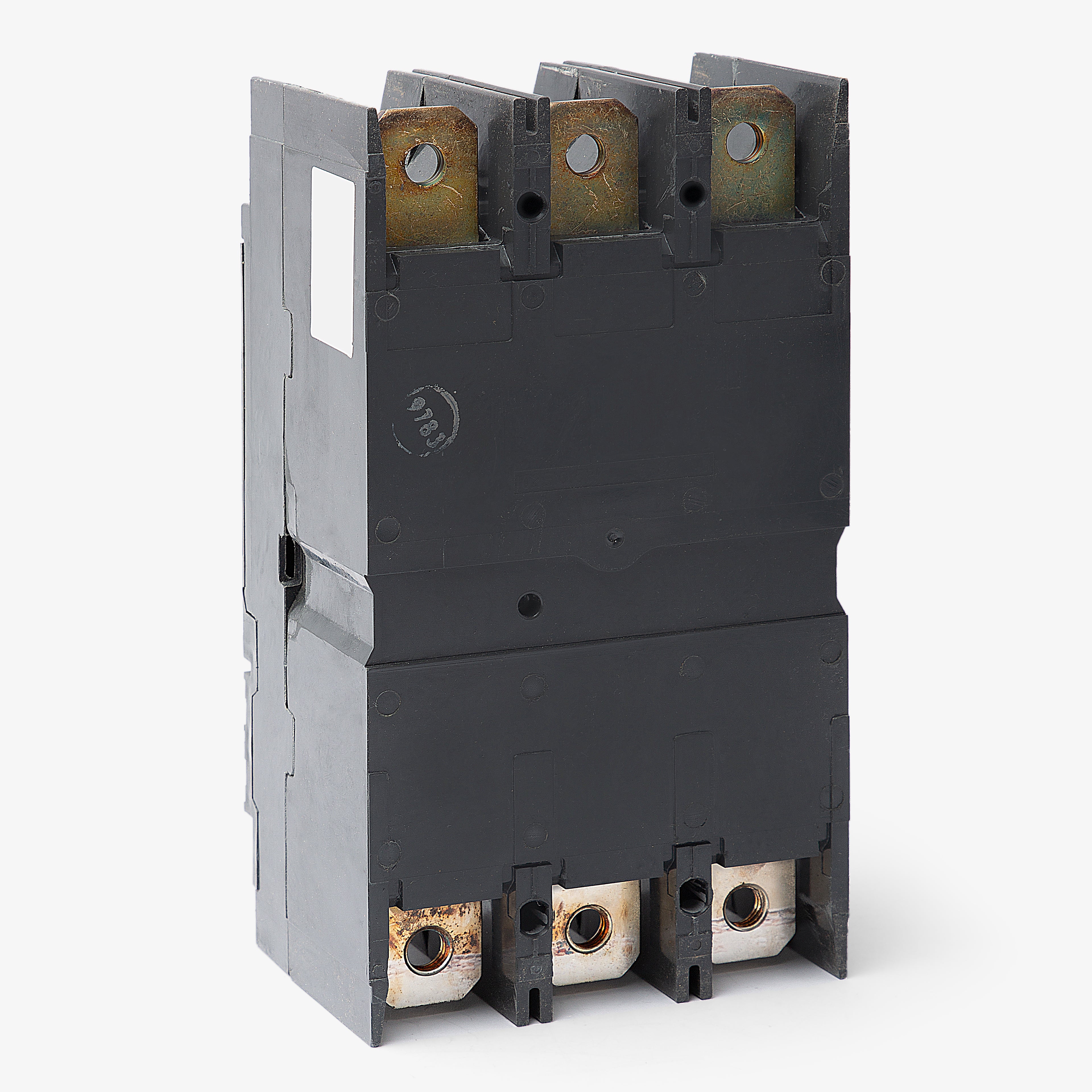

Built for maximum fault clearing, the SGPA36AT0400 is a 400A, 3-pole molded case circuit breaker from GE. It is designed to install into Spectra Series panelboards and switchboards for commercial and industrial applications. This breaker utilizes a solid-state electronic trip unit with adjustable LSI functions and tracking short-time protection. With a high 100kAIC rating at 480VAC and true RMS sensing, it ensures precise coordination. Note that an interchangeable rating plug is required.

Specifications

Brand ABB / General Electric
Series SGPA
Part Number SGPA36AT0400
Amperage 400A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC
Mounting Style Unit Mount

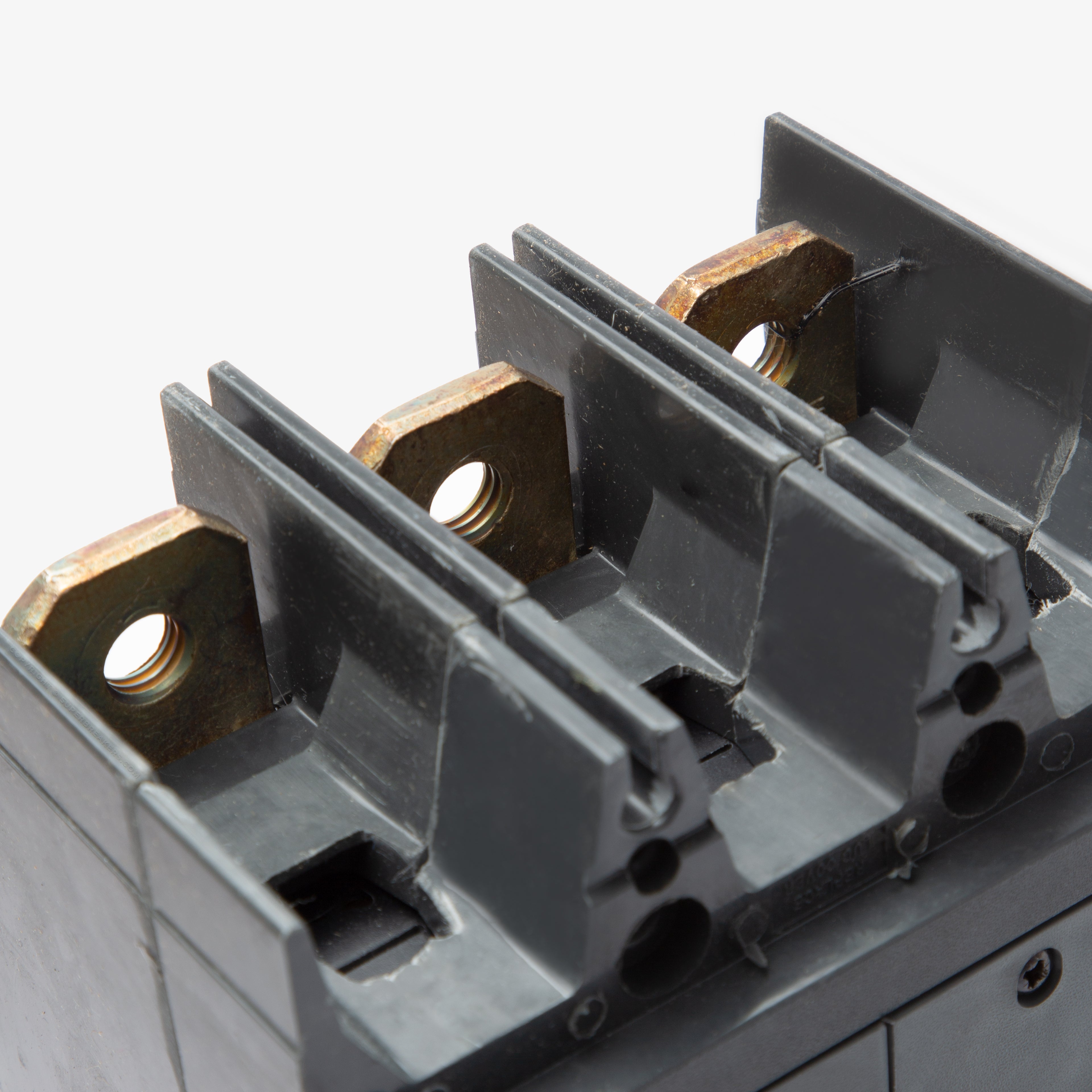

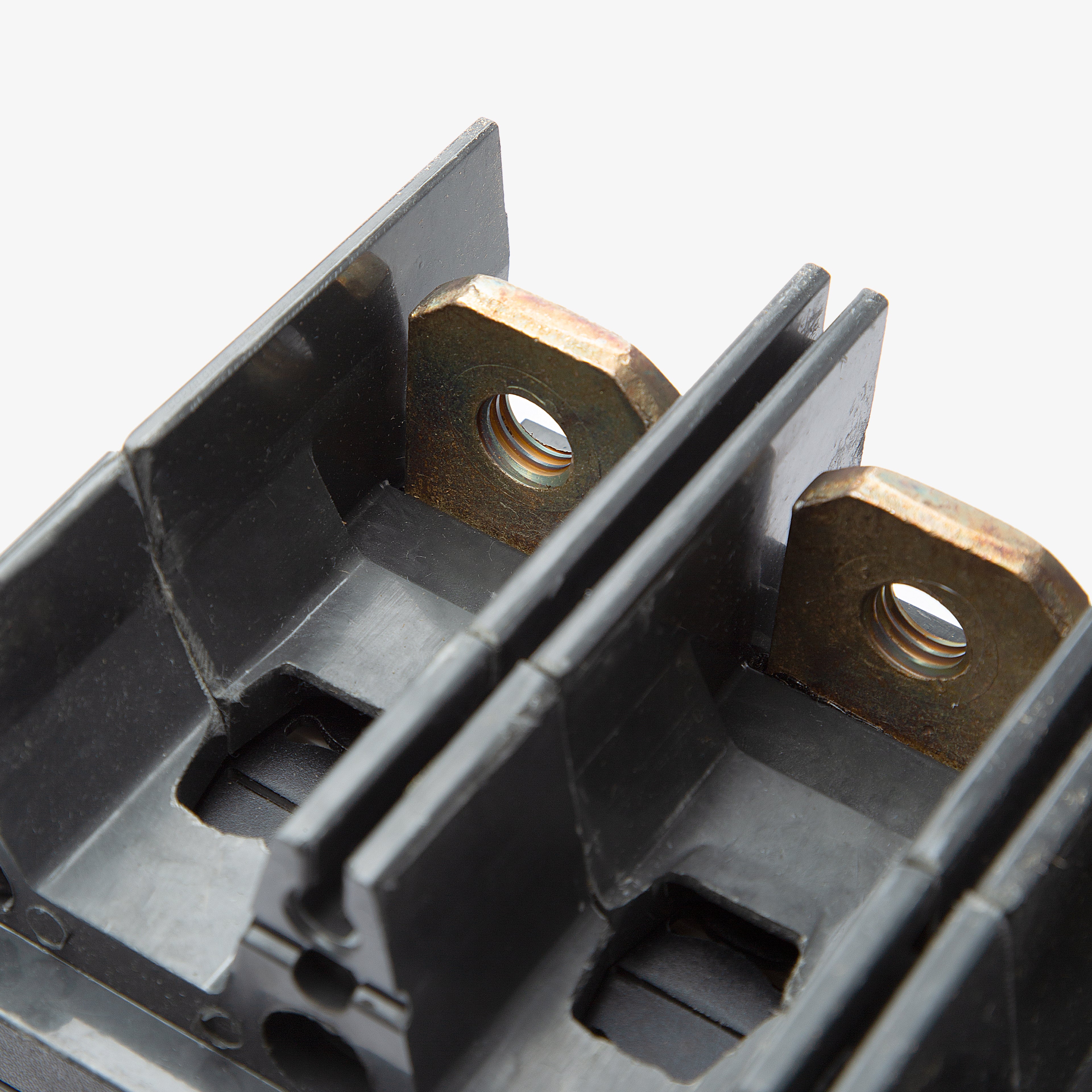

Terminal Type Lugs
For Use With GE Spectra Panelboards, Switchboards
Trip Technology Electronic Trip
Trip Function Code LSI
Trip Function Long-Time, Short-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge (1) 8 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 500 kcmil (Cu/Al)
Max Wire 600 kcmil (1 conductor) or 500 kcmil (2 conductors)
Min Wire 8 AWG (1 conductor) or 2/0 AWG (2 conductors)
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Lug Kits
Accessories Lugs (Sold Separately), Rating Plug (Sold Separately)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug
