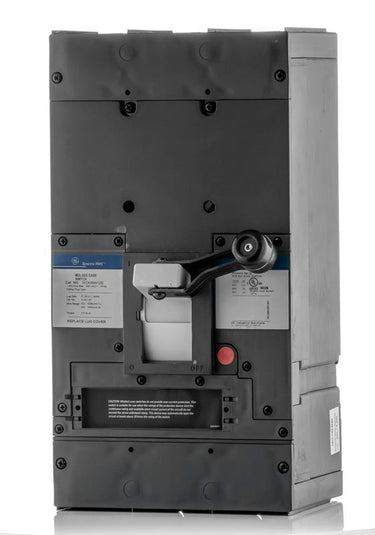

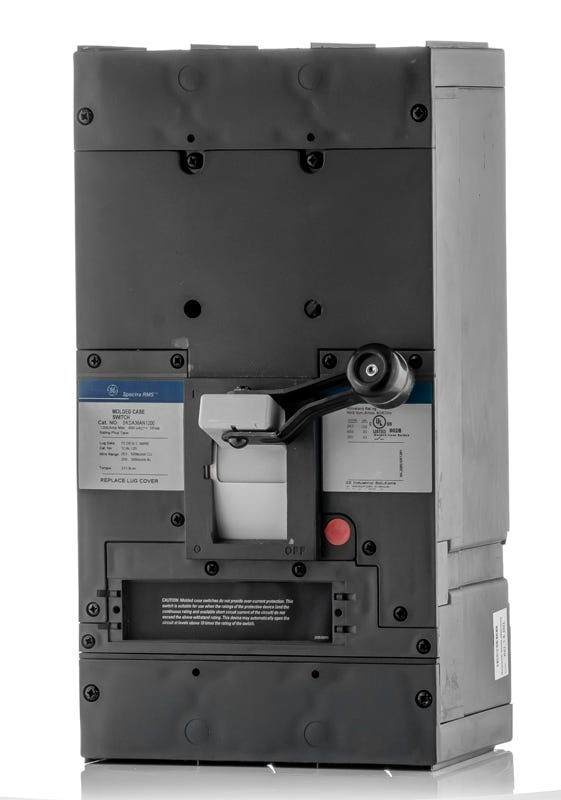

ABB / General Electric SKDA36AN1200 Molded Case Switch
Quantity
Core Specs
See full specs
ABB / General Electric SKDA36AN1200 - 1200A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
ABB / General Electric SKDA36AN1200 - 1200A 3 Pole Molded Case Switch
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKDA36AN1200 |
| Series | SKDA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Frame Type | SKDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers, Power Panels, Spectra Bolt-On Panelboards |
| Wire Gauge | (4) 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
ABB / General Electric SKDA36AN1200 - 1200A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKDA36AN1200-R |
| Series | SKDA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Frame Type | SKDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers, Power Panels, Spectra Bolt-On Panelboards |
| Wire Gauge | (4) 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Description
Functioning as a high-capacity disconnect, the GE SKDA36AN1200 is a 3-pole, 1200A molded case switch. It provides reliable manual switching for demanding commercial environments. The switch mounts into GE Spectra Series switchboards and bolt-on panelboards. Facilities upgrading can replace this legacy unit with the XT7H-D 1200 MCS when paired with the SRFB3XT7MFPX retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKDA36AN1200-R |
| Series | SKDA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 42kA @ 600VAC |
| Frame Type | SKDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Spectra Series Switchboards, Motor Control Centers, Power Panels, Spectra Bolt-On Panelboards |
| Wire Gauge | (4) 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
